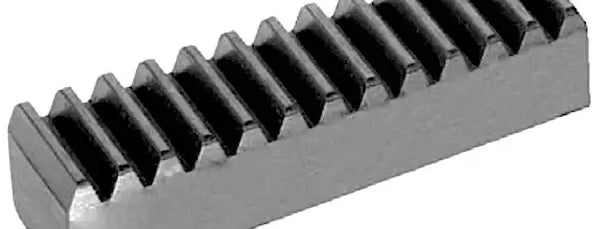

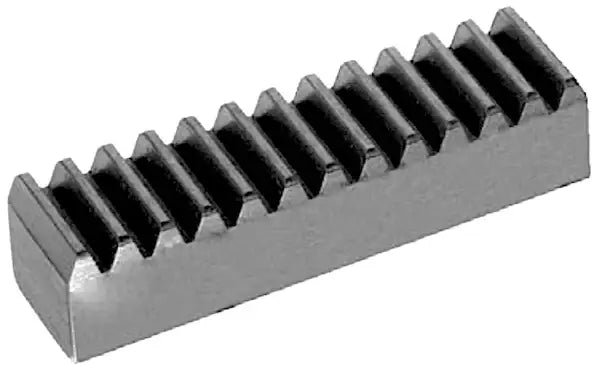

Module 2 Gear Rack Mounting Aid (20X20X80) 16MnCr5 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 241-680-00-AID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2 Gear Rack Mounting Aid (20X20X80) 16MnCr5 Material Features
Module 2 Gear Rack Mounting Aid (20X20X80) 16MnCr5 Material Specifications
The module 2 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality 16MnCr5 steel material with a 7h25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 2 Gear Rack Mounting Aid Dimensions
- Part #: 24168000
- Module: 2
- Pitch: 6.28mm
- Dimension (b): 20mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L): 80mm
- Material: 16MnCr5
- Weight: 0.207KG
- Part #: 24168000
- Module: 2
- Pitch: 6.28mm
- Dimension (b): 20mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L): 80mm
- Material: 16MnCr5
- Weight: 0.207KG
