Power Transmission > Gears and Gear Racks > Gear Rack Installation Mounting Aid

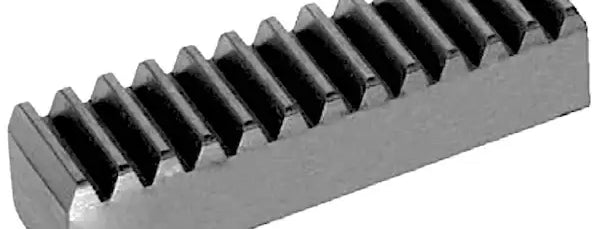

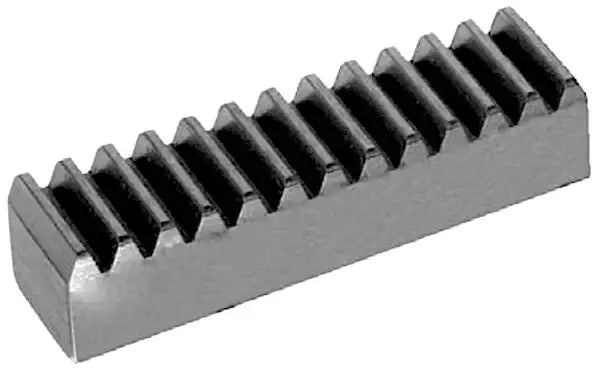

Module 2 Gear Rack Mounting Aid (16X20X80) C45K Material
Note:
Custom Cut to Length Chain Also Available
SKU: 241-600-00-AID
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2 Gear Rack Mounting Aid (16X20X80) C45K Material Features
Module 2 Gear Rack Mounting Aid (16X20X80) C45K Material Specifications
The module 2 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality C45K carbon steel material with an 8d25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 2 Gear Rack Mounting Aid Dimensions
- Part #: 24160000
- Module: 2
- Pitch: 6.28mm
- Dimension (b): 16mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L):80 mm
- Material: C45K
- Weight: 0.180KG
- Part #: 24160000
- Module: 2
- Pitch: 6.28mm
- Dimension (b): 16mm
- Dimension (H): 20mm
- Dimension (h): 18.0mm
- Length (L):80 mm
- Material: C45K
- Weight: 0.180KG
