22X86 Double Shackle | Round Link Double Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 22X86-DBL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
22X86 Double Shackle | Round Link Double Bolt Shackle Features
22X86 Double Shackle | Round Link Double Bolt Shackle Specifications
Our 22X86 double bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific double bolt shackle is particularly made for a 22X86 round link chain and has two bolt holes of 0.63". It is important to note that when installing a 22X86 double bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 22X86 double bolt shackles, contact our customer support team, and we will gladly assist you!

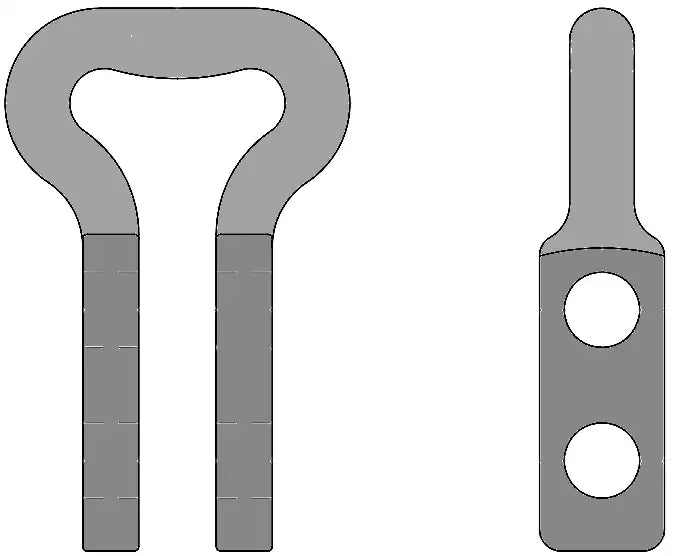

22X86 double Bolt Shackle Dimensions
- Chain Size: 22X86
- Dimension (A-Bolt): 0.63"
- Dimension (B): 3.13"
- Dimension (C): 1.16"
- Dimension (D): 2.00"
- Dimension (E): 1.63"
- Weight: 4.60 LBS
- Chain Size: 22X86
- Dimension (A-Bolt): 0.63"
- Dimension (B): 3.13"
- Dimension (C): 1.16"
- Dimension (D): 2.00"
- Dimension (E): 1.63"
- Weight: 4.60 LBS
