22X86 Single Shackle | Round Link Single Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 22X86-SGL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
22X86 Single Shackle | Round Link Single Bolt Shackle Features
22X86 Single Shackle | Round Link Single Bolt Shackle Specifications
Our 22X86 single bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific single bolt shackle is particularly made for a 22X86 round link chain and has a bolt hole of 1.00". It is important to note that when installing a 22X86 single bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 22X86 single bolt shackles, contact our customer support team, and we will gladly assist you!

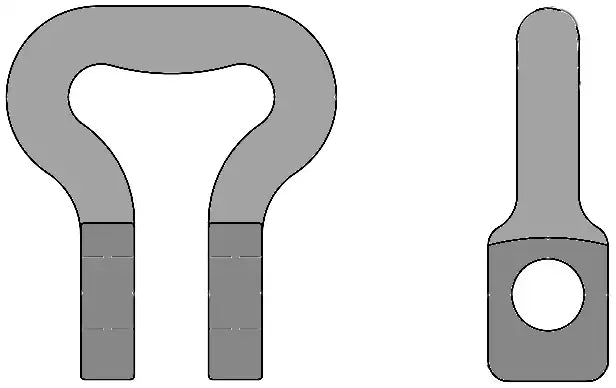

22X86 Single Bolt Shackle Dimensions
- Chain Size: 22X86
- Dimension (A-Bolt): 1.00"
- Dimension (B): 2.95"
- Dimension (C): 1.22"
- Dimension (D): 2.00"
- Weight: 3.60 LBS
- Chain Size: 22X86
- Dimension (A-Bolt): 1.00"
- Dimension (B): 2.95"
- Dimension (C): 1.22"
- Dimension (D): 2.00"
- Weight: 3.60 LBS
