Power Transmission > Bearings > Mounted Bearings > Insert Bearings
UK208-114 Insert Bearing | 1-1/4" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-208-114-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK208-114 Insert Bearing | 1-1/4" Tapered Adapter Insert Bearing Features
UK208-114 Insert Bearing | 1-1/4" Tapered Adapter Insert Bearing Specifications

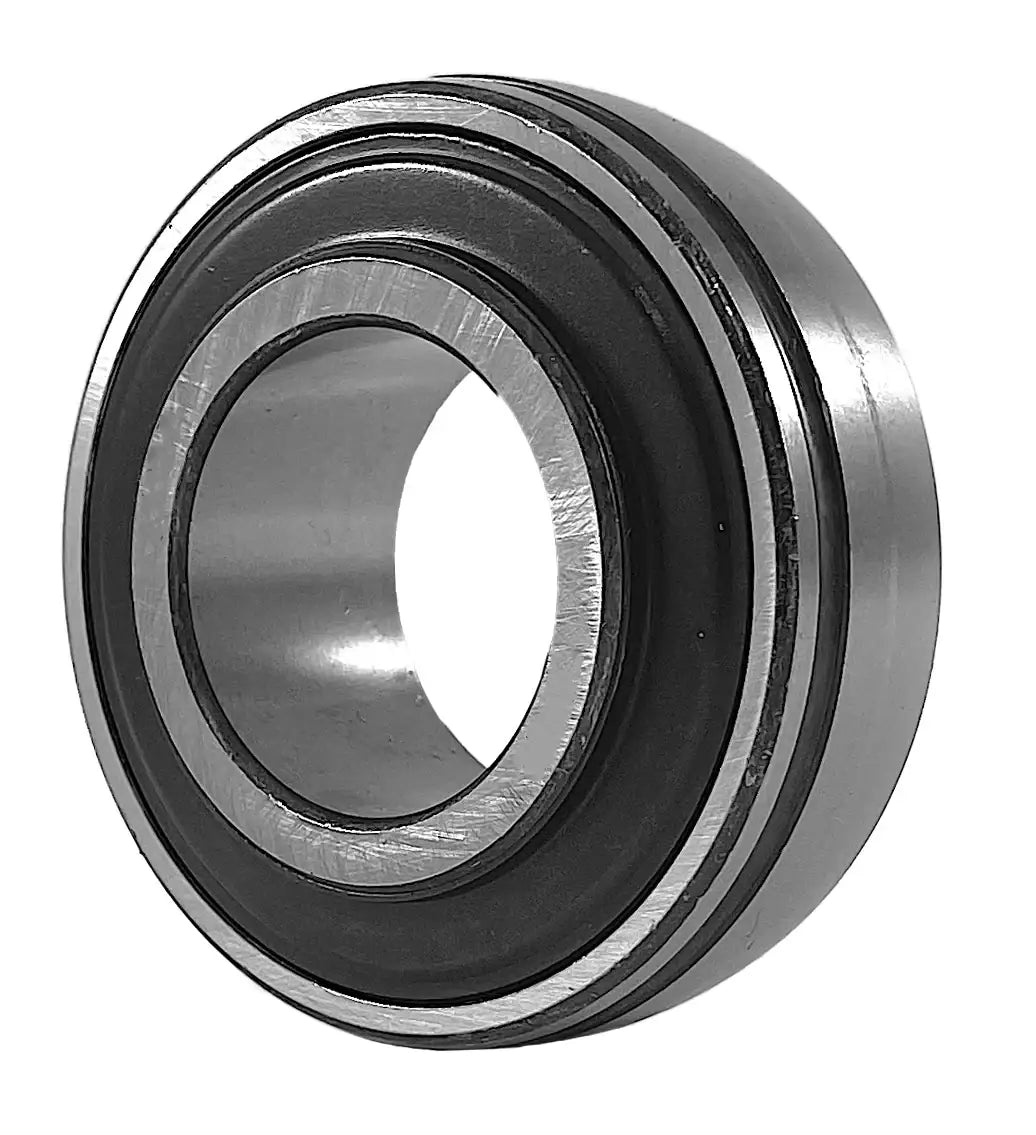

UK208-114 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 1-1/4" bore. Our UK208-114 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK208-114 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK208-114 bearings, contact our customer service and, we will be happy to assist you!
UK208-114 Bearing Dimensions
- Part #: UK 208
- Shaft Diameter (d):1-1/4 "
- Dimension (d): 1.5748"
- Dimension (D): 3.1496"
- Dimension (Bi): 1.1417"
- Dimension (Be): 0.8268"
- Dimension (T): 0.2441"
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Fits Housing Size: 209 / X08
- Weight (LBS): 1.4
- Part #: UK 208
- Shaft Diameter (d):1-1/4 "
- Dimension (d): 1.5748"
- Dimension (D): 3.1496"
- Dimension (Bi): 1.1417"
- Dimension (Be): 0.8268"
- Dimension (T): 0.2441"
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Fits Housing Size: 209 / X08
- Weight (LBS): 1.4
