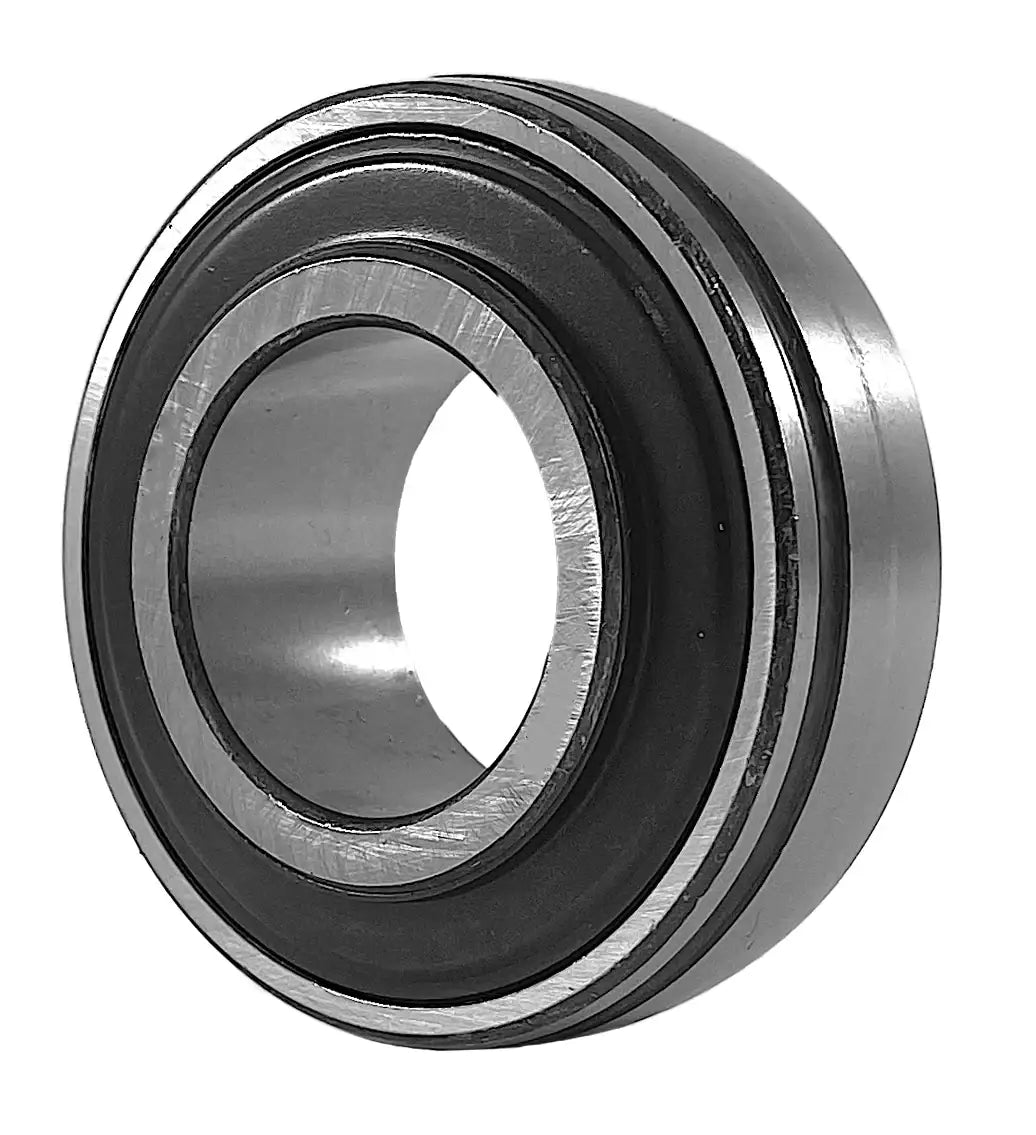

UK207-1316 Insert Bearing | 1-3/16" Tapered Adapter Insert Bearing

UK207-1316 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 1-3/16" bore. Our UK207-1316 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK207-1316 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK207-1316 bearings, contact our customer service and, we will be happy to assist you!

UK207-1316 Bearing Dimensions

• Part #: UK 207
• Shaft Diameter (d): 1-3/16"
• Dimension (d): 1.3780"
• Dimension (D): 2.8346"
• Dimension (Bi): 1.1024"
• Dimension (Be): 0.7874"
• Dimension (T): 0.2283"
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Fits Housing Size: 208 / X07
• Weight (LBS): 1.0
