Power Transmission > Bearings > Mounted Bearings > Insert Bearings

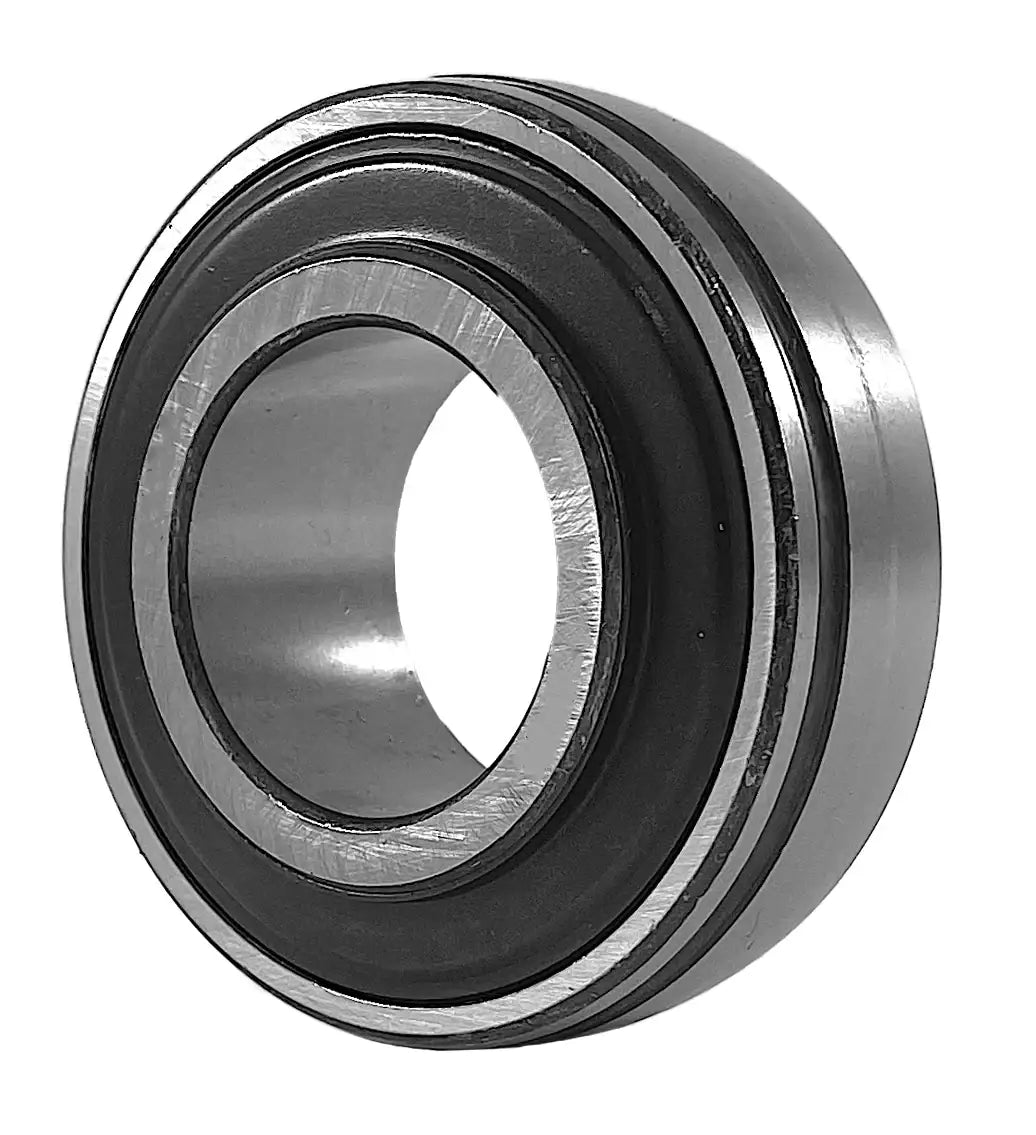

UK205-20 Insert Bearing | 20mm" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-205-20-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK205-20 Insert Bearing | 20mm" Tapered Adapter Insert Bearing Features
UK205-20 Insert Bearing | 20mm" Tapered Adapter Insert Bearing Specifications
UK205-20 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 20mm bore. Our UK205-20 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK205-20 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK205-20 bearings, contact our customer service and, we will be happy to assist you!
UK205-20 Bearing Dimensions
- Part #: UK 205
- Shaft Diameter (d): 20mm
- Dimension (d): 25.0mm
- Dimension (D): 52.0mm
- Dimension (Bi): 23.0mm
- Dimension (Be): 17.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Fits Housing Size: 206 / X05
- Weight (kg): 0.2
- Part #: UK 205
- Shaft Diameter (d): 20mm
- Dimension (d): 25.0mm
- Dimension (D): 52.0mm
- Dimension (Bi): 23.0mm
- Dimension (Be): 17.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 14.04
- Static Load Rating (kN): 8.05
- Fits Housing Size: 206 / X05
- Weight (kg): 0.2
