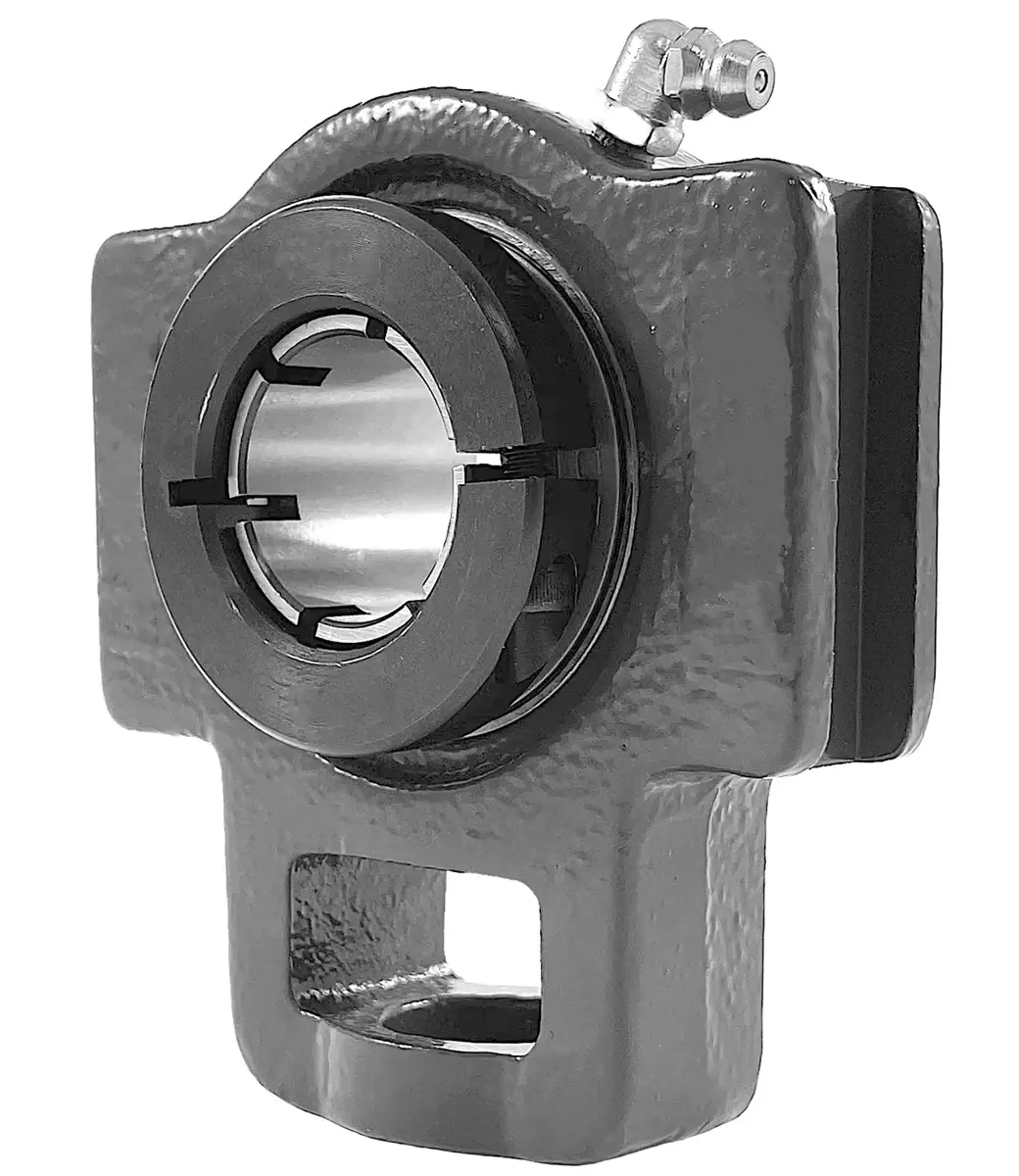

UEST211 Bearing | 55mm Take-Up Bearing

UEST211 bearing is a 55mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 55mm shaft. UEST211 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST211 bearing with a 55mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST211 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST211 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST211 bearings, and we will be happy to assist you!

UEST211 Take-Up Bearing Dimensions

• Part #: UEST 211
• Shaft Diameter (d): 55mm
• Dimension (O): 25.0mm
• Dimension (G): 19.0mm
• Dimension (P): 102.0mm
• Dimension (Q): 64.0mm
• Dimension (S): 35.0mm
• Dimension (B): 95.0mm
• Dimension (K): 27.0mm
• Dimension (E): 130.0mm
• Dimension (A): 146.0mm
• Dimension (W): 171.0mm
• Dimension (J): 64.0mm
• Dimension (L): 38.0mm
• Dimension (H): 106.0mm
• Dimension (Bi): 56.6mm
• Dimension (N): 22.2mm
• Dimension (M): 33.4mm
• Dynamic Load Rating (kN): 43.34
• Static Load Rating (kN): 29.40
• Bearing Insert: UE 211
• Housing Number: ST 211
• Weight (kg): 4.2
