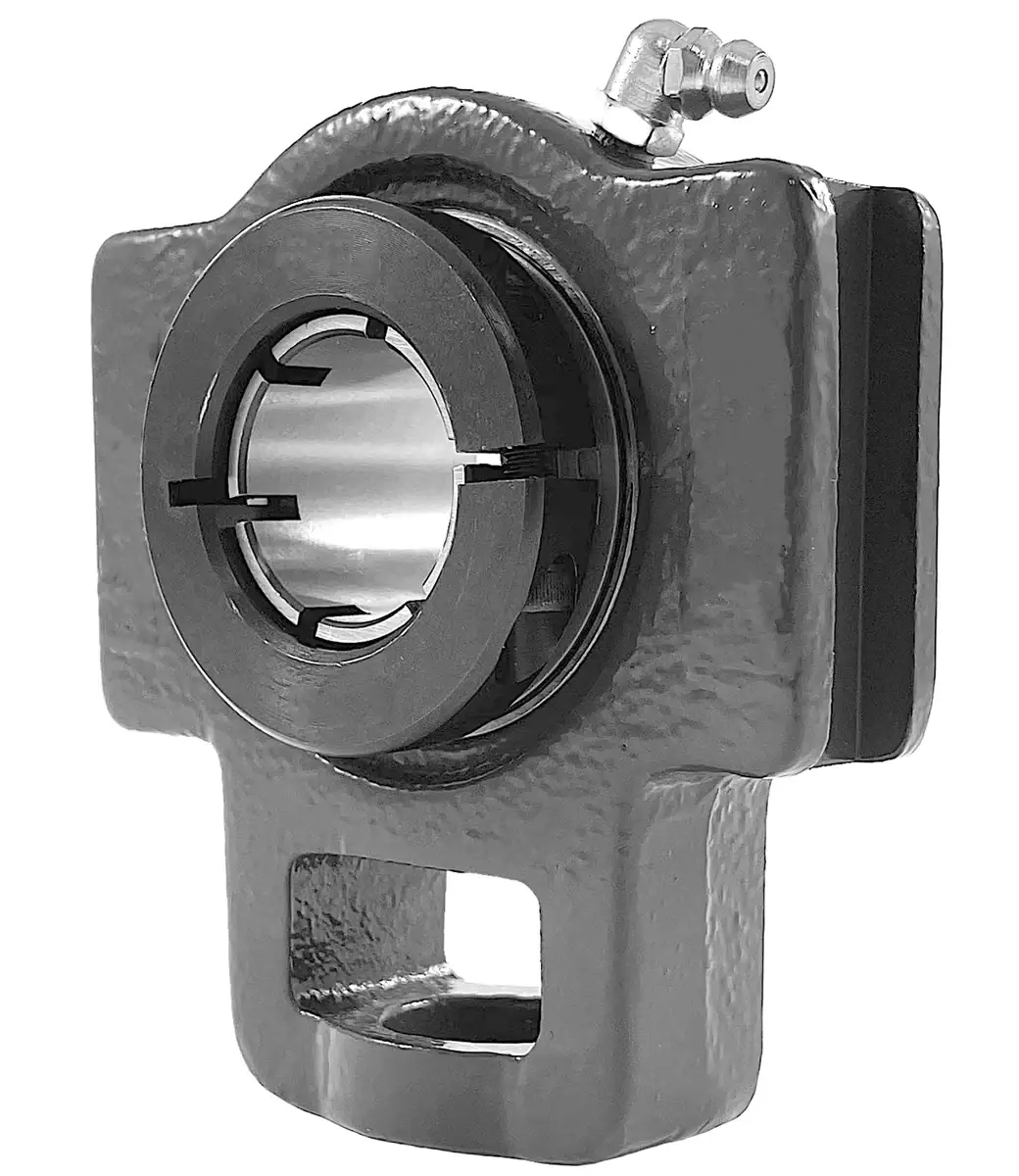

UEST205 Bearing | 25mm Take-Up Bearing

UEST205 bearing is a 25mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 25mm shaft. UEST205 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST205 bearings, and we will be happy to assist you!

UEST205 Take-Up Bearing Dimensions

• Part #: UEST 205
• Shaft Diameter (d): 25mm
• Dimension (O): 16.0mm
• Dimension (G): 10.0mm
• Dimension (P): 51.0mm
• Dimension (Q): 32.0mm
• Dimension (S): 19.0mm
• Dimension (B): 51.0mm
• Dimension (K): 13.5mm
• Dimension (E): 76.2mm
• Dimension (A): 89.0mm
• Dimension (W): 97.0mm
• Dimension (J): 32.0mm
• Dimension (L): 24.0mm
• Dimension (H): 62.0mm
• Dimension (Bi): 35.4mm
• Dimension (N): 14.3mm
• Dimension (M): 19.8mm
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Bearing Insert: UE 205
• Housing Number: ST 205
• Weight (kg): 0.8
