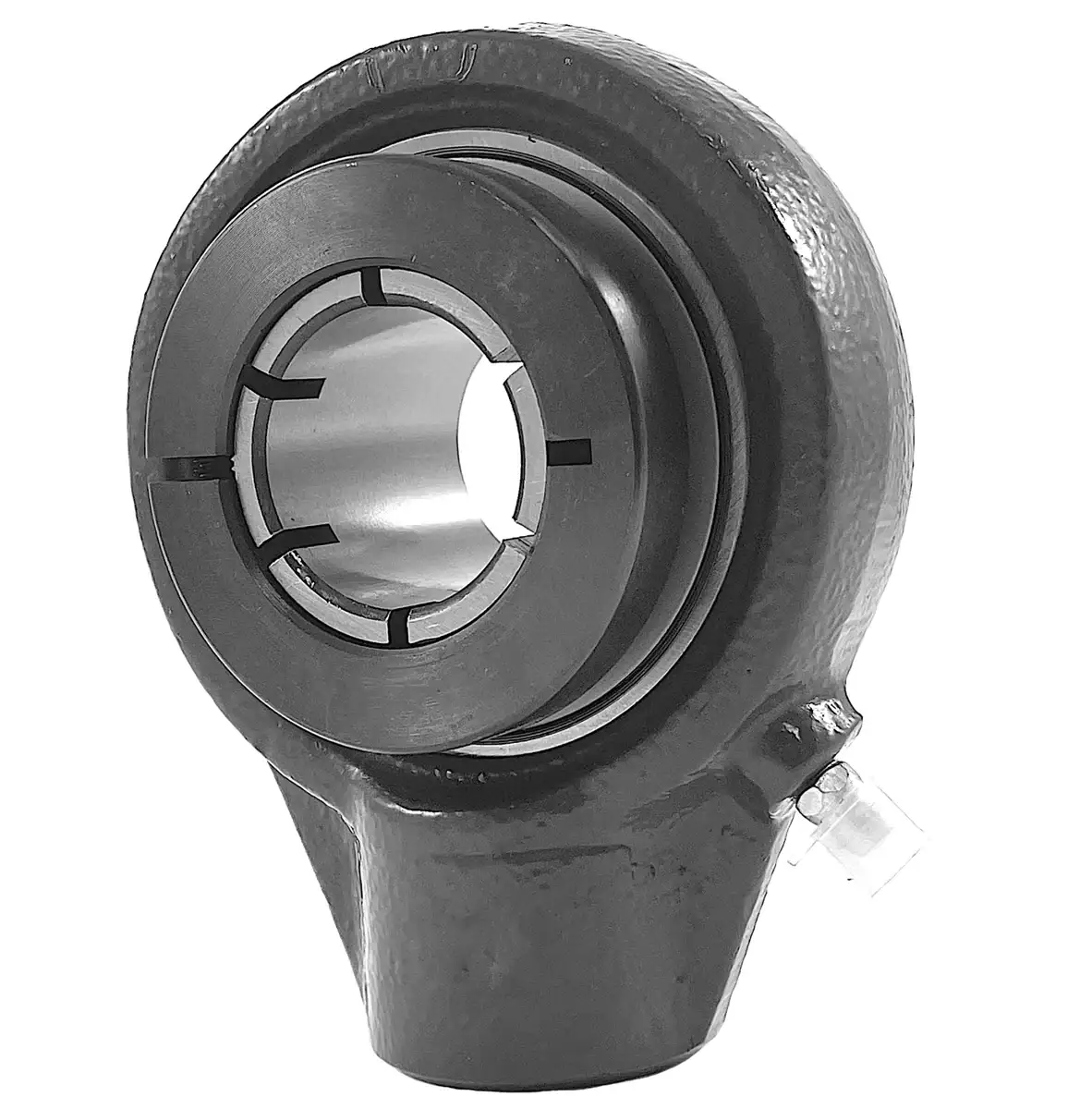

UEHA205 Bearing | 25mm Hanger Bearing

UEHA205 bearing is a 25mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 25mm shaft. UEHA205 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA205 bearings, and we will be happy to assist you!

UEHA205 Hanger Bearing Dimensions

• Part #: UEHA 205
• Shaft Diameter (d): 25mm
• Dimension (A): 78.0mm
• Dimension (W): 103.0mm
• Dimension (C): 0mm
• Dimension (H): 64.0mm
• Dimension (L): 40.0mm
• Dimension (D): 19.0mm
• Dimension (K): PF 3/4
• Dimension (Bi): 35.4mm
• Dimension (N): 14.3mm
• Dimension (M): 19.8mm
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Bearing Insert: UE 205
• Housing Number: HA 205
• Weight (kg): 0.9
