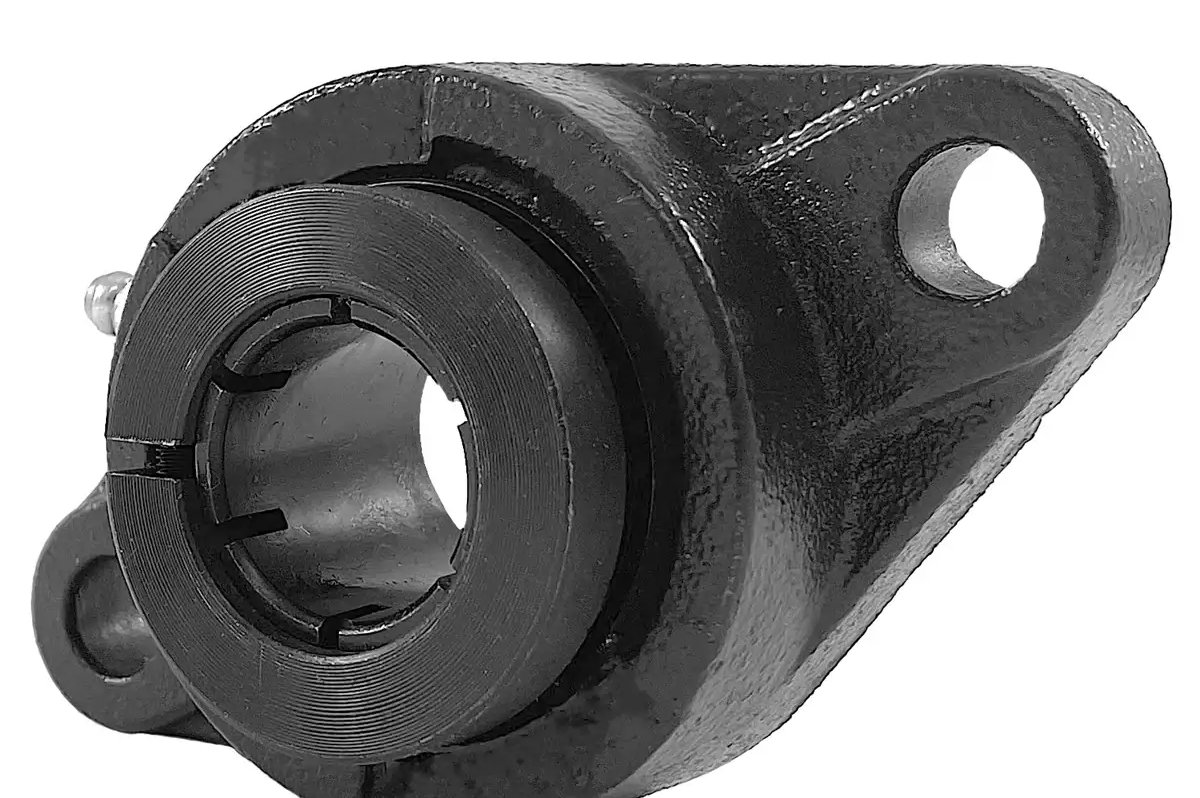

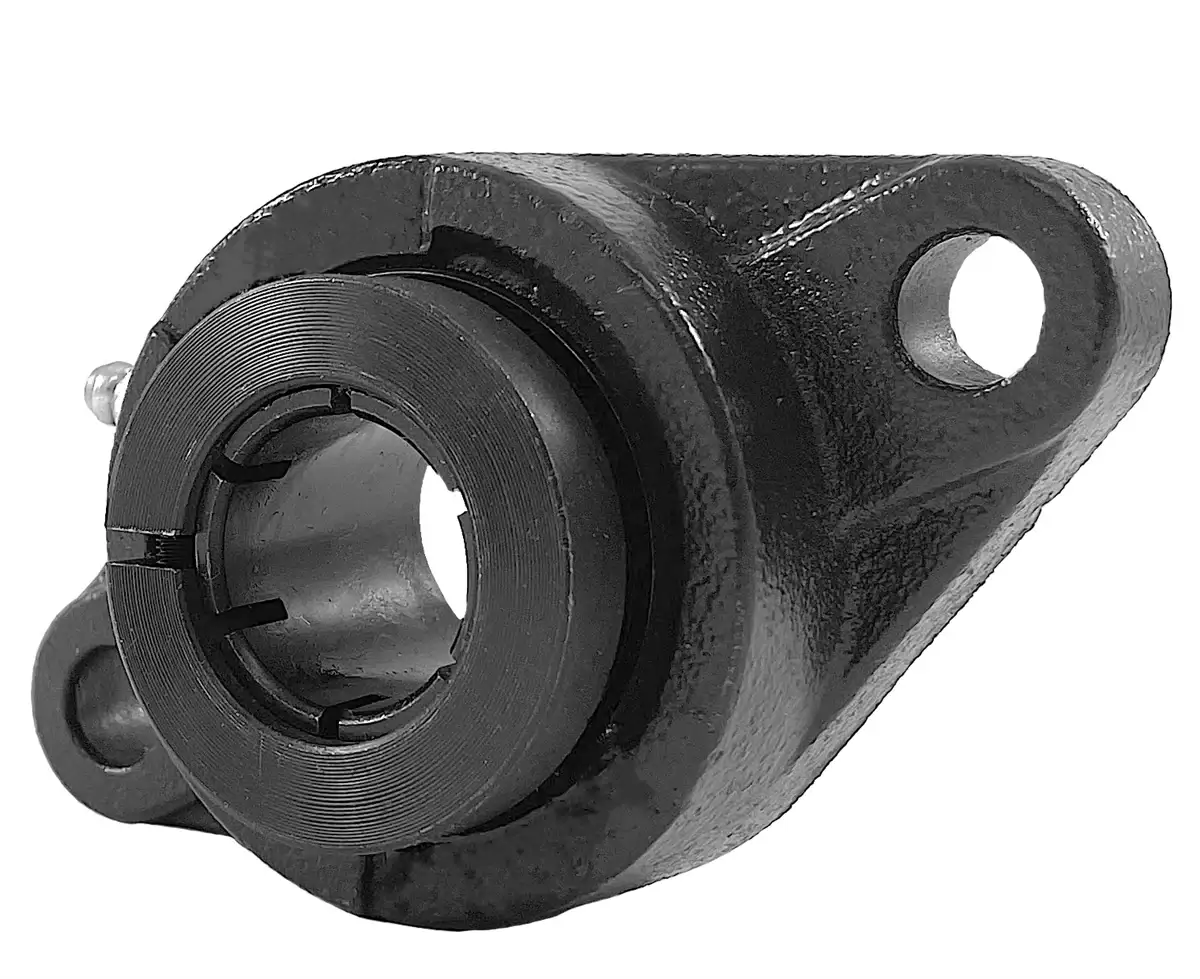

UEFT207-20 Bearing | 1-1/4" 2-Bolt Flange Bearing

UEFT207-20 bearing is a 1-1/4" bore two-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-1/4" shaft. UEFT207-20 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UEFT207-20 bearing with a 1-1/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFT207-20 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFT207-20 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFT207-20 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFT207-20 bearings, and we will be happy to assist you!

UEFT207-20 Bearing Dimensions

• Part #: UEFT 207-20
• Shaft Diameter (d): 1-1/4"
• Dimension (A): 6.13"
• Dimension (E): 5.125"
• Dimension (I): 0.75"
• Dimension (G): 0.56"
• Dimension (L): 1.34"
• Dimension (S): 0.51"
• Dimension (B): 3.75"
• Dimension (Z): 1.78"
• Dimension (Bi): 1.7283"
• Dimension (N): 0.6890"
• Dimension (M): 1.000"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UE 207-20
• Housing Number: FT 207
• Weight (LBS): 2.9
