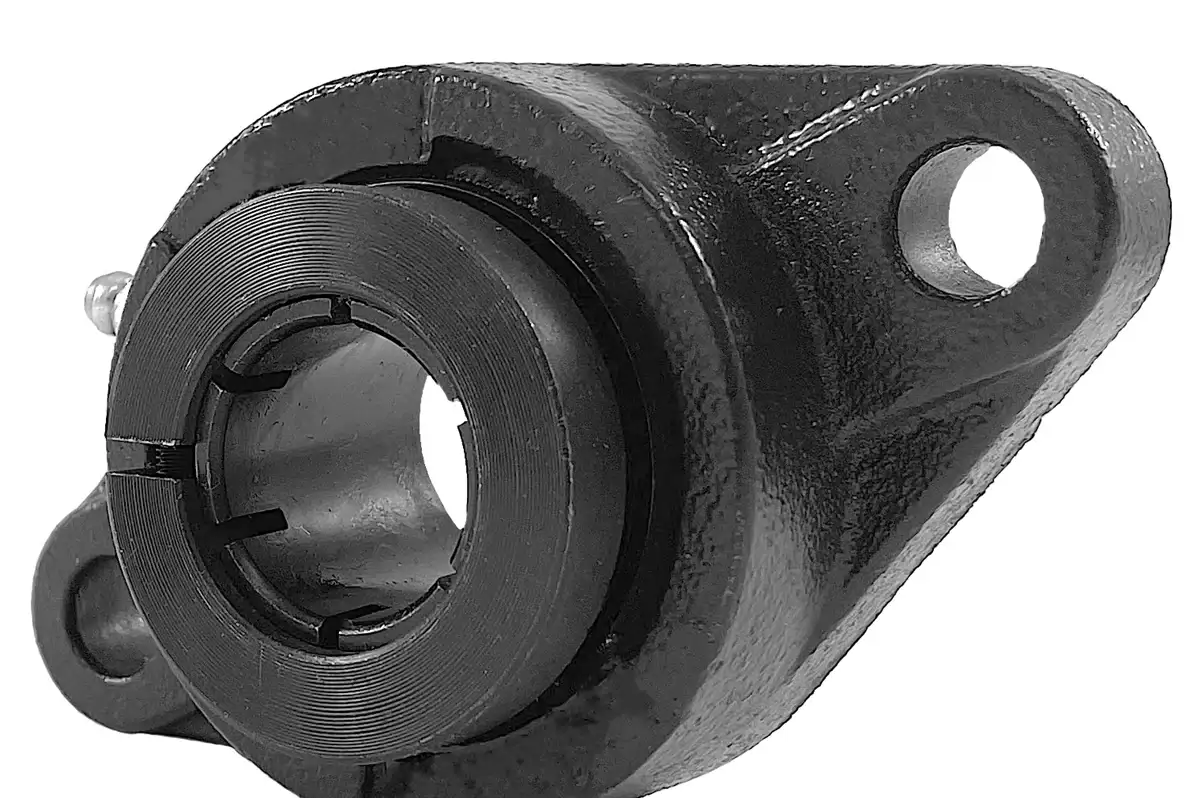

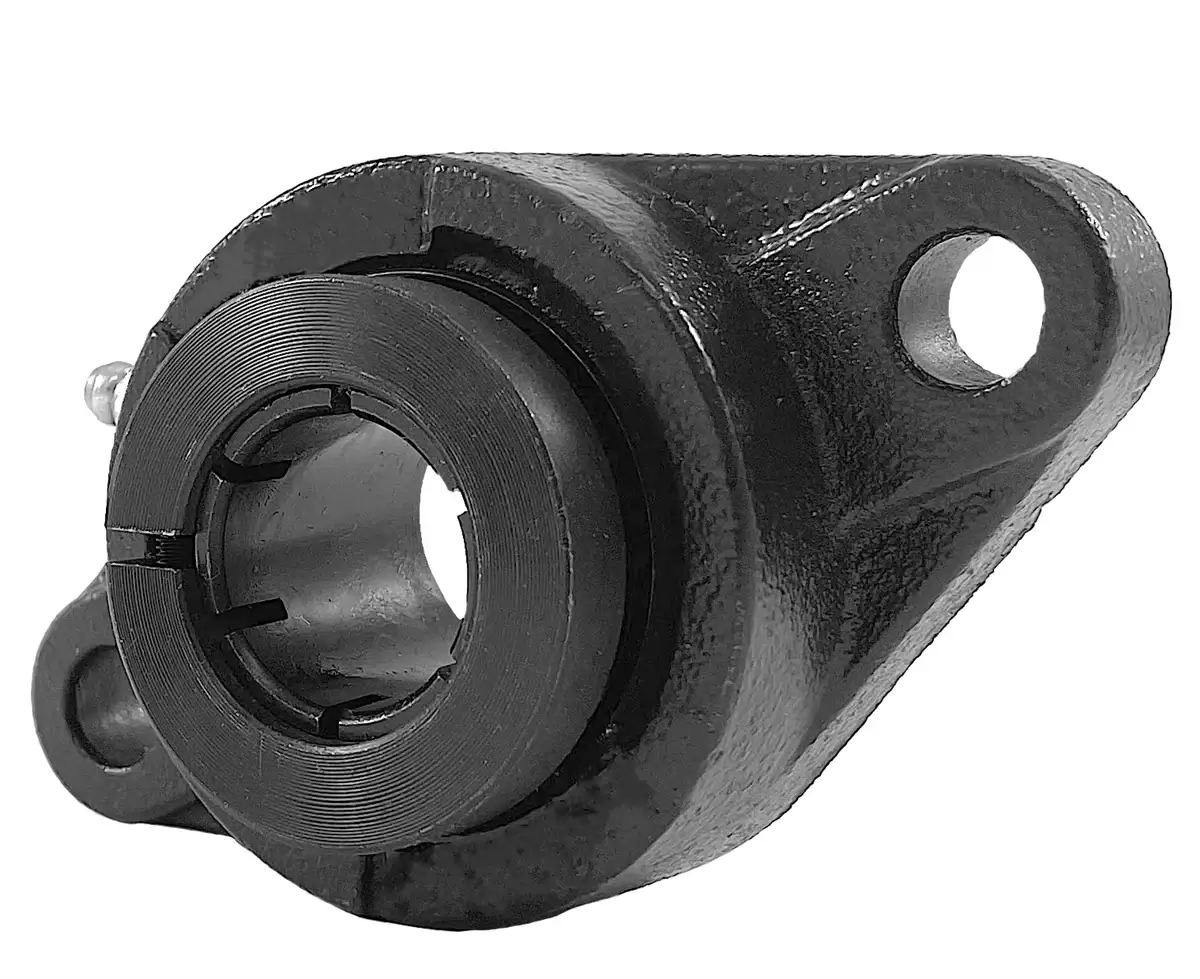

UEFT205-15 Bearing | 15/16" 2-Bolt Flange Bearing

UEFT205-15 bearing is a 15/16" bore two-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 15/16" shaft. UEFT205-15 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UEFT205-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFT205-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFT205-15 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFT205-15 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFT205-15 bearings, and we will be happy to assist you!

UEFT205-15 Bearing Dimensions

• Part #: UEFT 205-15
• Shaft Diameter (d): 15/16"
• Dimension (A): 4.88"
• Dimension (E): 3.891"
• Dimension (I): 0.63"
• Dimension (G): 0.50"
• Dimension (L): 1.06"
• Dimension (S): 0.47"
• Dimension (B): 2.75"
• Dimension (Z): 1.44"
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.780"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-15
• Housing Number: FT 205
• Weight (LBS): 1.5
