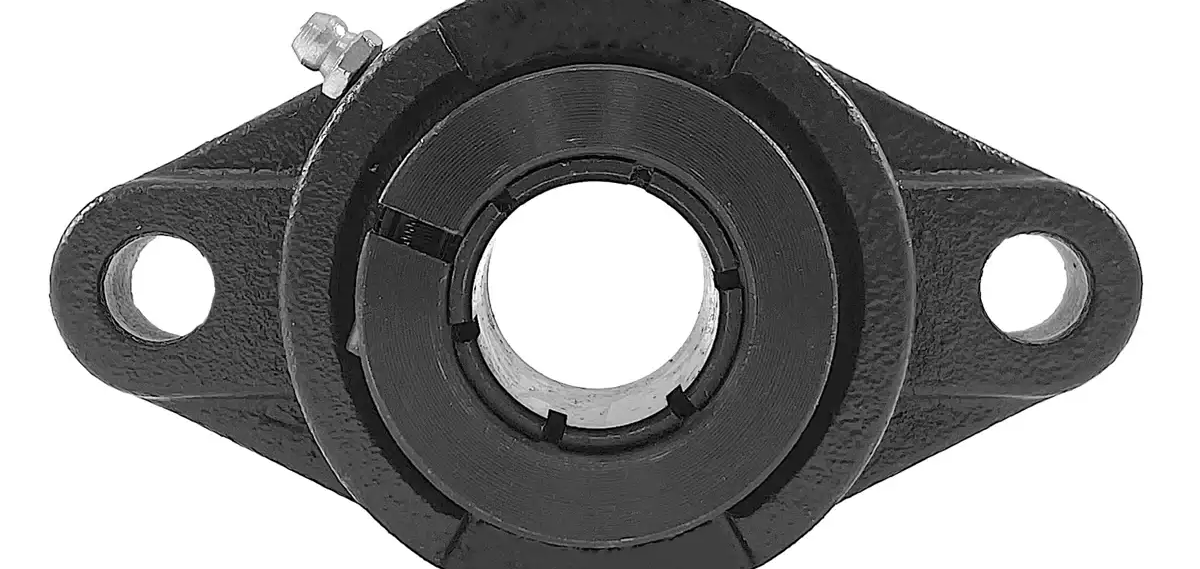

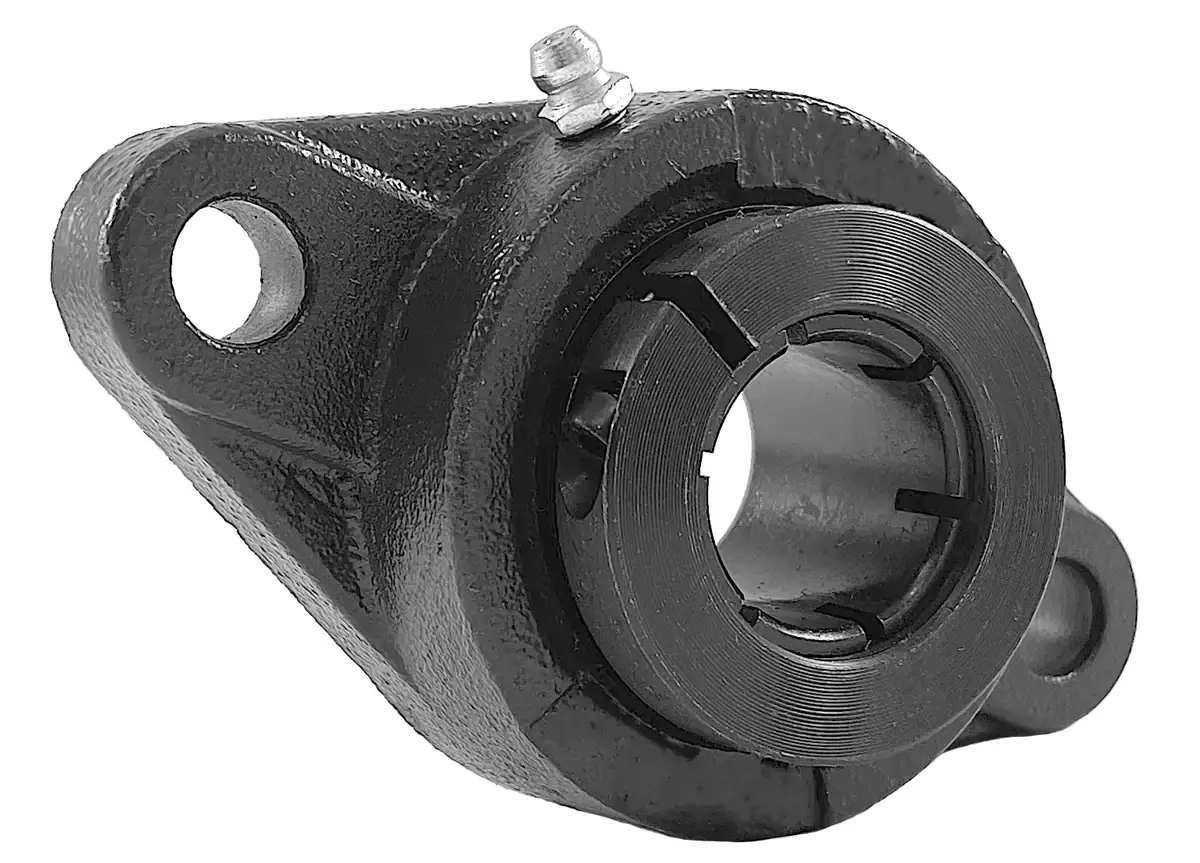

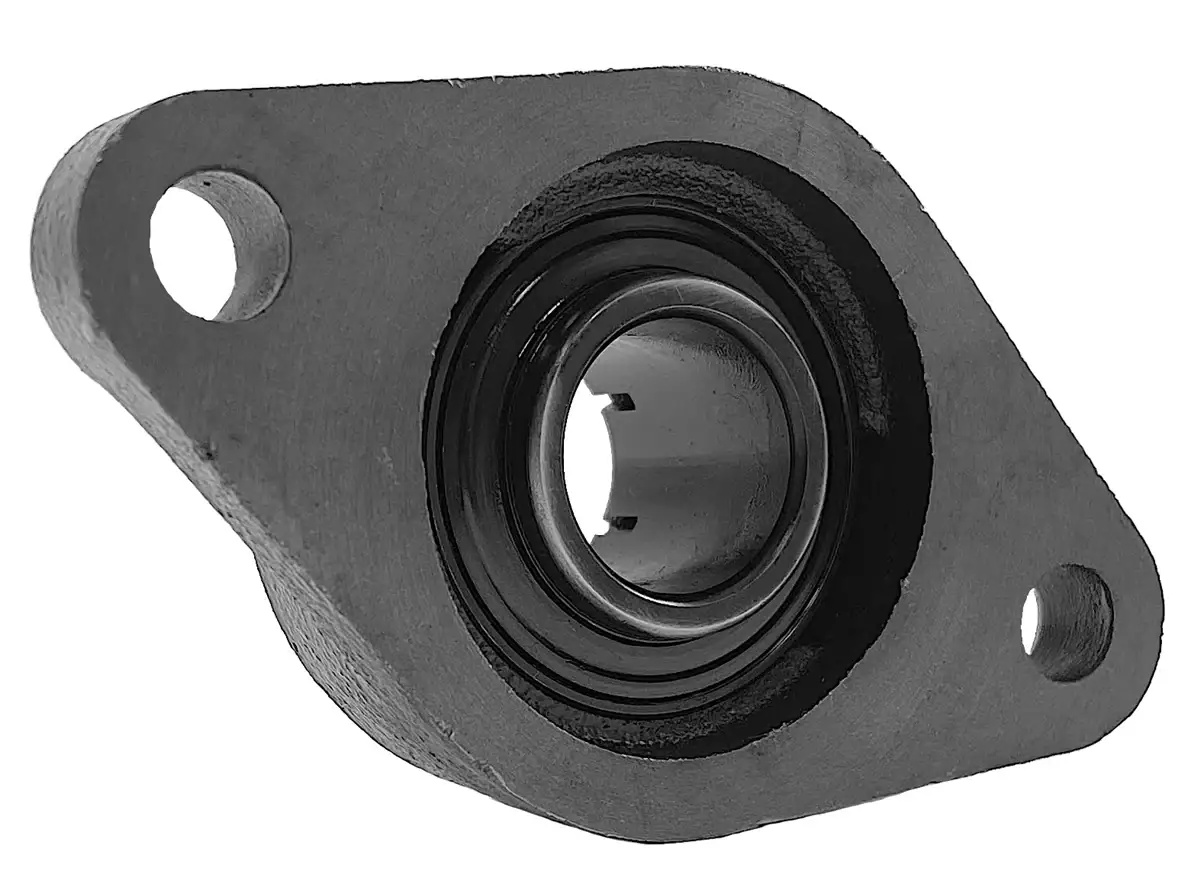

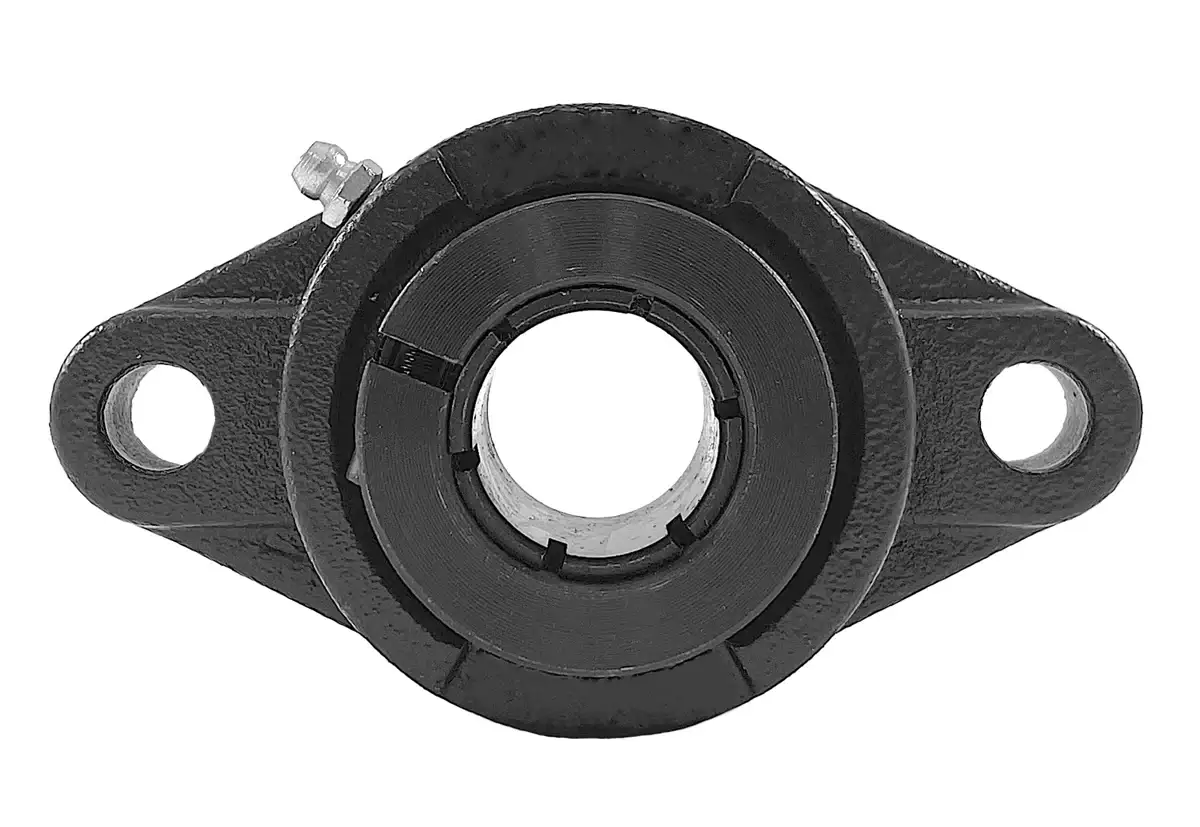

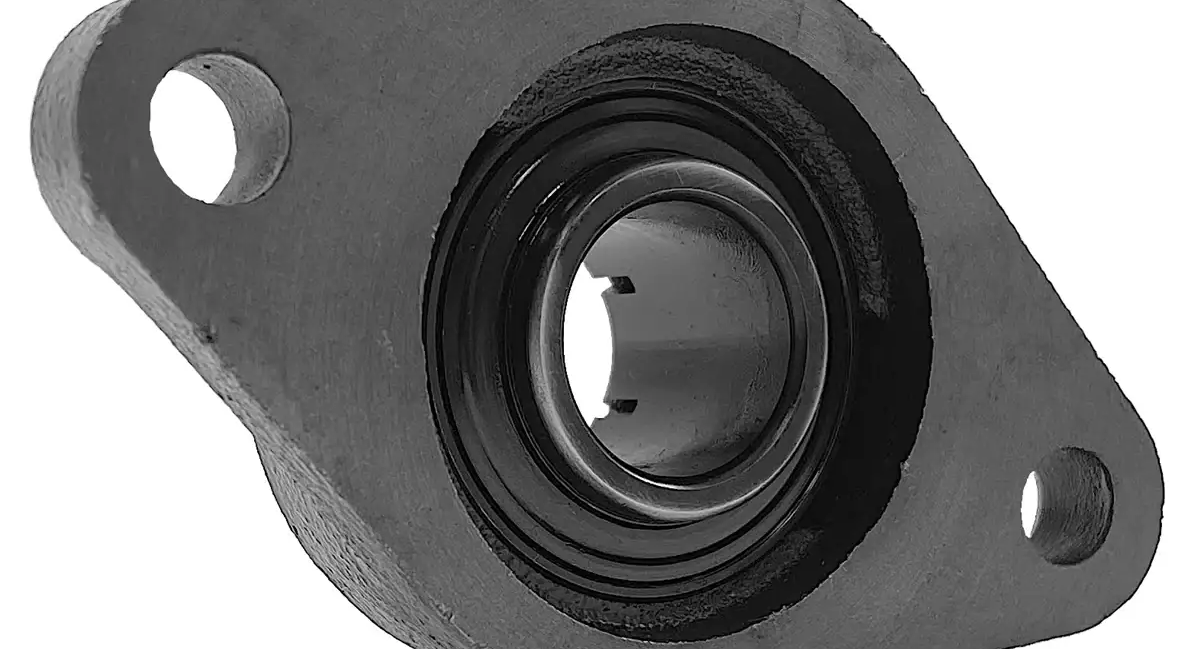

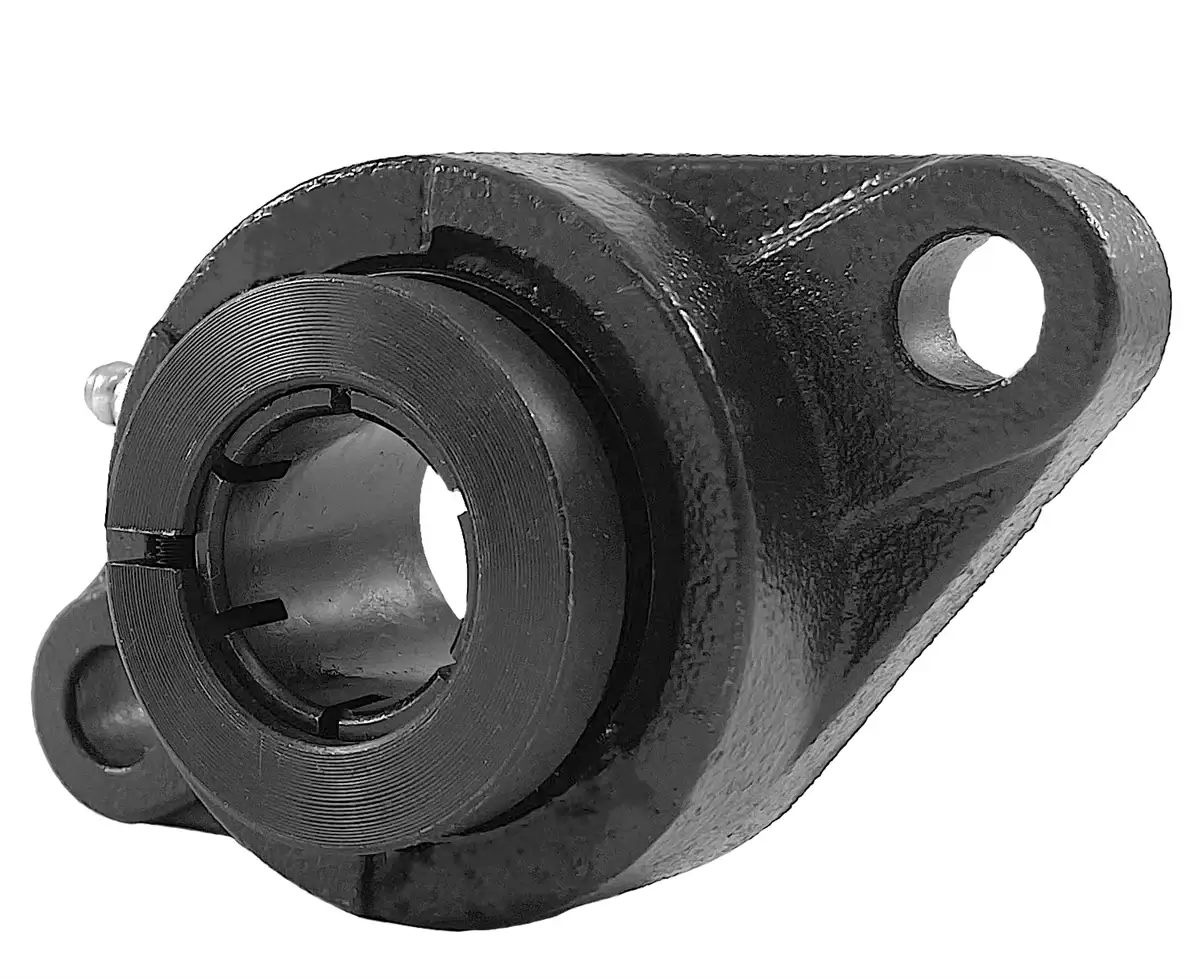

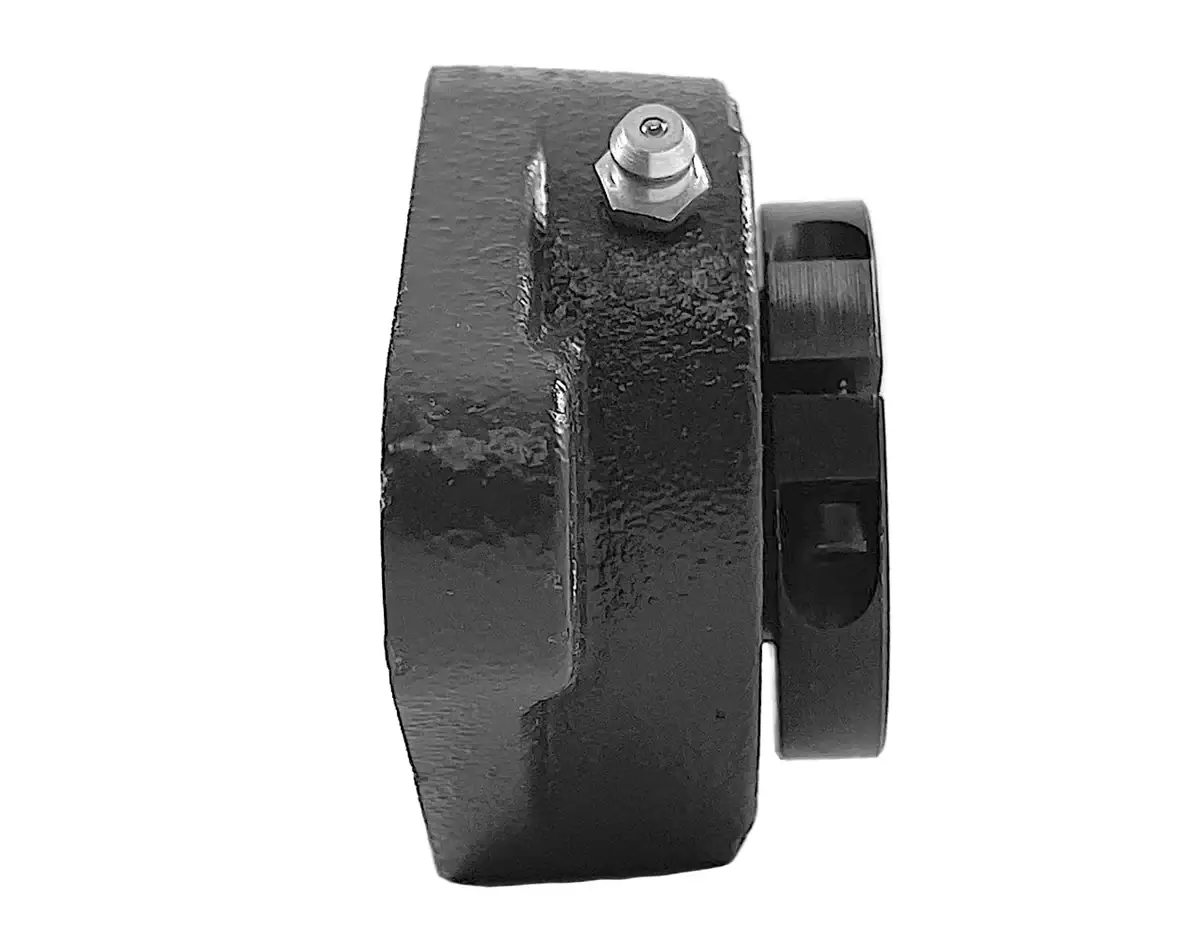

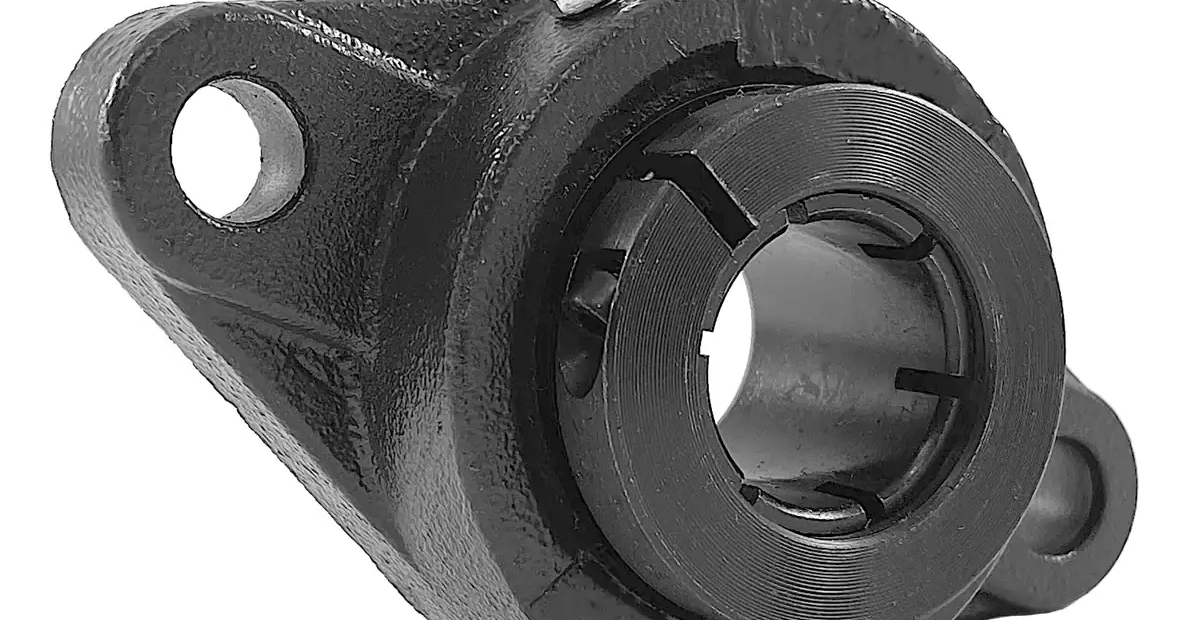

UEFT204-12 Bearing | 3/4" 2-Bolt Flange Bearing

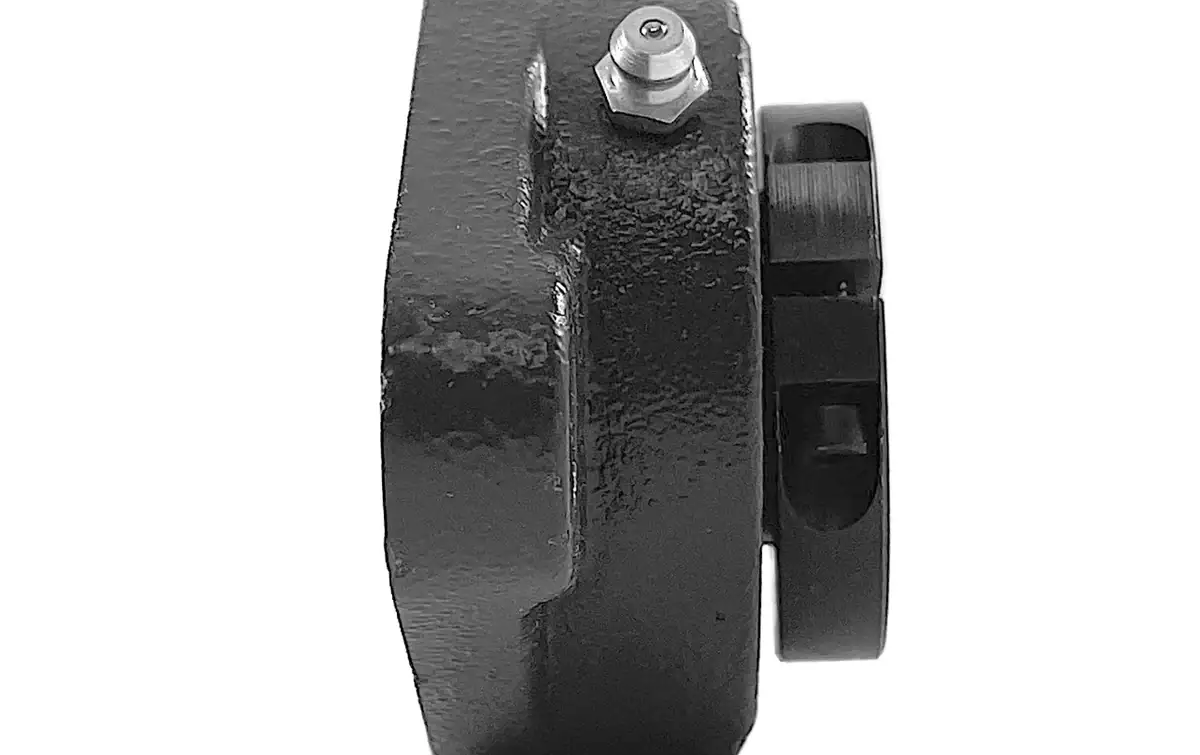

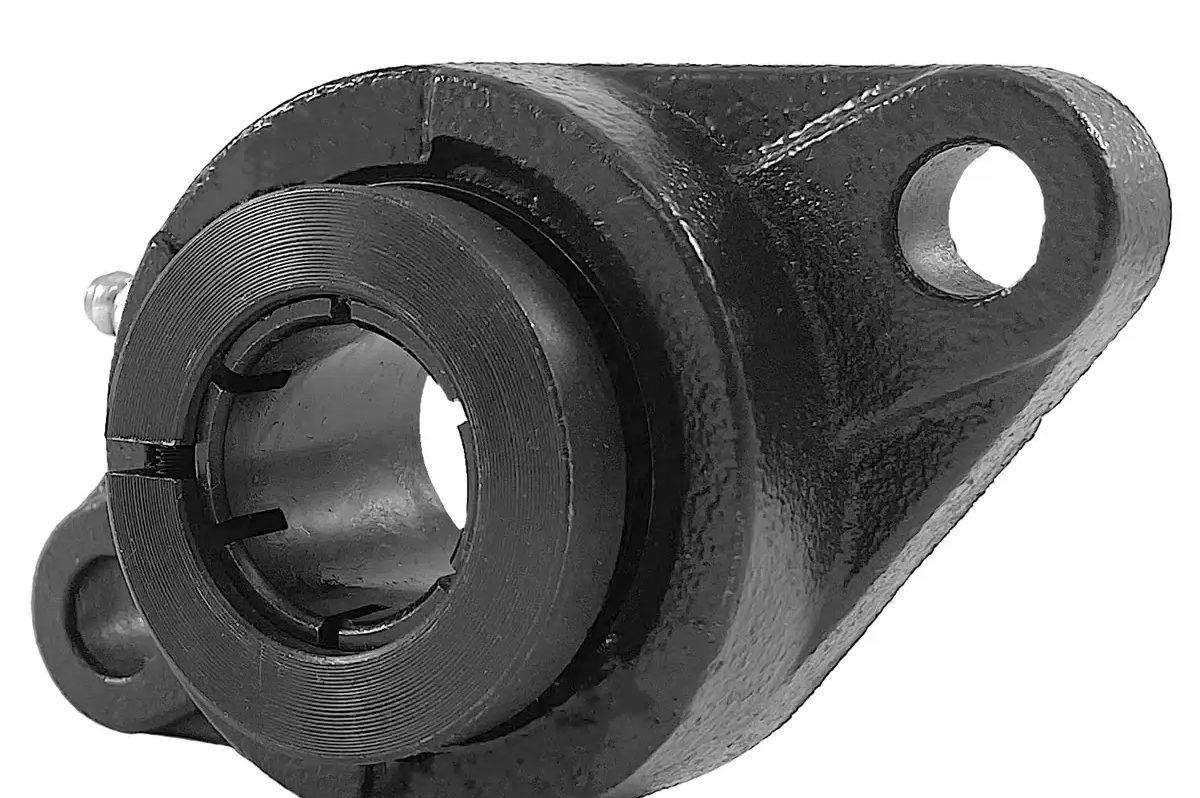

UEFT204-12 bearing is a 3/4" bore two-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 3/4" shaft. UEFT204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UEFT204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFT204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFT204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFT204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFT204-12 bearings, and we will be happy to assist you!

UEFT204-12 Bearing Dimensions

• Part #: UEFT 204-12
• Shaft Diameter (d): 3/4"
• Dimension (A): 4.41"
• Dimension (E): 3.531"
• Dimension (I): 0.56"
• Dimension (G): 0.44"
• Dimension (L): 0.98"
• Dimension (S): 0.39"
• Dimension (B): 2.38"
• Dimension (Z): 1.38"
• Dimension (Bi): 1.2992"
• Dimension (N): 0.5000"
• Dimension (M): 0.720"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: UE 204-12
• Housing Number: FT 204
• Weight (LBS): 1.1
