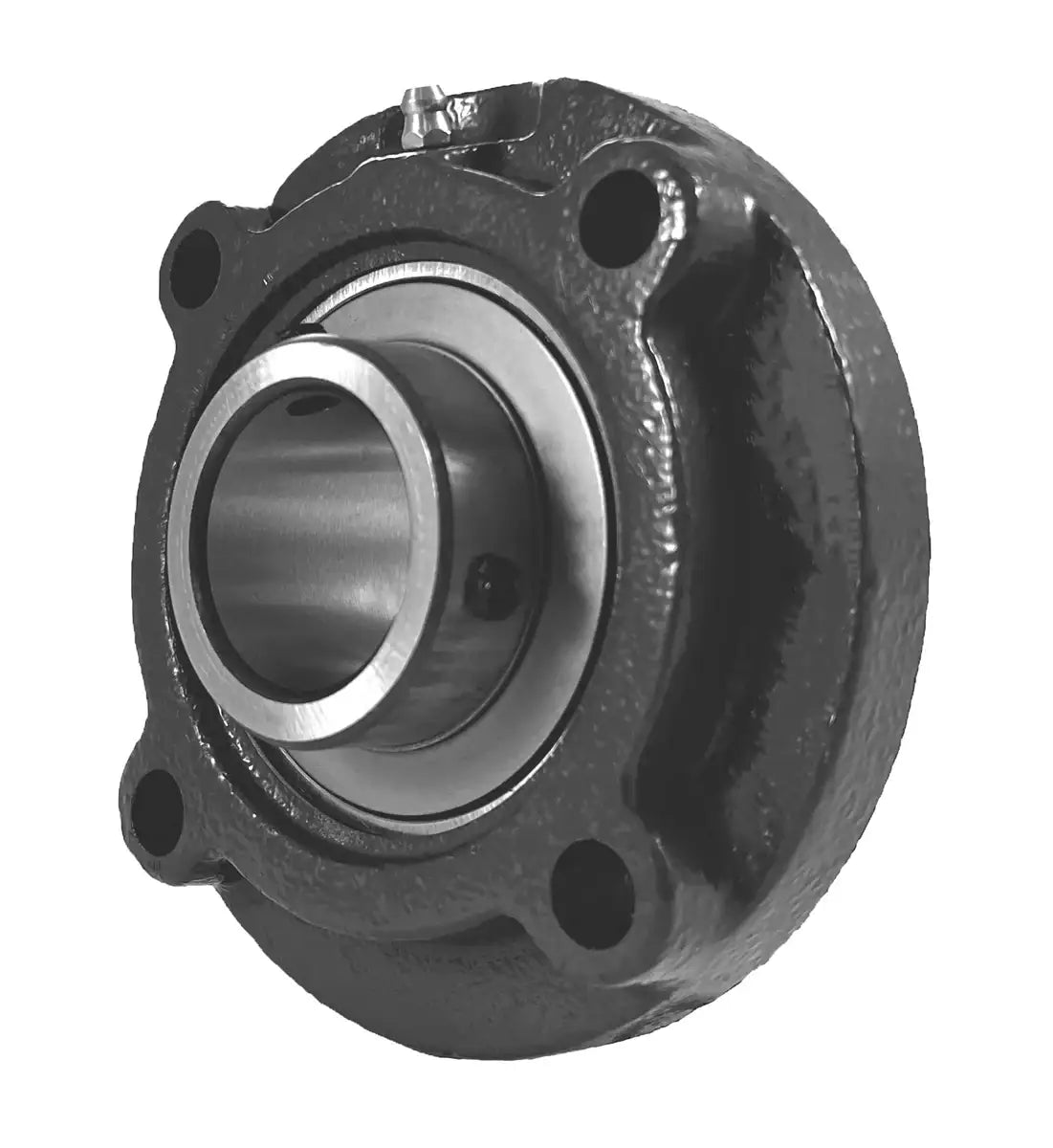

UEFCS208 Bearing | 40mm 4-Bolt Flange Bearing

UEFCS208 bearing is a 40mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 40mm shaft and has an inch based housing. UEFCS208 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFCS208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFCS208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFCS208 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFCS208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFCS208 bearings, and we will be happy to assist you!

UEFCS208 Bearing Dimensions

• Part #: UEFCS208
• Shaft Diameter (d): 40mm
• Dimension (A): 133.4mm
• Dimension (P): 111.1mm
• Dimension (E): 78.0mm
• Dimension (I): 8.9mm
• Dimension (S): 12.0mm
• Dimension (J): 10.9mm
• Dimension (K): 10.9mm
• Dimension (G): 25.9mm
• Dimension (F): 92.1mm
• Dimension (Z): 32.8mm
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UE 208
• Housing Number: FCS 208
• Weight (kg): 2.0
