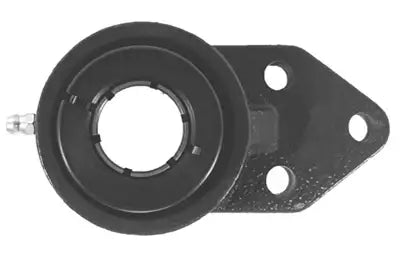

UEFB204 Bearing | 20mm 3-Bolt Flange Bearing

UEFB204 bearing is a 3/4" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 3/4" shaft. UEFB204 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFB204 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFB204 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFB204 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFB204 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFB204 bearings, and we will be happy to assist you!

UEFB204 Bearing Dimensions

• Part #: UEFB 204
• Shaft Diameter (d): 20mm
• Dimension (A): 110.0mm
• Dimension (H): 42.0mm
• Dimension (E): 32.0mm
• Dimension (J): 27.0mm
• Dimension (I): 15.0mm
• Dimension (G): 13.0mm
• Dimension (L): 25.5mm
• Dimension (S): 10.0mm
• Dimension (B): 62.0mm
• Dimension (F): 52.0mm
• Dimension (Z): 35.3mm
• Dimension (Bi): 33.0mm
• Dimension (N): 12.7mm
• Dimension (M): 18.3mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: UE 204
• Housing Number: FB 204
• Weight (kg): 0.7
