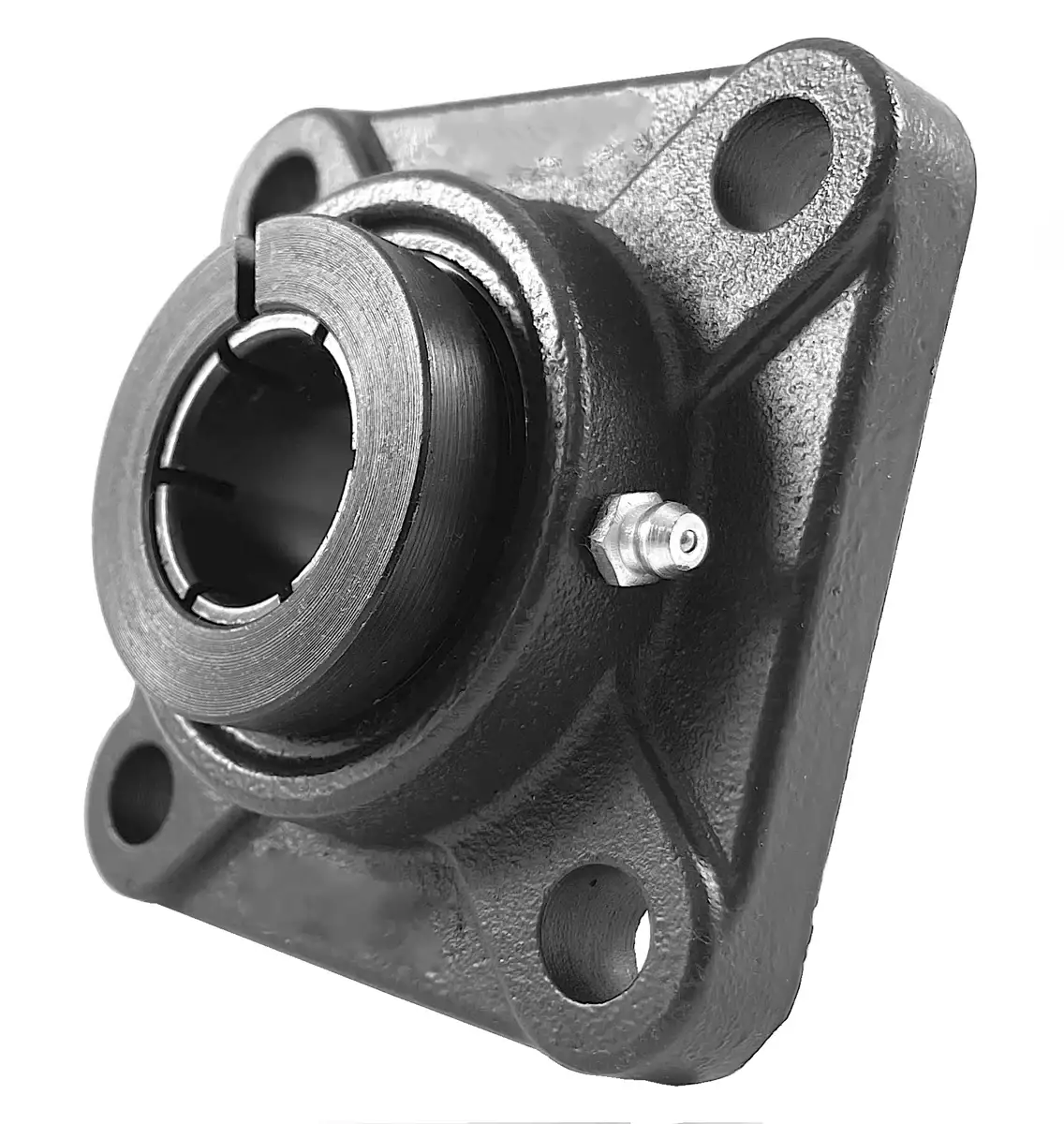

UEF206-19 Bearing | 1-3/16" 4-Bolt Flange Bearing

UEF206-19 bearing is a 1-3/16" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc to secure to a 1-3/16" shaft. UEF206-19 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UEF206-19 bearing with a 1-3/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEF206-19 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEF206-19 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEF206-19 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEF206-19 bearings, and we will be happy to assist you!

UEF206-19 Bearing Dimensions

• Part #: UEF 206-19
• Shaft Diameter (d): 1-3/16"
• Dimension (A): 4.25"
• Dimension (E): 3.250"
• Dimension (I): 0.71"
• Dimension (G): 0.56"
• Dimension (L): 1.22"
• Dimension (S): 0.47"
• Dimension (Z): 1.66"
• Dimension (Bi): 1.5669"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UE 206-19
• Housing Number: F 206
• Weight (LBS): 3.1
