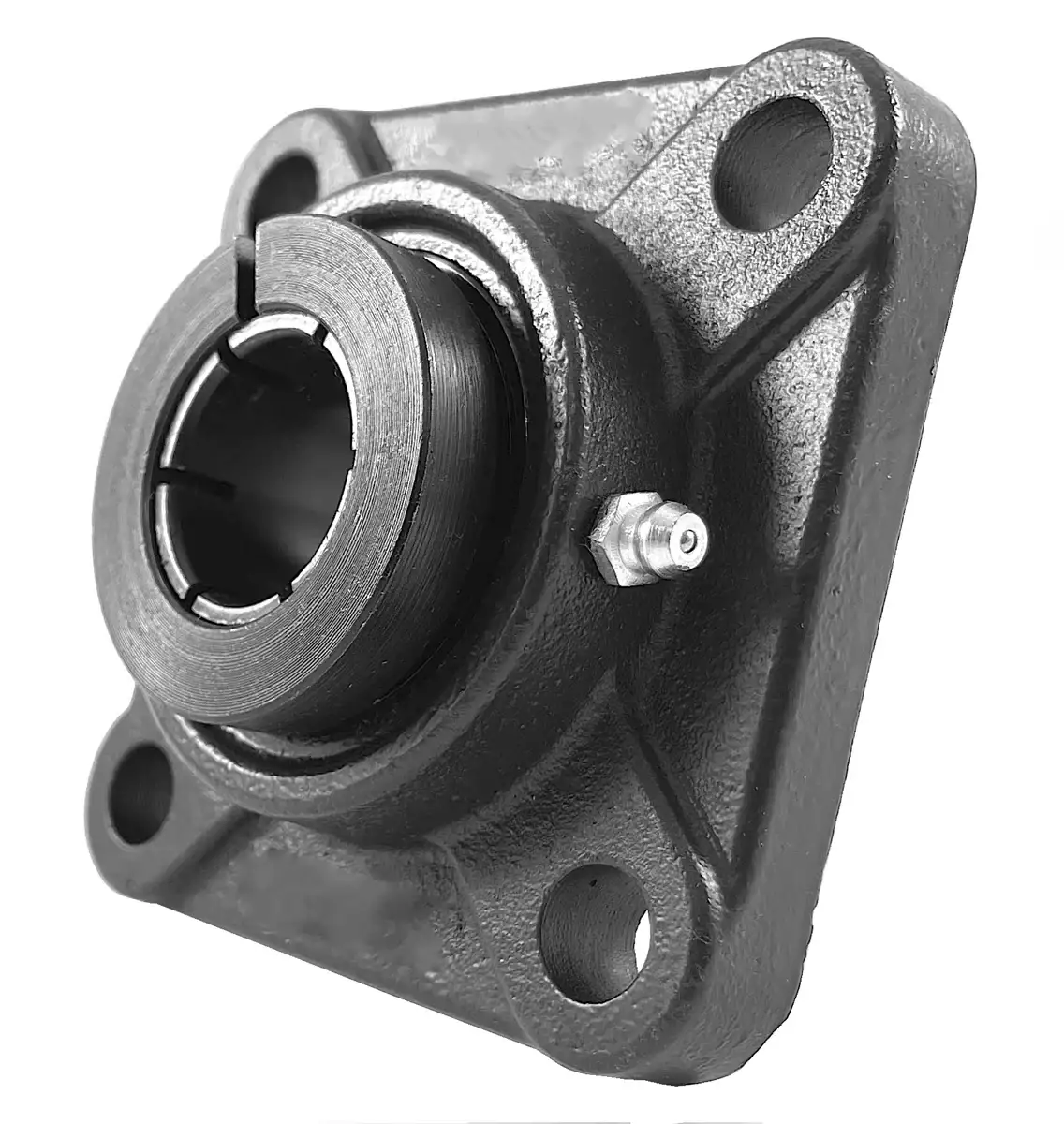

UEF205-15 bearing is a 15/16" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc to secure to a 15/16" shaft. UEF205-15 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UEF205-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEF205-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEF205-15 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEF205-15 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEF205-15 bearings, and we will be happy to assist you!

UEF205-15 Bearing Dimensions

• Part #: UEF 205-15
• Shaft Diameter (d): 15/16"
• Dimension (A): 3.75"
• Dimension (E): 2.750"
• Dimension (I): 0.63"
• Dimension (G): 0.56"
• Dimension (L): 1.06"
• Dimension (S): 0.47"
• Dimension (Z): 1.47"
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-15
• Housing Number: F 205
• Weight (LBS): 2.4
