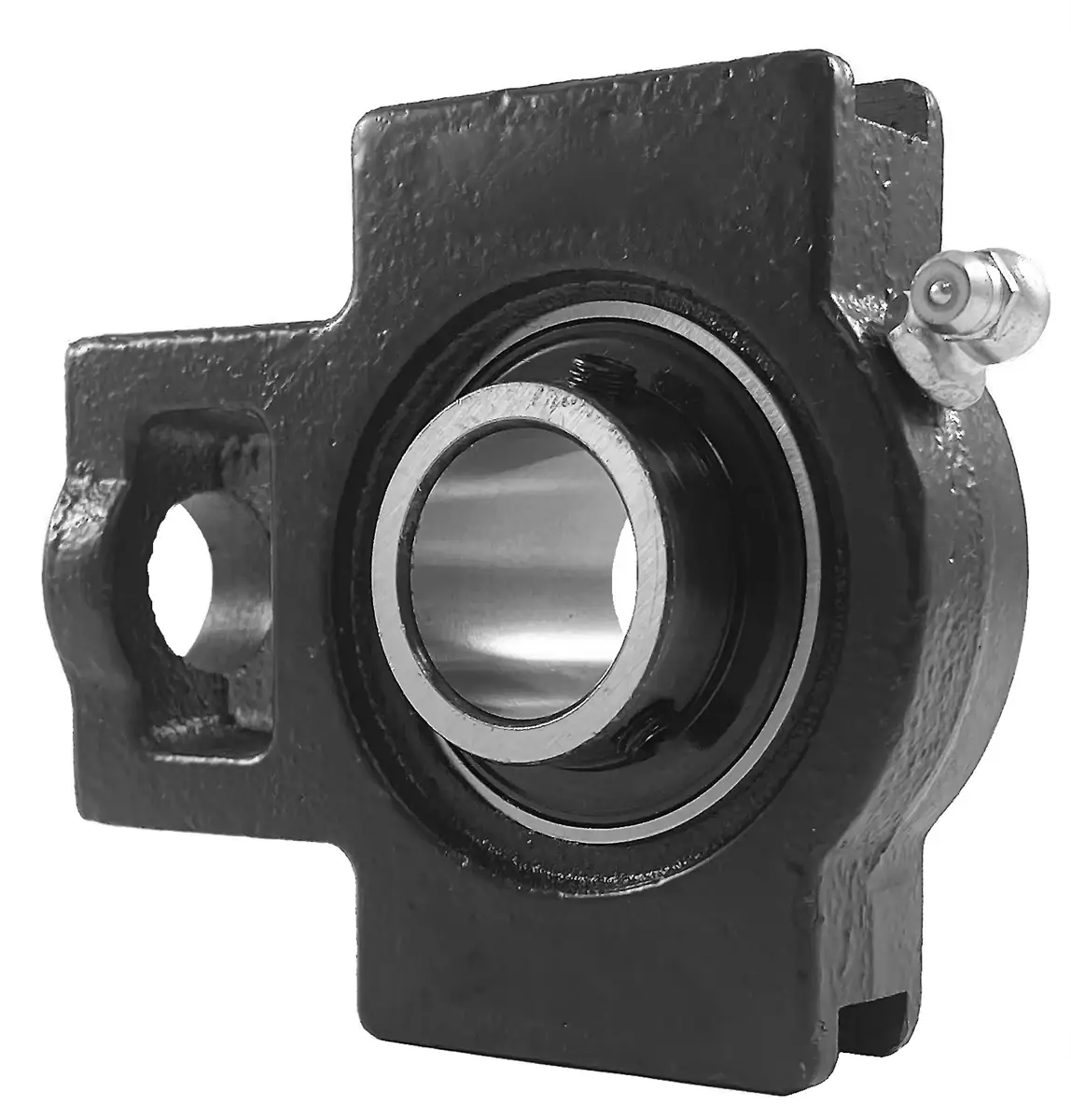

UCST204 bearing is a 20mm bore normal-duty take-up bearing that utilizes set screws to secure to a 20mm shaft. UCST204 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST204 bearing with a 20mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST204 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST204 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST204 bearings, and we will be happy to assist you!

UCST204 Take-Up Bearing Dimensions

• Part #: UCST 204
• Shaft Diameter (d): 20mm
• Dimension (O): 16.0mm
• Dimension (G): 10.0mm
• Dimension (P): 51.0mm
• Dimension (Q): 32.0mm
• Dimension (S): 19.0mm
• Dimension (B): 51.0mm
• Dimension (K): 13.5mm
• Dimension (E): 76.2mm
• Dimension (A): 89.0mm
• Dimension (W): 94.0mm
• Dimension (J): 32.0mm
• Dimension (L): 21.0mm
• Dimension (H): 60.0mm
• Dimension (Bi): 31.0mm
• Dimension (N): 12.7mm
• Dimension (M): 18.3mm
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: UC 204
• Housing Number: ST 204
• Weight (kg): 0.7
