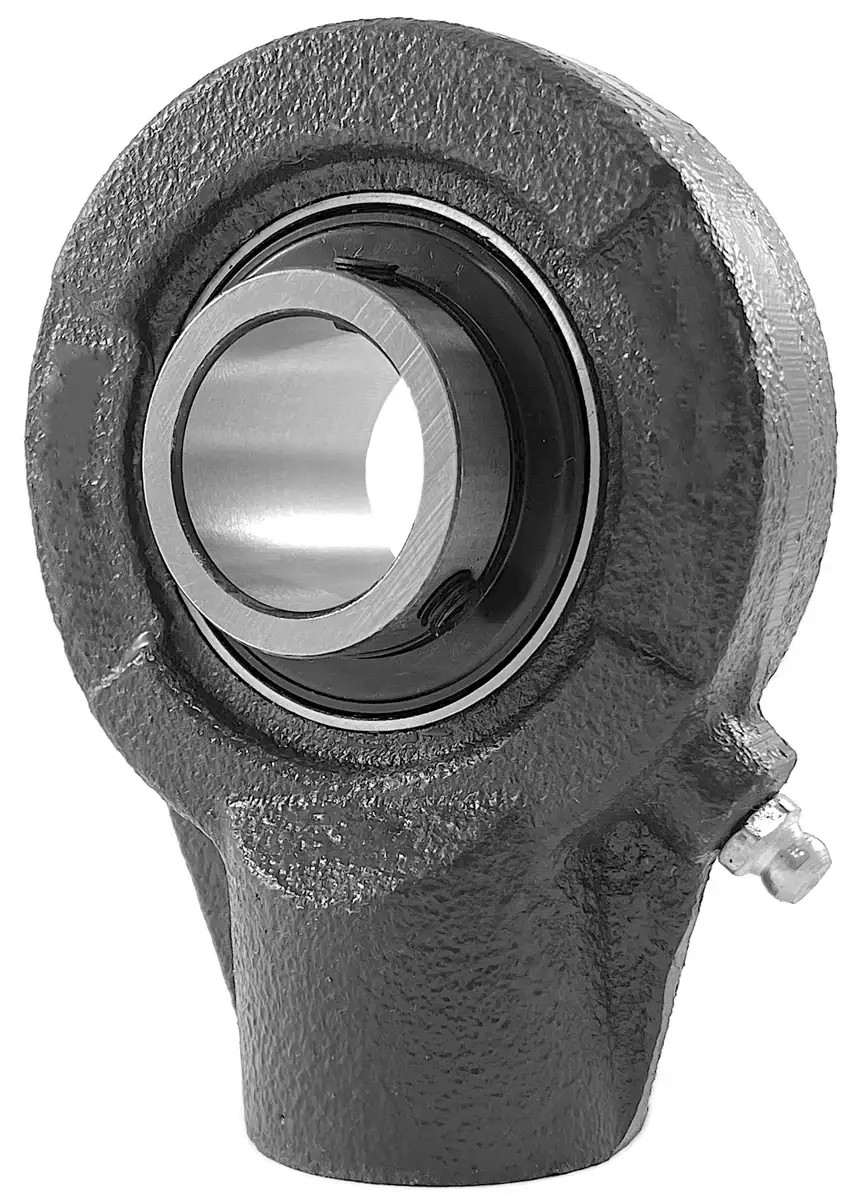

UCHA207-21 Bearing | 1-5/16" Hanger Bearing

UCHA207-21 bearing is a 1-5/16" bore normal-duty hanger bearing that utilizes set screws to secure to a 1-5/16" shaft. UCHA207-21 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA207-21 bearing with a 1-5/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA207-21 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA207-21 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA207-21 bearings, and we will be happy to assist you!

UCHA207-21 Hanger Bearing Dimensions

• Part #: UCHA207-21
• Shaft Diameter (d): 1-5/16"
• Dimension (A): 3.62"
• Dimension (W): 4.57"
• Dimension (C): 0.00"
• Dimension (H): 2.76"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.6890"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Bearing Insert: UC 207-21
• Housing Number: HA 207
• Weight (LBS): 2.6
