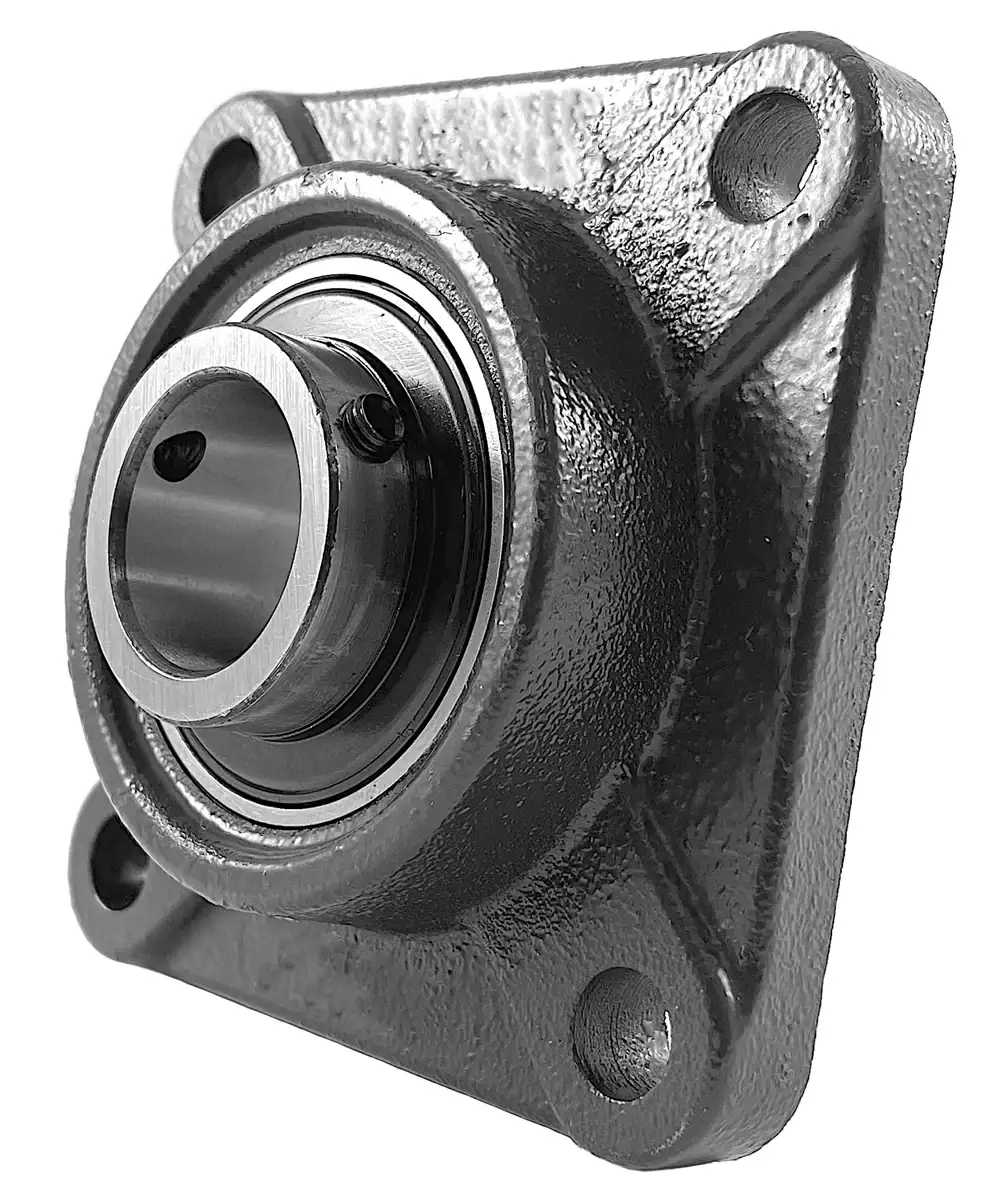

UCF215 bearing is a 75mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 75mm shaft. UCF215 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF215 bearing with a 75mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF215 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF215 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF215 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF215 bearings, and we will be happy to assist you!

UCF215 Bearing Dimensions

• Part #: UCF 215
• Shaft Diameter (d): 75mm
• Dimension (A): 200.0mm
• Dimension (E): 158.8mm
• Dimension (I): 34.0mm
• Dimension (G): 22.0mm
• Dimension (L): 56.0mm
• Dimension (S): 20.0mm
• Dimension (Z): 78.5mm
• Dimension (Bi): 77.8mm
• Dimension (N): 33.3mm
• Dimension (M): 44.5mm
• Bolt Used: M18
• Dynamic Load Rating (kN): 66.61
• Static Load Rating (kN): 47.85
• Bearing Insert: UC 215
• Housing Number: F 215
• Weight (kg): 8.4
