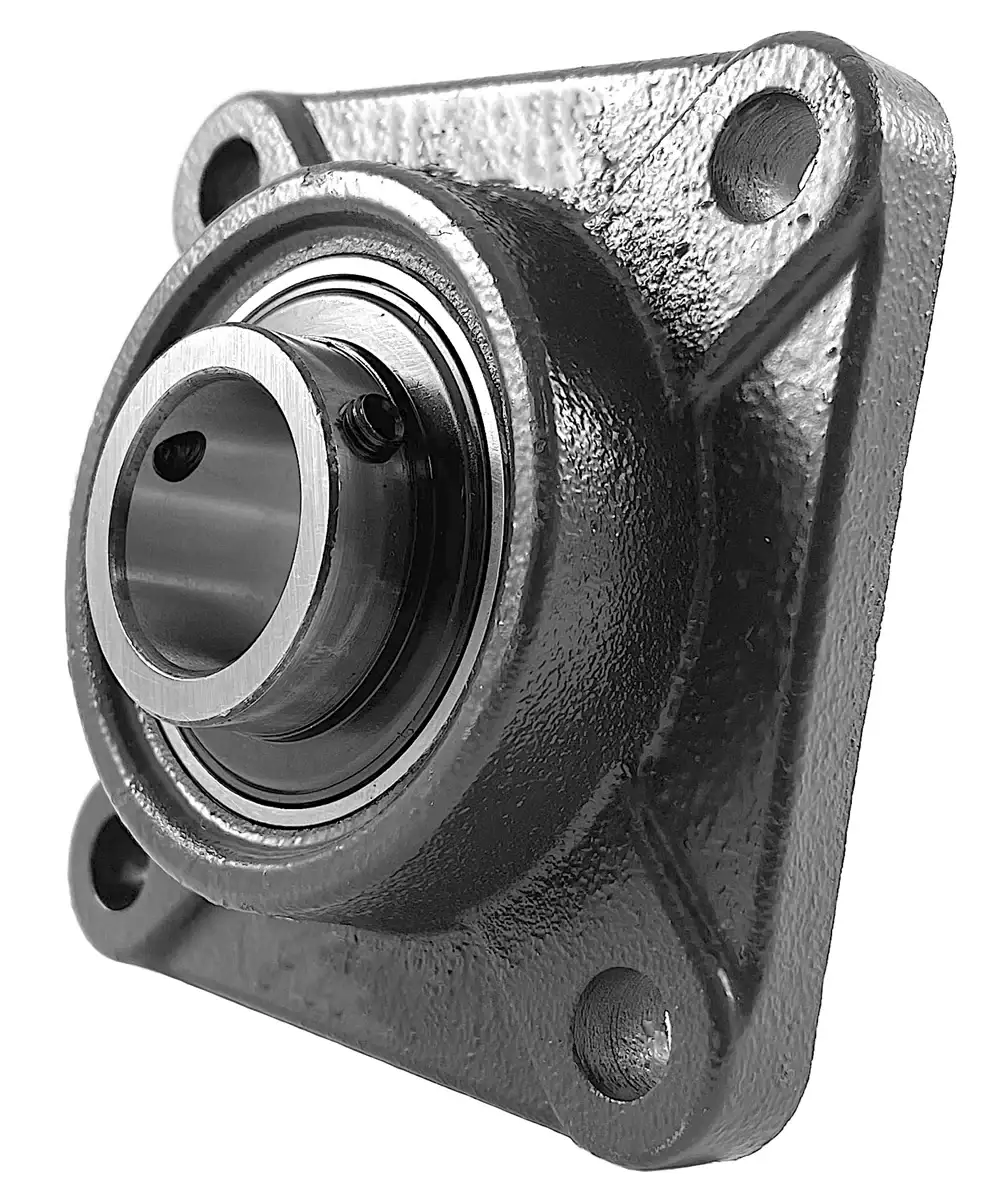

UCF212 Bearing | 60mm 4-Bolt Flange Bearing

UCF212 bearing is a 60mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 60mm shaft. UCF212 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF212 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF212 bearings, and we will be happy to assist you!

UCF212 Bearing Dimensions

• Part #: UCF 212
• Shaft Diameter (d): 60mm
• Dimension (A): 175.0mm
• Dimension (E): 142.9mm
• Dimension (I): 29.0mm
• Dimension (G): 20.0mm
• Dimension (L): 48.0mm
• Dimension (S): 17.0mm
• Dimension (Z): 68.7mm
• Dimension (Bi): 65.1mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Bolt Used: M16
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UC 212
• Housing Number: F 212
• Weight (kg): 5.7
