UCF208 Bearing | 40mm 4-Bolt Flange Bearing

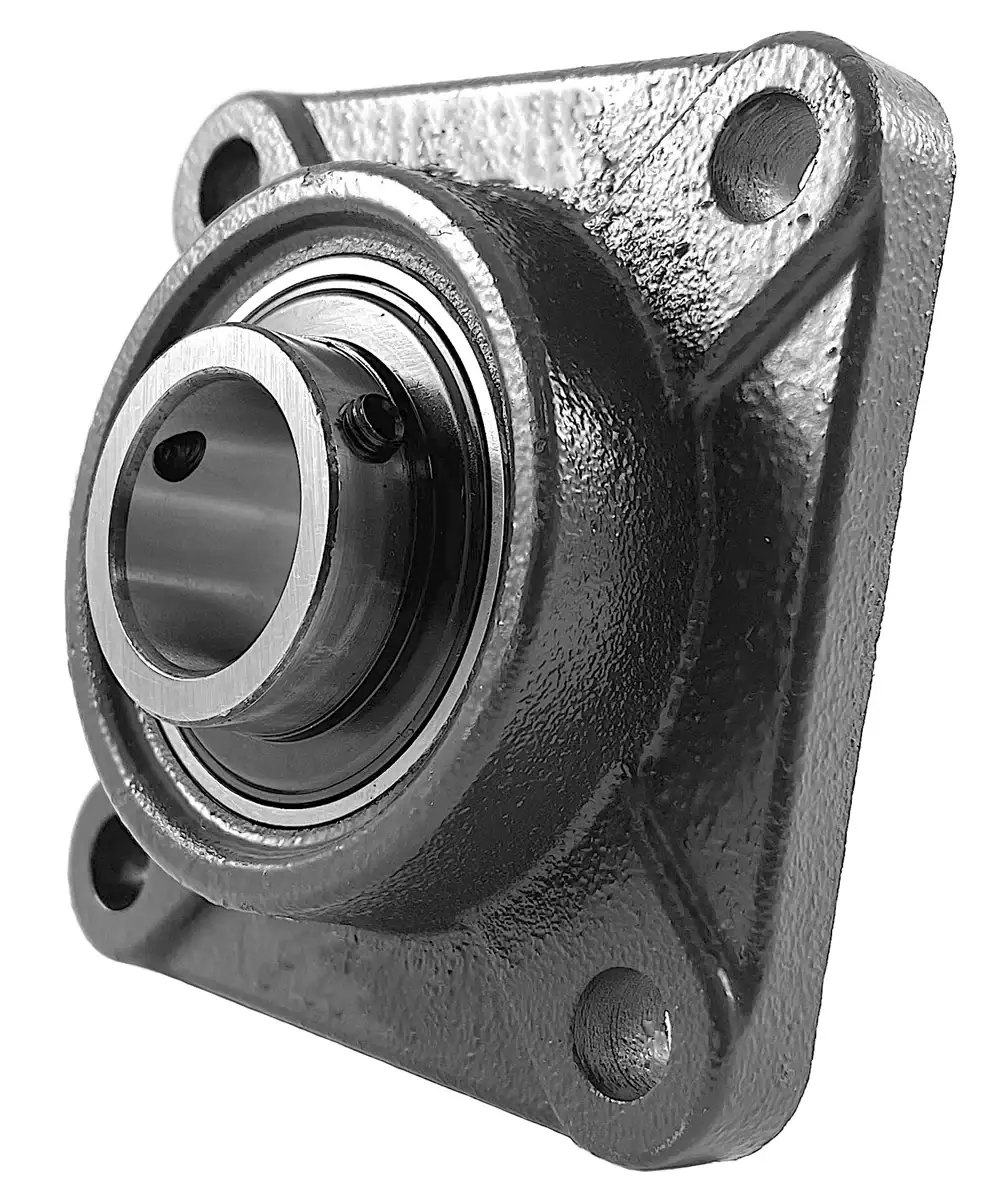

UCF208 bearing is a 40mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 40mm shaft. UCF208 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF208 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF208 bearings, and we will be happy to assist you!

UCF208 Bearing Dimensions

• Part #: UCF 208
• Shaft Diameter (d): 40mm
• Dimension (A): 130.0mm
• Dimension (E): 101.6mm
• Dimension (I): 21.0mm
• Dimension (G): 16.0mm
• Dimension (L): 36.0mm
• Dimension (S): 14.0mm
• Dimension (Z): 51.2mm
• Dimension (Bi): 49.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M12
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UC 208
• Housing Number: F 208
• Weight (kg): 2.5
