SER215-47 Bearing | 2-15/16" Insert Bearing With Snap Ring

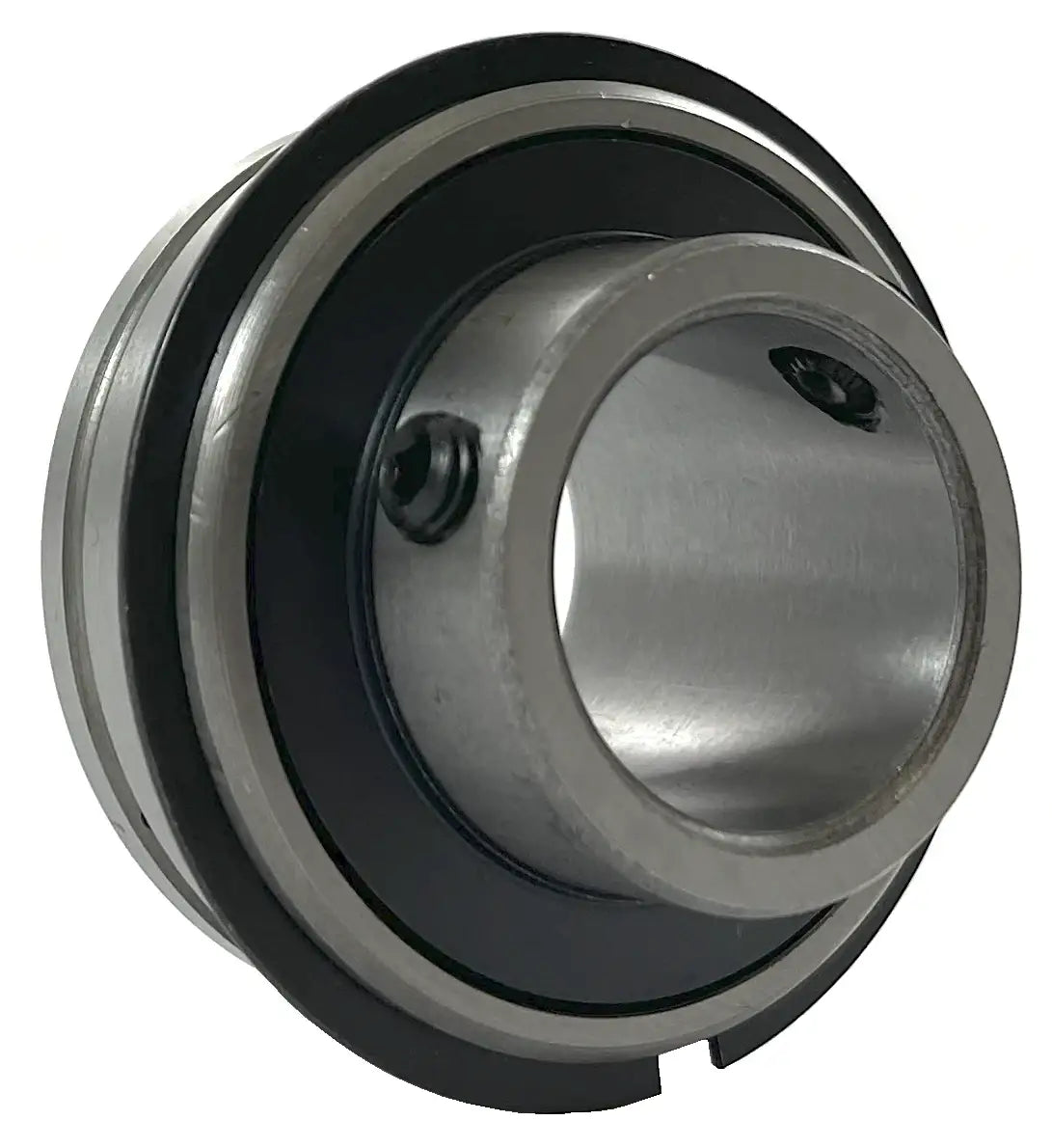

SER215-47 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 2-15/16" shaft. Our SER215-47 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER215-47 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER215-47 bearings, contact our customer service and, we will be happy to assist you!

SER215-47 Bearing Dimensions

• Part #: SER 215-47
• Shaft Diameter (d): 2-15/16"
• Setscrew Used: 7/16-20"
• Dimension (D): 5.1181"
• Dimension (Bi): 3.0630"
• Dimension (Be): 1.5000"
• Dimension (N): 1.3110"
• Dimension (M): 1.7520"
• Dimension (A): 0.1220"
• Dimension (AN): 0.1614"
• Dimension (Y): 5.5000"
• Dimension (G): 0.4724"
• Dimension (T): 0.3583"
• Dynamic Load Rating (LBS): 14,974
• Static Load Rating (LBS): 10,757
• Weight (LBS): 5.3
