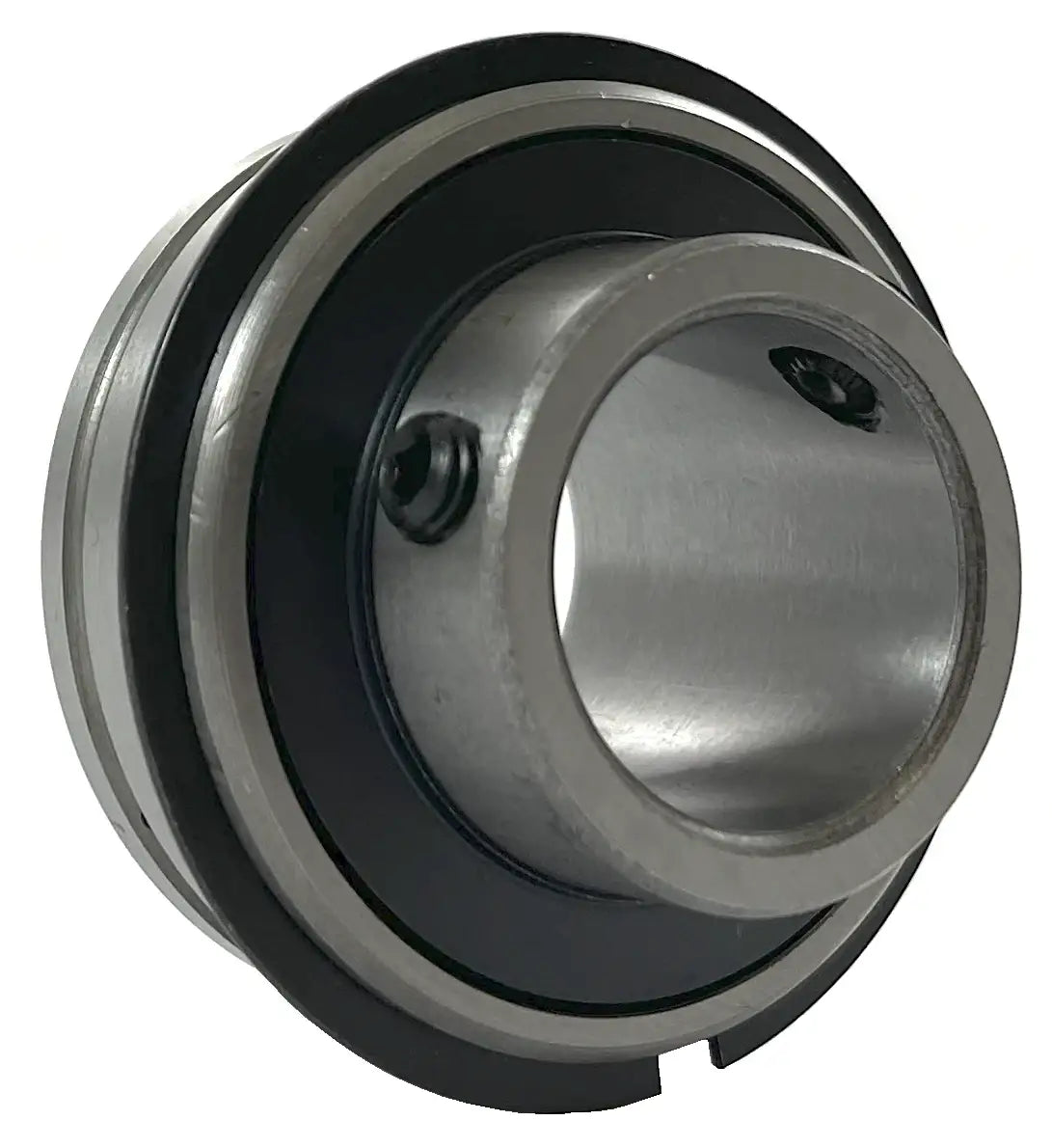

SER212 Insert Bearing | 60mm Insert Bearing With Snap Ring

SER212 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes set-screws to secure to a 60mm shaft. Our SER212 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SER212 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SER212 bearings, contact our customer service and, we will be happy to assist you!

SER212 Bearing Dimensions

• Part #: SER 212
• Shaft Diameter (d): 60mm
• Setscrew Used: M10 x 1.25
• Dimension (D): 110.0mm
• Dimension (Bi): 65.1mm
• Dimension (Be): 31.8mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Dimension (A): 2.4mm
• Dimension (AN): 3.2mm
• Dimension (Y): 116.6mm
• Dimension (G): 10.0mm
• Dimension (T): 8.4mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Weight (kg): 1.7
