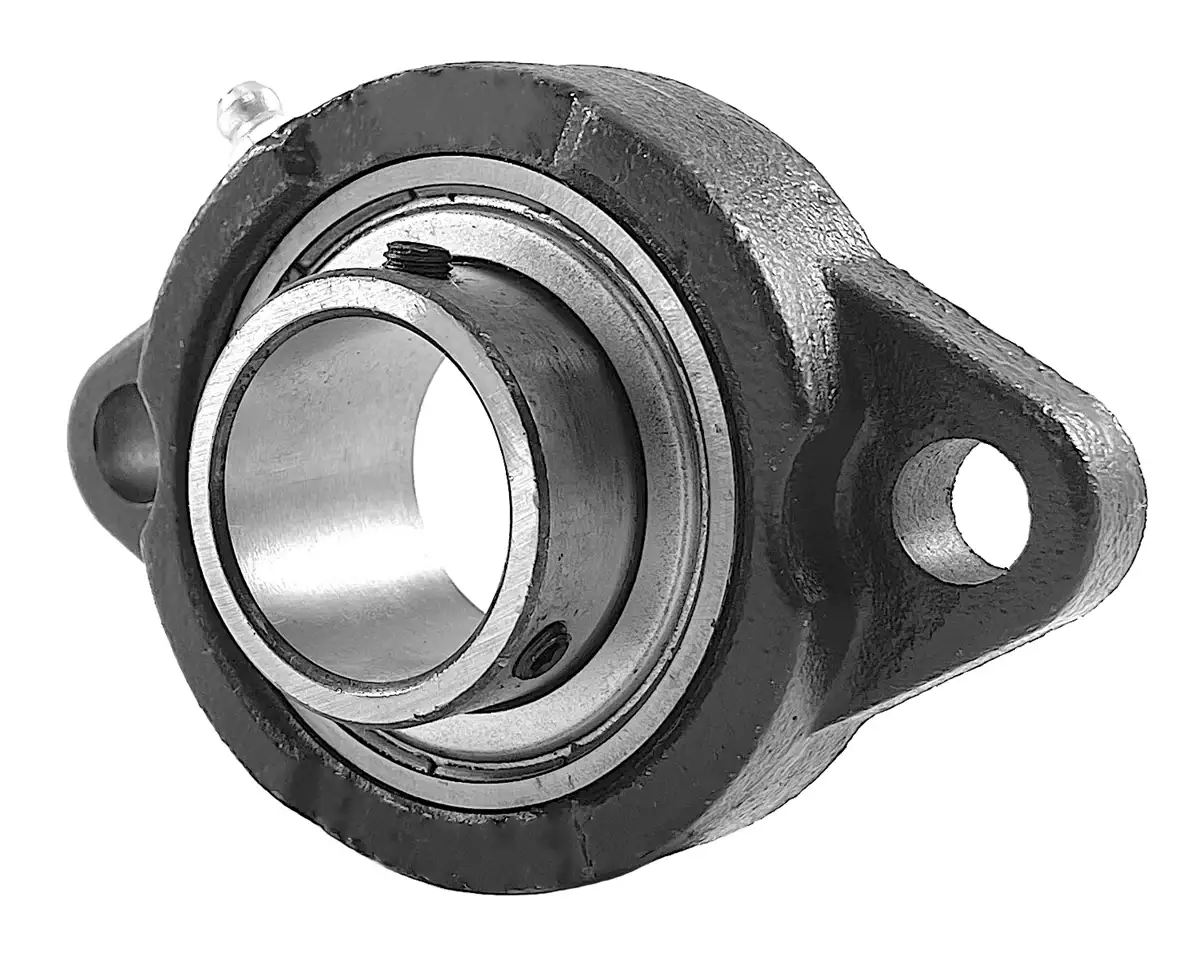

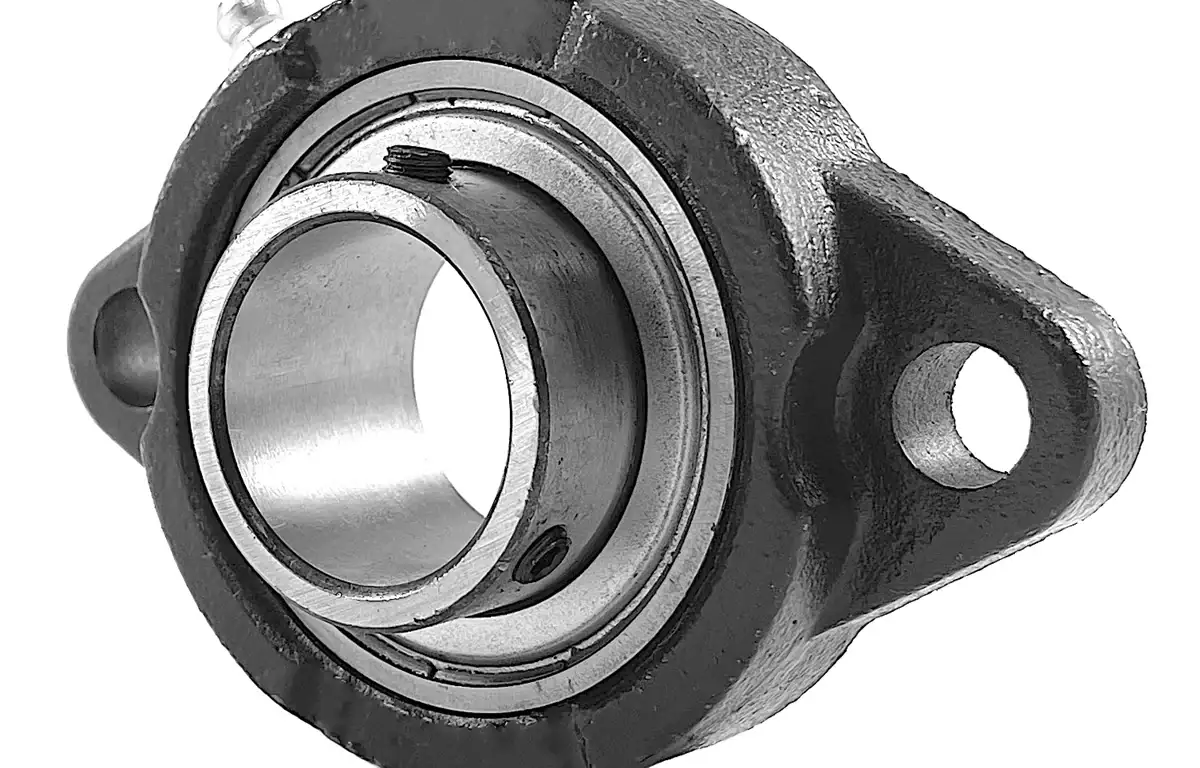

SBLF206-17 Bearing | 1-1/16" 2-Bolt Flange Bearing

SBLF206-17 bearing is a 1-1/16" bore two-bolt light-duty flange bearing that utilizes set screws to secure to a 1-1/16" shaft. SBLF206-17 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SBLF206-17 bearing with a 1-1/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBLF206-17 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBLF206-17 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBLF206-17 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBLF206-17 bearings, and we will be happy to assist you!

SBLF206-17 Bearing Dimensions

• Part #: SBLF 206-17
• Shaft Diameter (d): 1-1/16"
• Dimension (A): 113.0"
• Dimension (E): 90.5"
• Dimension (I): 12.0"
• Dimension (G): 12.0"
• Dimension (L): 23.0"
• Dimension (S): 12.0"
• Dimension (B): 76.0"
• Dimension (Z): 34.0"
• Dimension (Bi): 30.0"
• Dimension (N): 8.0"
• Dimension (M): 22.0"
• Bolt Used: M10
• Dynamic Load Rating (LBS): 19.47
• Static Load Rating (LBS): 11.43
• Bearing Insert: SB 206-17
• Housing Number: LF 206
• Weight (LBS): 202
