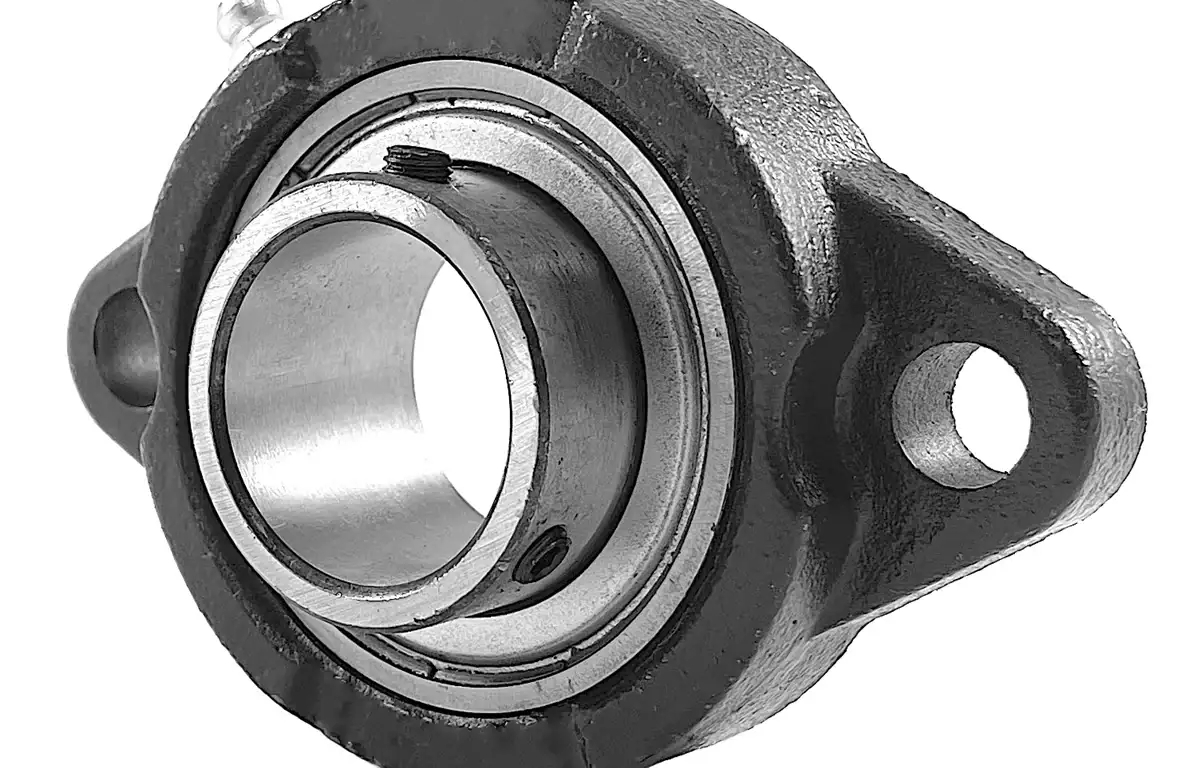

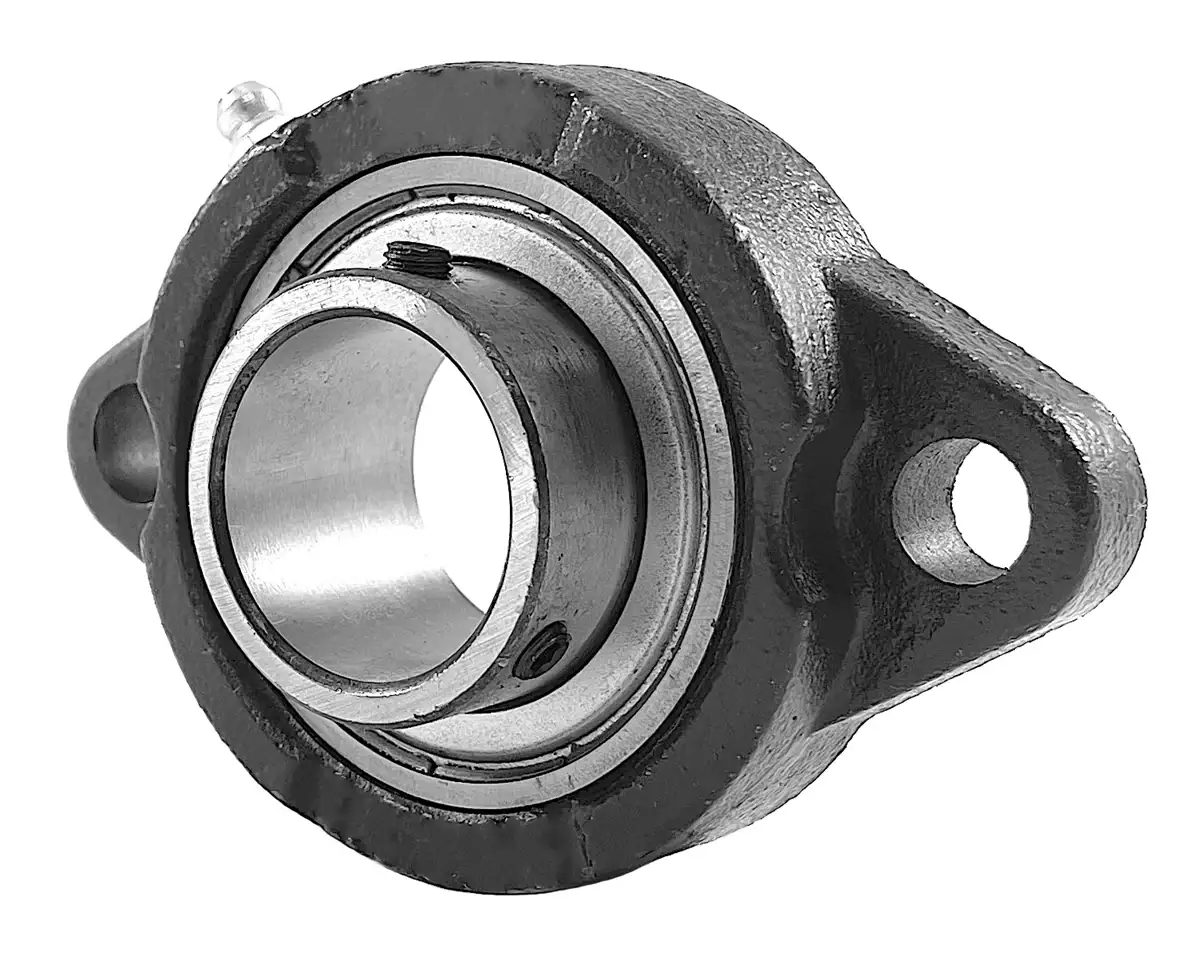

SBLF204-12 Bearing | 3/4" 2-Bolt Flange Bearing

SBLF204-12 bearing is a 3/4" bore two-bolt light-duty flange bearing that utilizes set screws to secure to a 3/4" shaft. SBLF204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior SBLF204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBLF204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBLF204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBLF204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBLF204-12 bearings, and we will be happy to assist you!

SBLF204-12 Bearing Dimensions

• Part #: SBLF 204-12
• Shaft Diameter (d): 3/4"
• Dimension (A): 3.54"
• Dimension (E): 2.815"
• Dimension (I): 0.43"
• Dimension (G): 0.43"
• Dimension (L): 0.79"
• Dimension (S): 0.39"
• Dimension (B): 2.40"
• Dimension (Z): 1.14"
• Dimension (Bi): 0.9843"
• Dimension (N): 0.2756"
• Dimension (M): 0.7087"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: SB 204-12
• Housing Number: LF 204
• Weight (LBS): 0.5
