SA204 Insert Bearing | 20mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$18.75
SKU: 2278-SA-204-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SA204 Insert Bearing | 20mm Insert Bearing Features
SA204 Insert Bearing | 20mm Insert Bearing Specifications

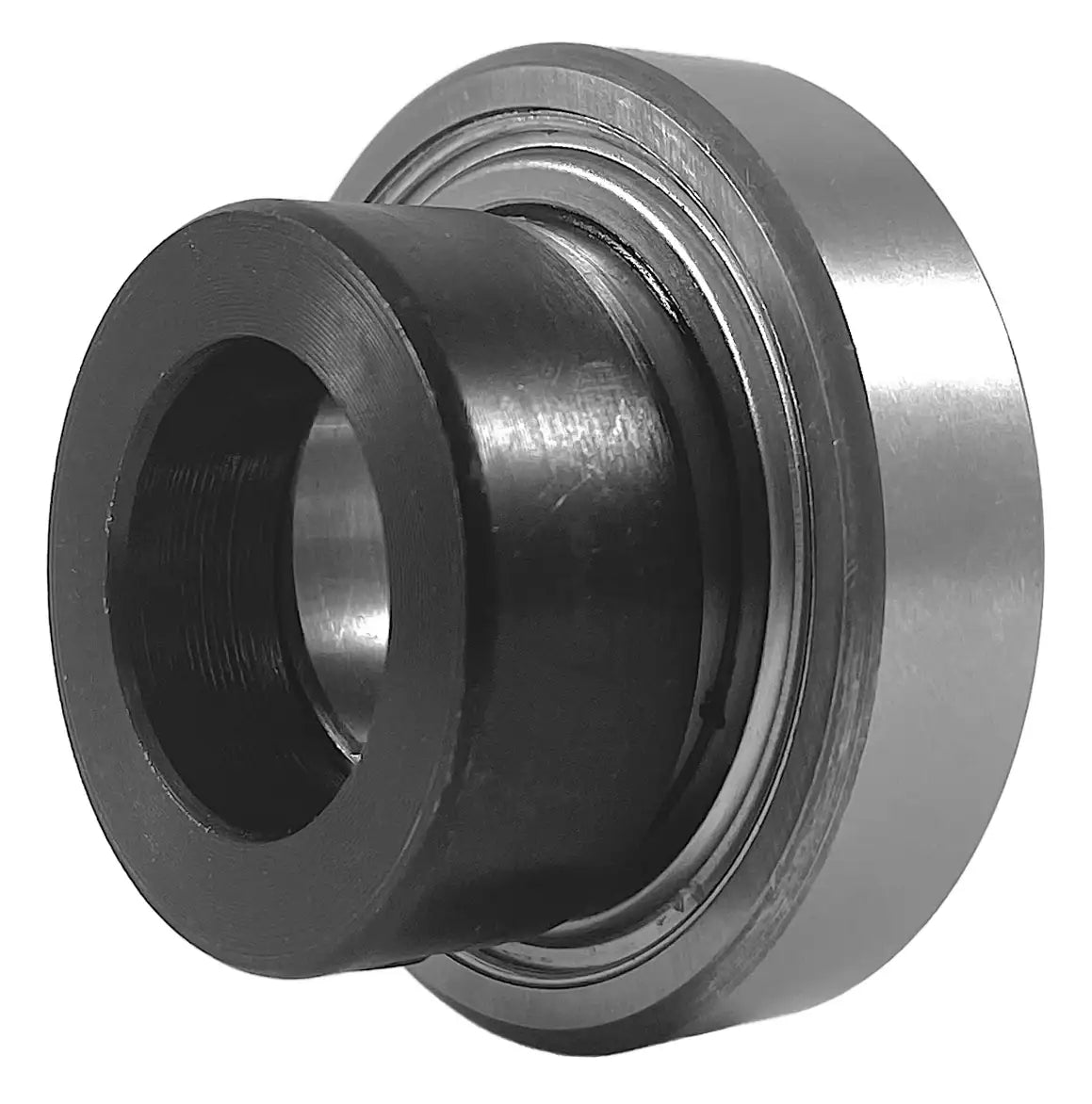

SA204 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 20mm shaft. Our SA204 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our SA204 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our SA204 bearings, contact our customer service and, we will be happy to assist you!
SA204 Bearing Dimensions
- Part #: SA 204
- Shaft Diameter (d): 20mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 31.0mm
- Dimension (Be): 14.0mm
- Dimension (N): 7.0mm
- Dimension (M): 14.5mm
- Dimension (W): 33.3mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kg): 0.2
- Part #: SA 204
- Shaft Diameter (d): 20mm
- Setscrew Used: M6 x 1
- Dimension (D): 47.0mm
- Dimension (Bi): 31.0mm
- Dimension (Be): 14.0mm
- Dimension (N): 7.0mm
- Dimension (M): 14.5mm
- Dimension (W): 33.3mm
- Dimension (K): 13.5mm
- Dimension (G): 5.0mm
- Dimension (T): 4.0mm
- Dynamic Load Rating (kN): 12.82
- Static Load Rating (kN): 6.65
- Weight (kg): 0.2
