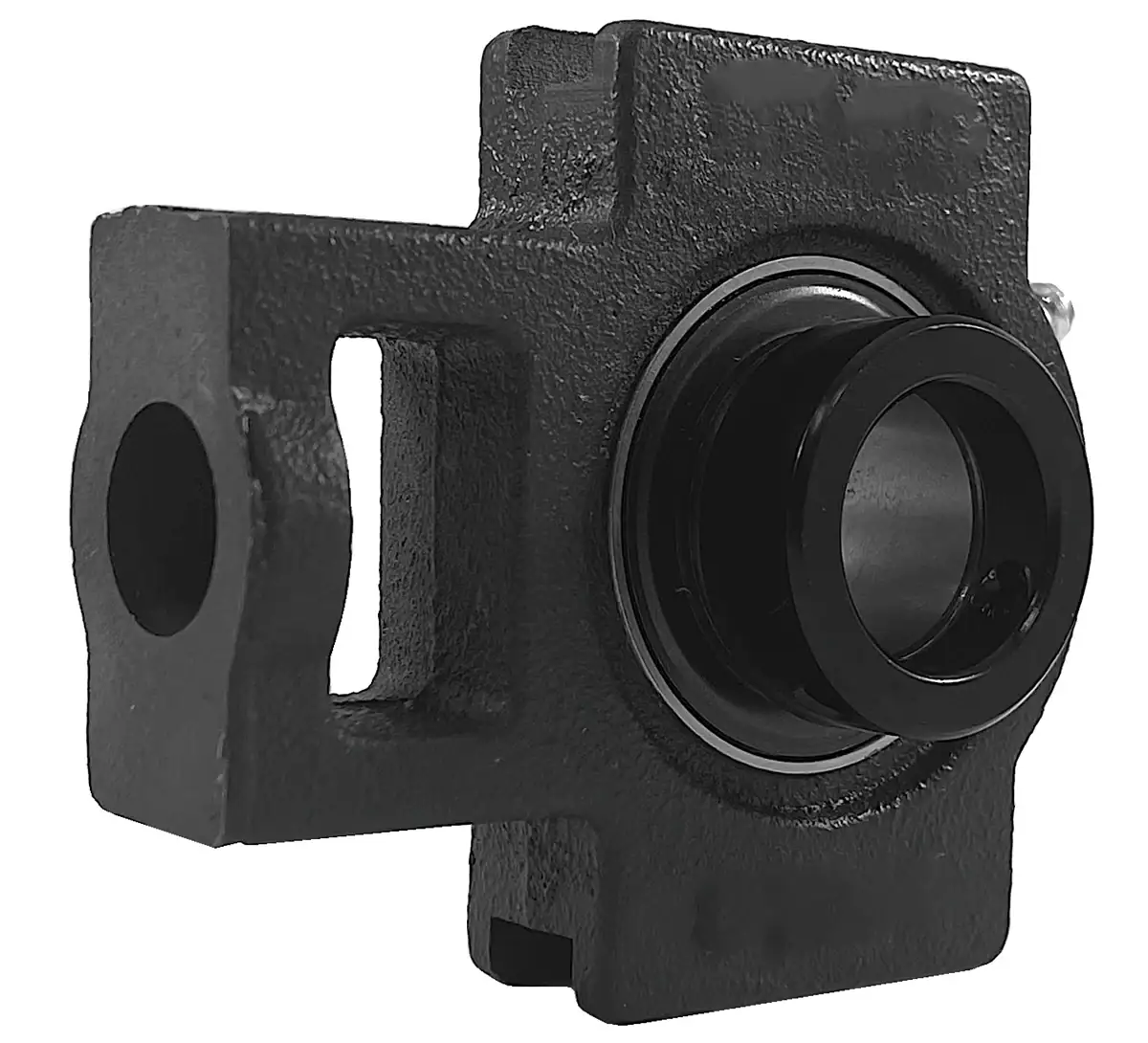

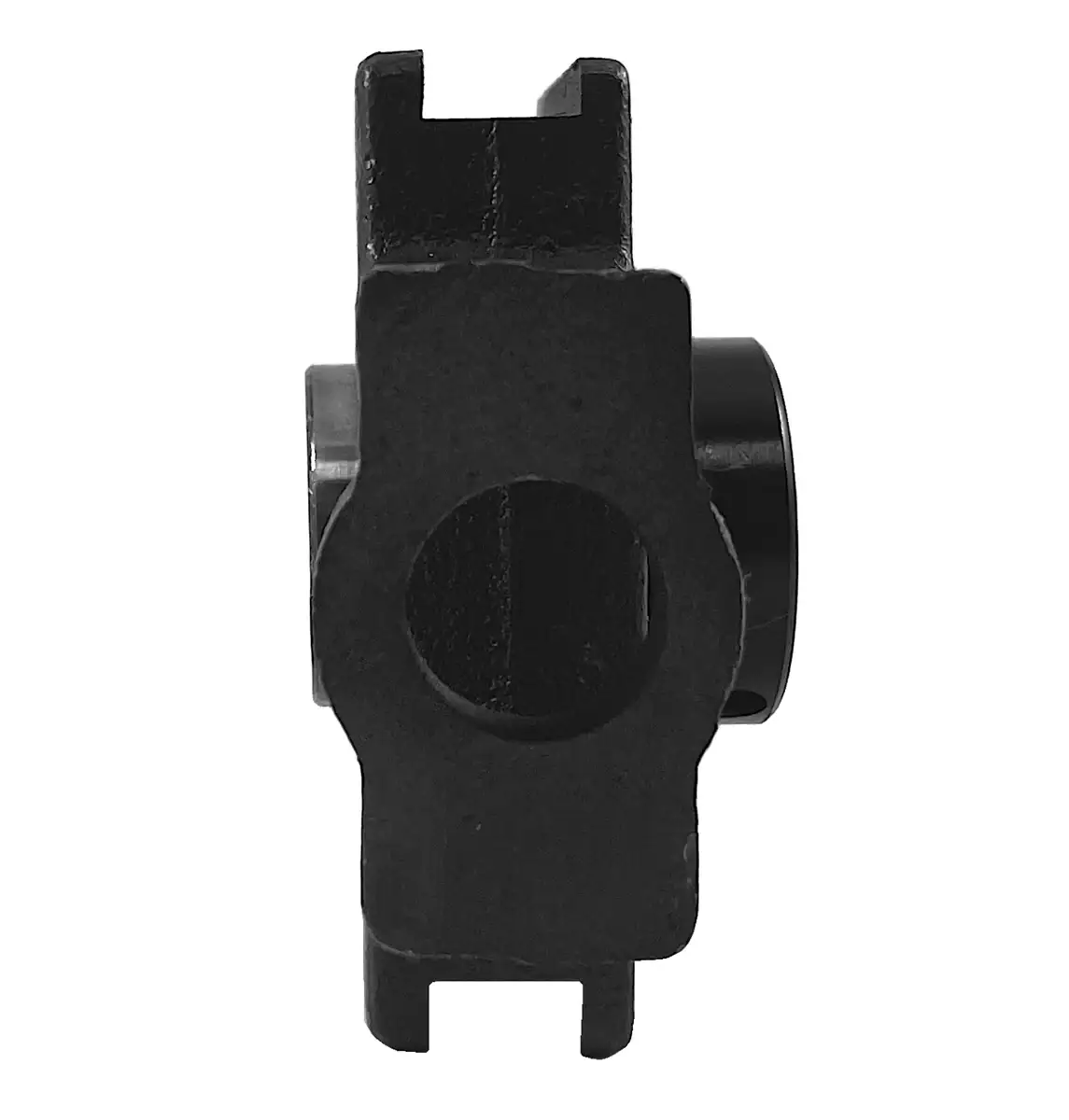

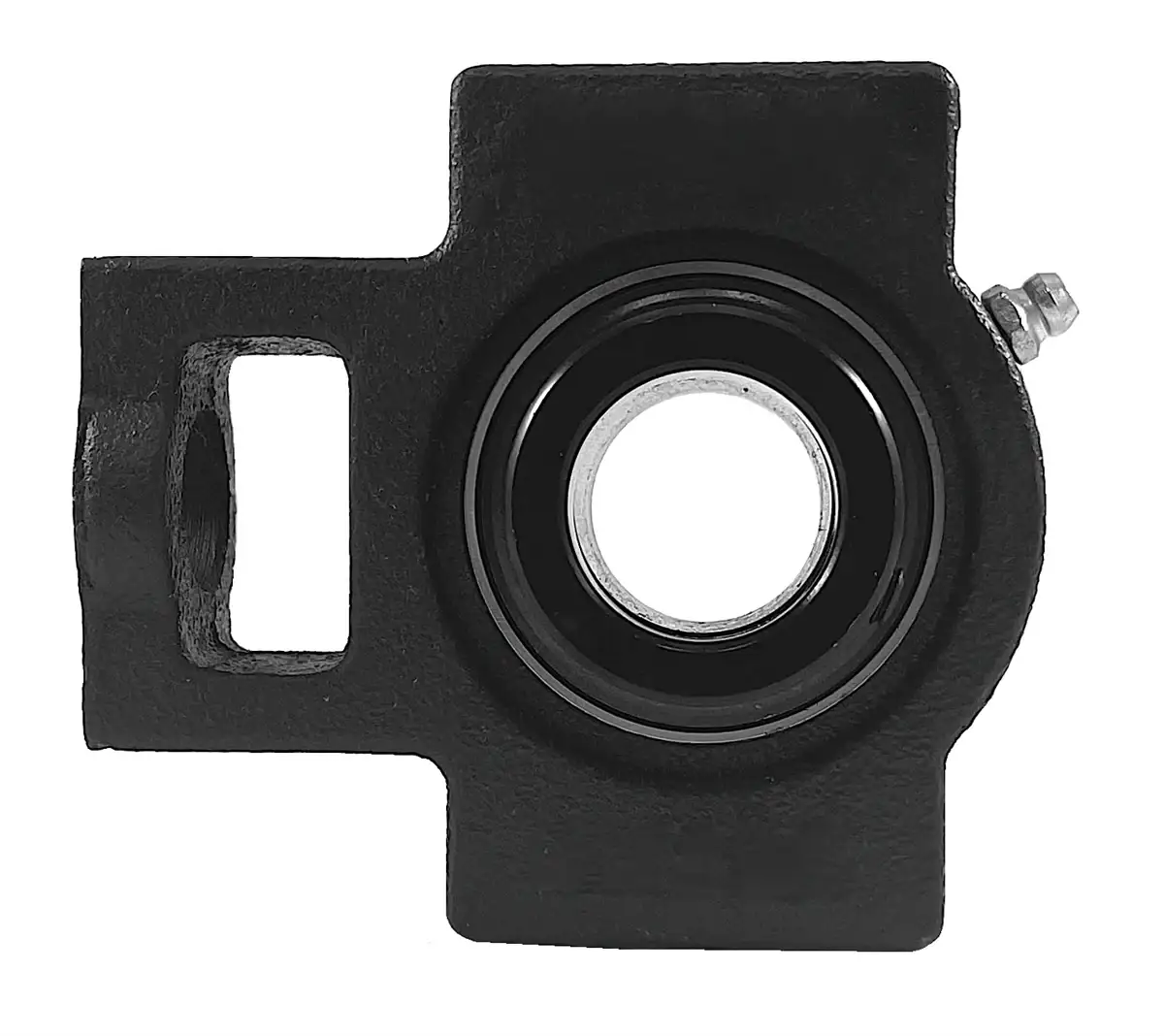

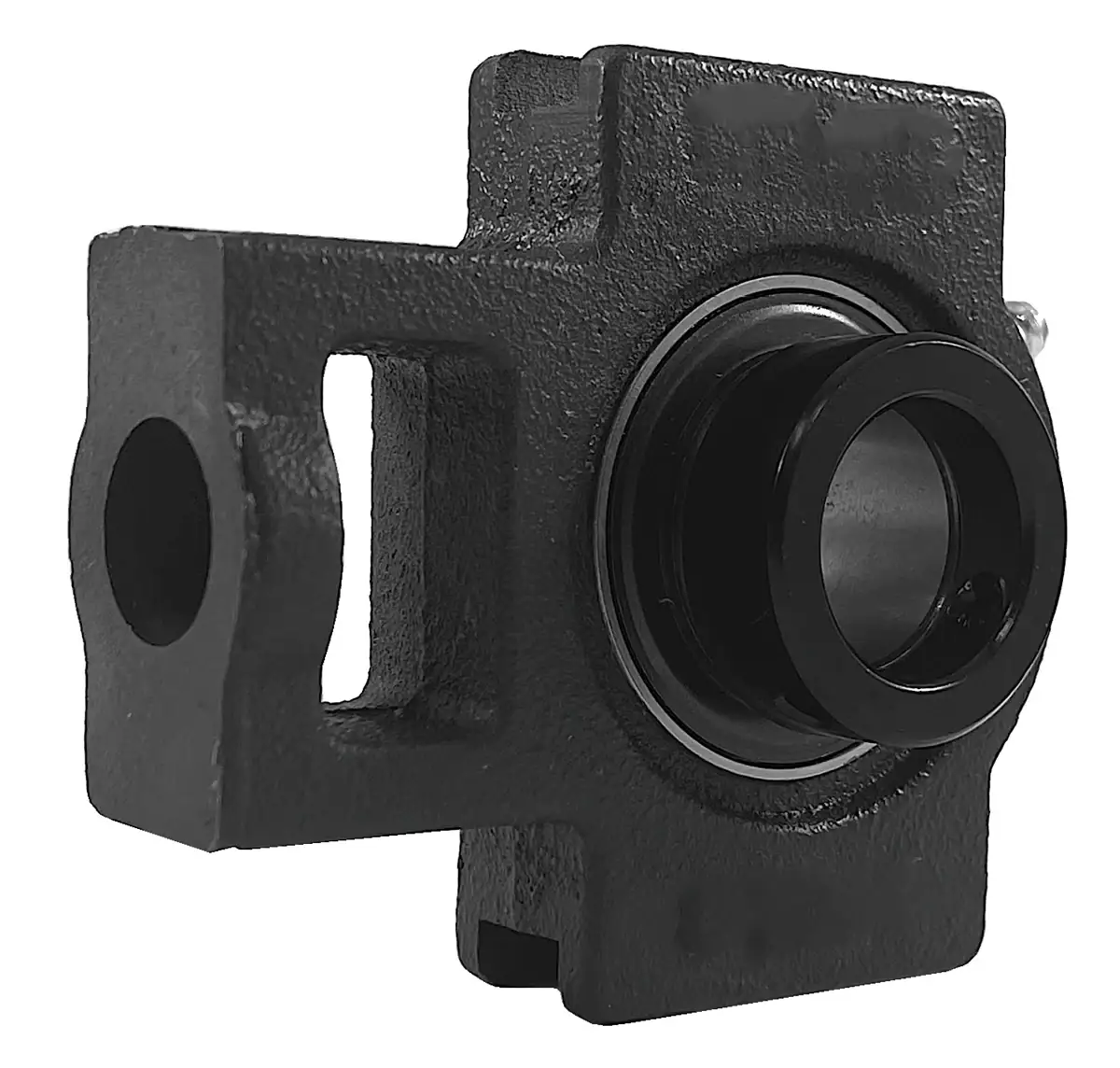

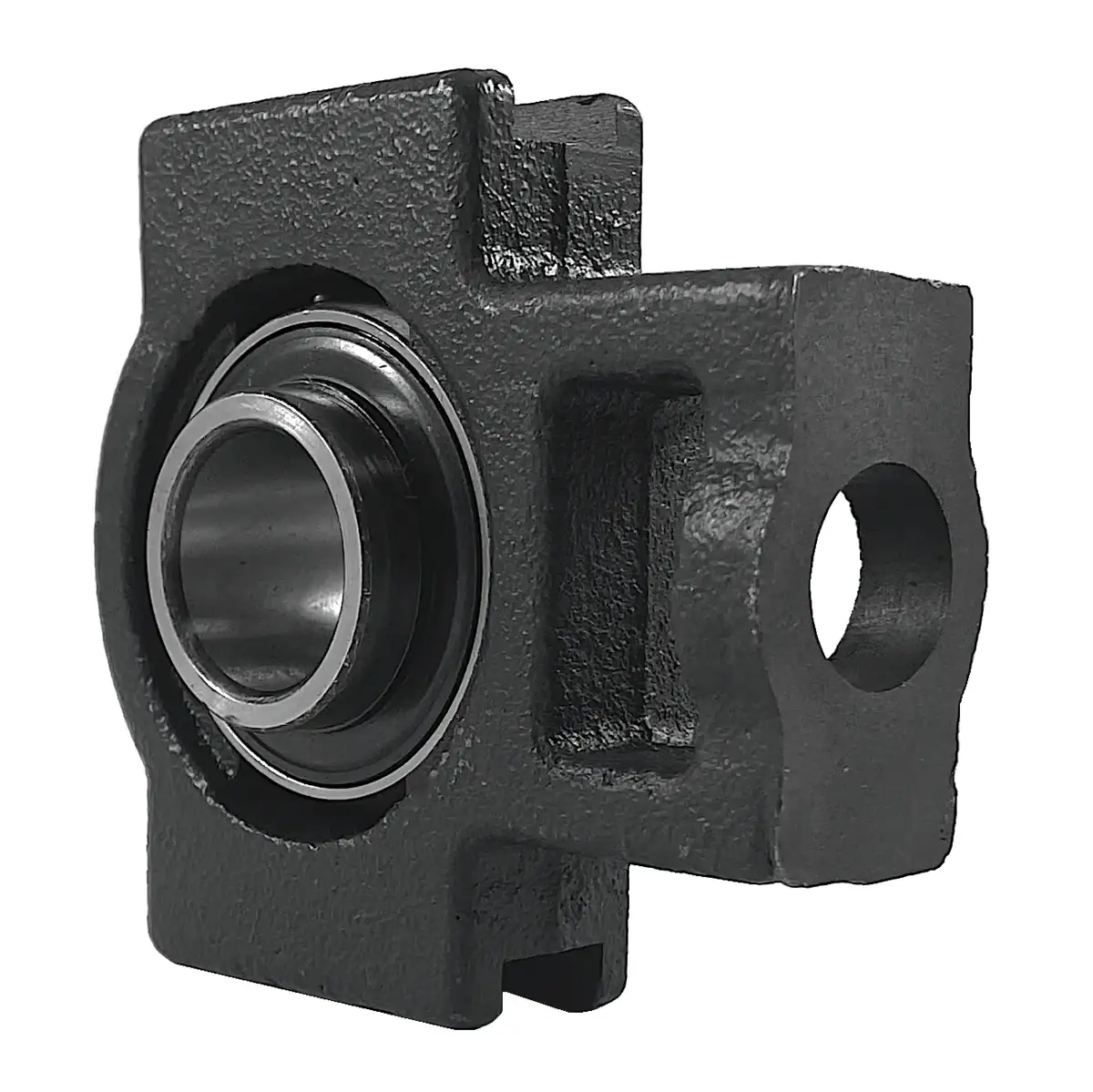

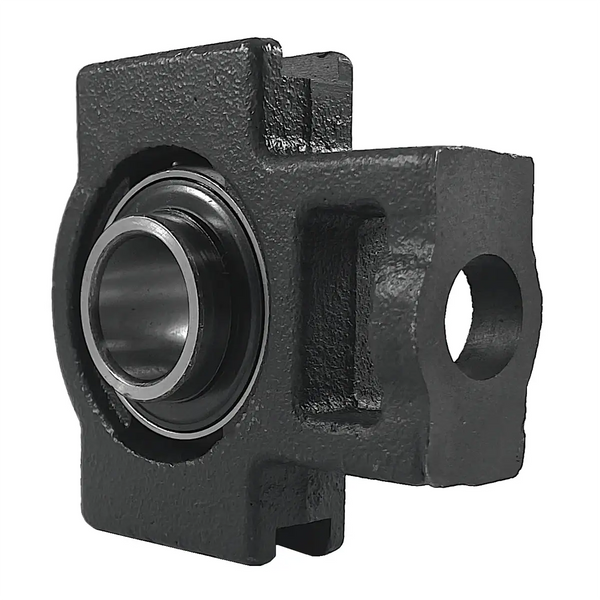

HCST201 Bearing | 12mm Eccentric Locking Take-Up Bearing

HCST201 bearing is a 12mm bore normal-duty take-up bearing that utilizes an eccentric locking collar to secure to a 12mm shaft. HCST201 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior HCST201 bearing with a 12mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our HCST201 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our HCST201 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCST201 bearings, and we will be happy to assist you!

HCST201 Take-Up Bearing Dimensions

• Part #: HCST201
• Shaft Diameter (d): 12mm
• Dimension (O): 16.0mm
• Dimension (G): 10.0mm
• Dimension (P): 51.0mm
• Dimension (Q): 32.0mm
• Dimension (S): 19.0mm
• Dimension (B): 51.0mm
• Dimension (K): 13.5mm
• Dimension (E): 76.2mm
• Dimension (A): 89.0mm
• Dimension (W): 94.0mm
• Dimension (J): 32.0mm
• Dimension (L): 21.0mm
• Dimension (H): 60.0mm
• Dimension (Bi): 43.7mm
• Dimension (N): 17.1mm
• Dimension (M): 17.1mm
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: HC 201
• Housing Number: ST 204
• Weight (kg): 0.5
