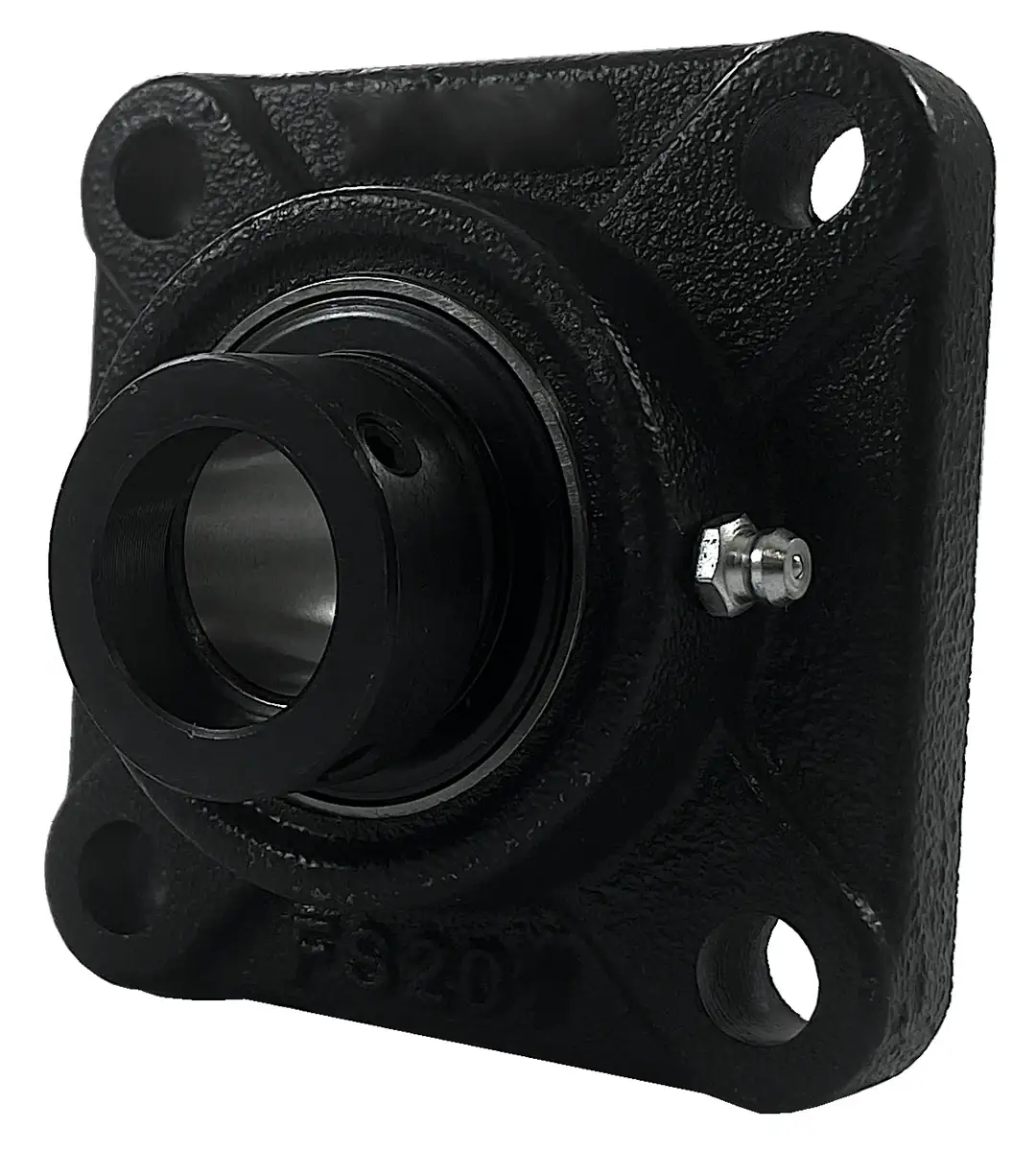

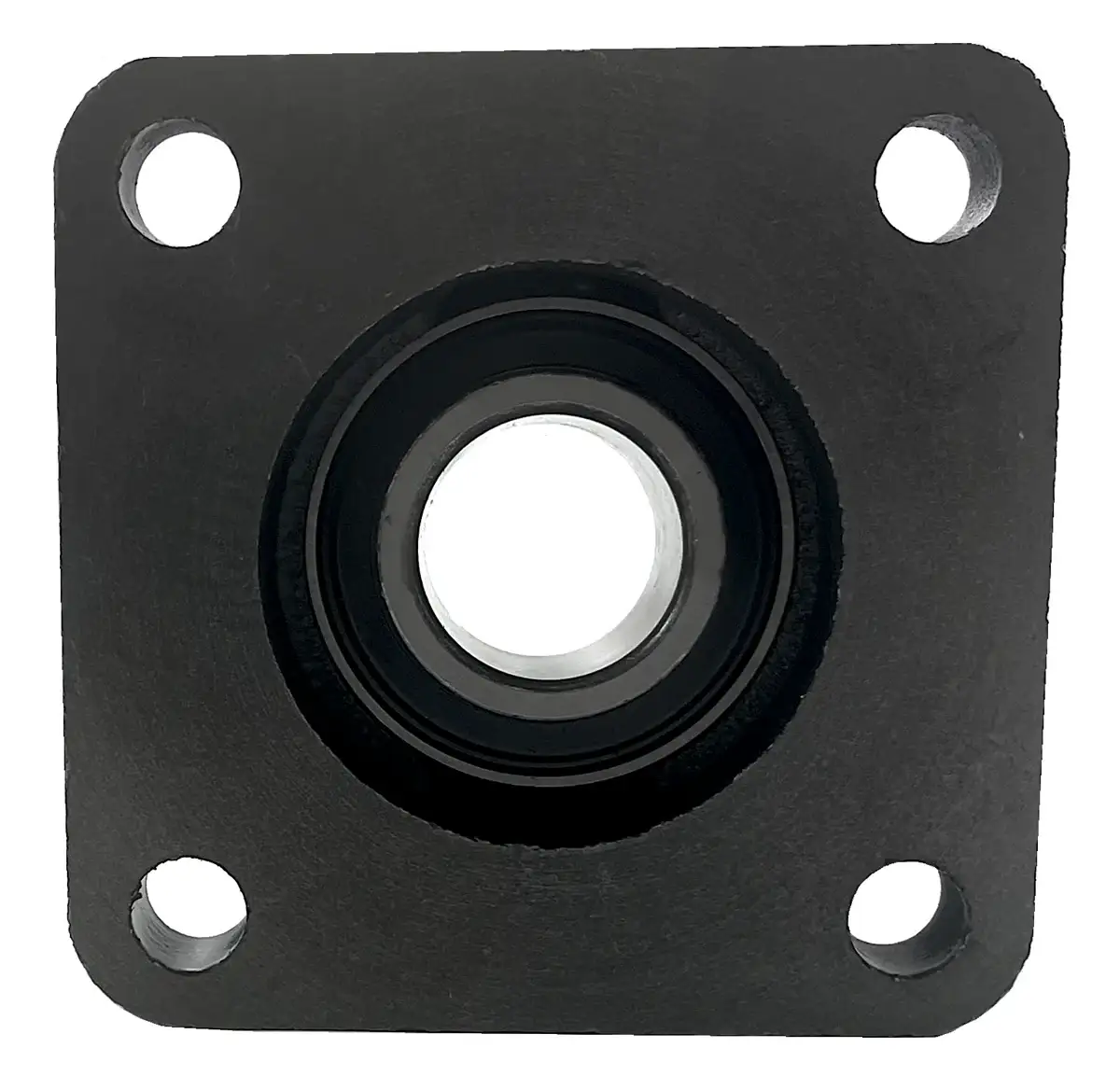

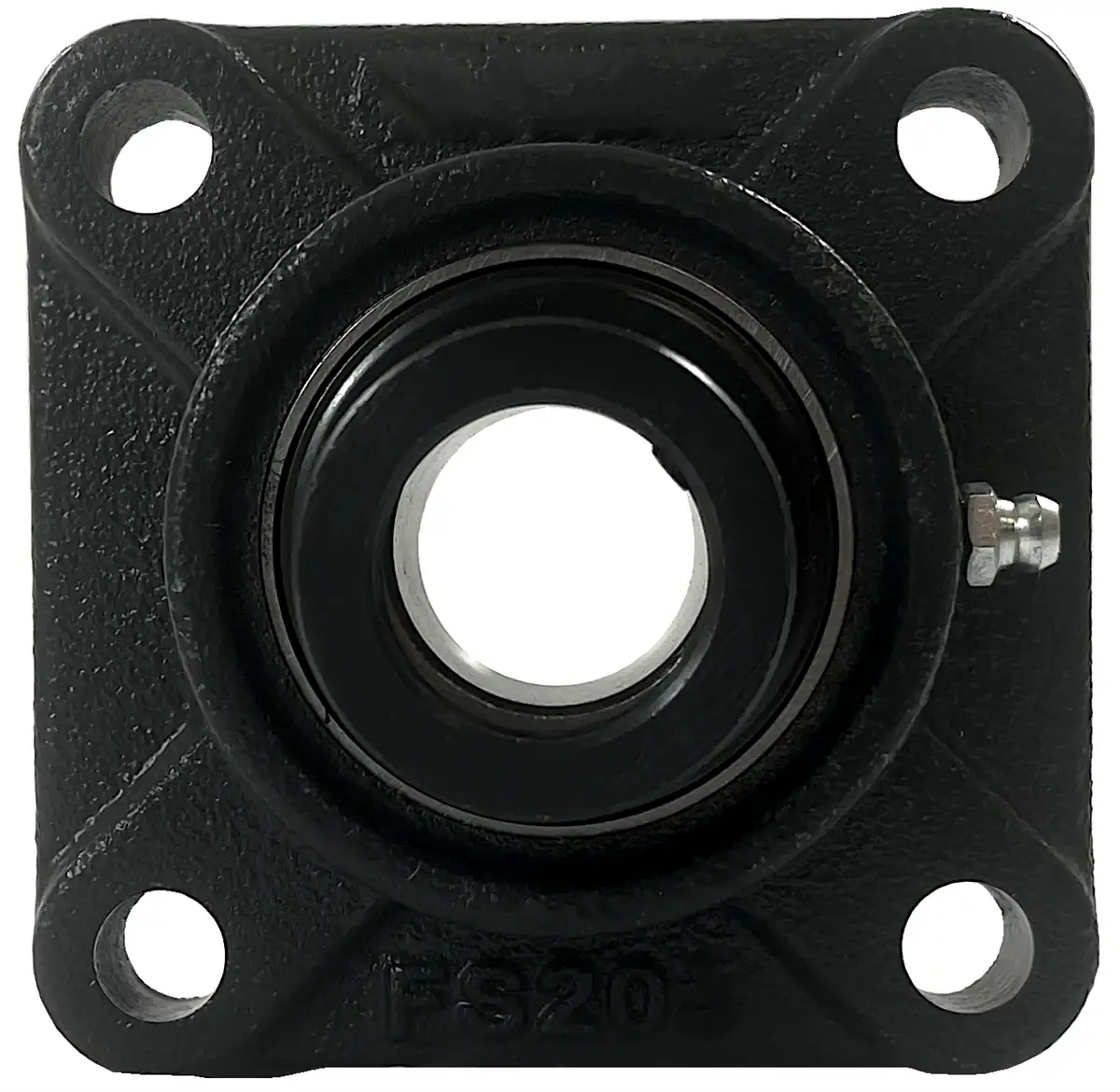

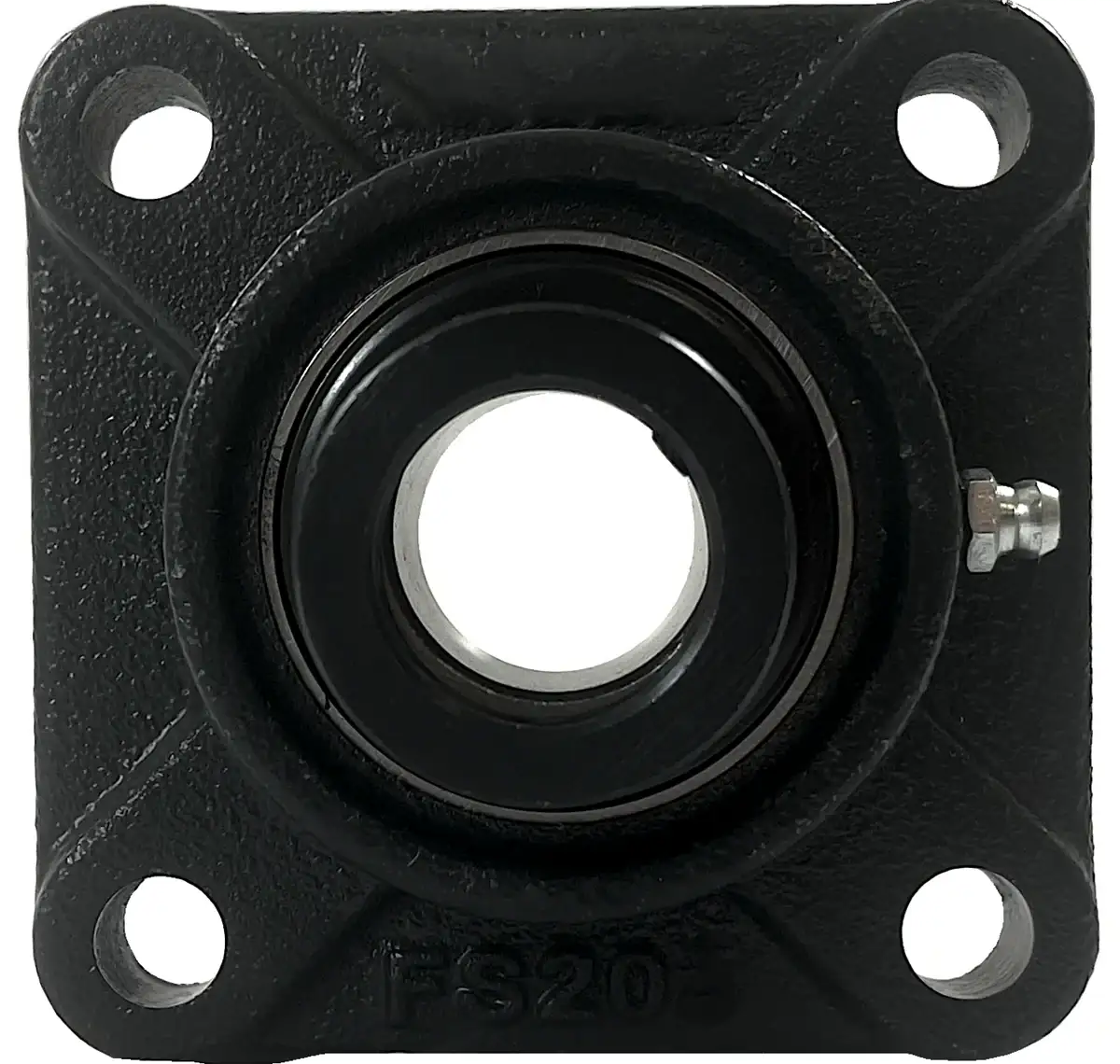

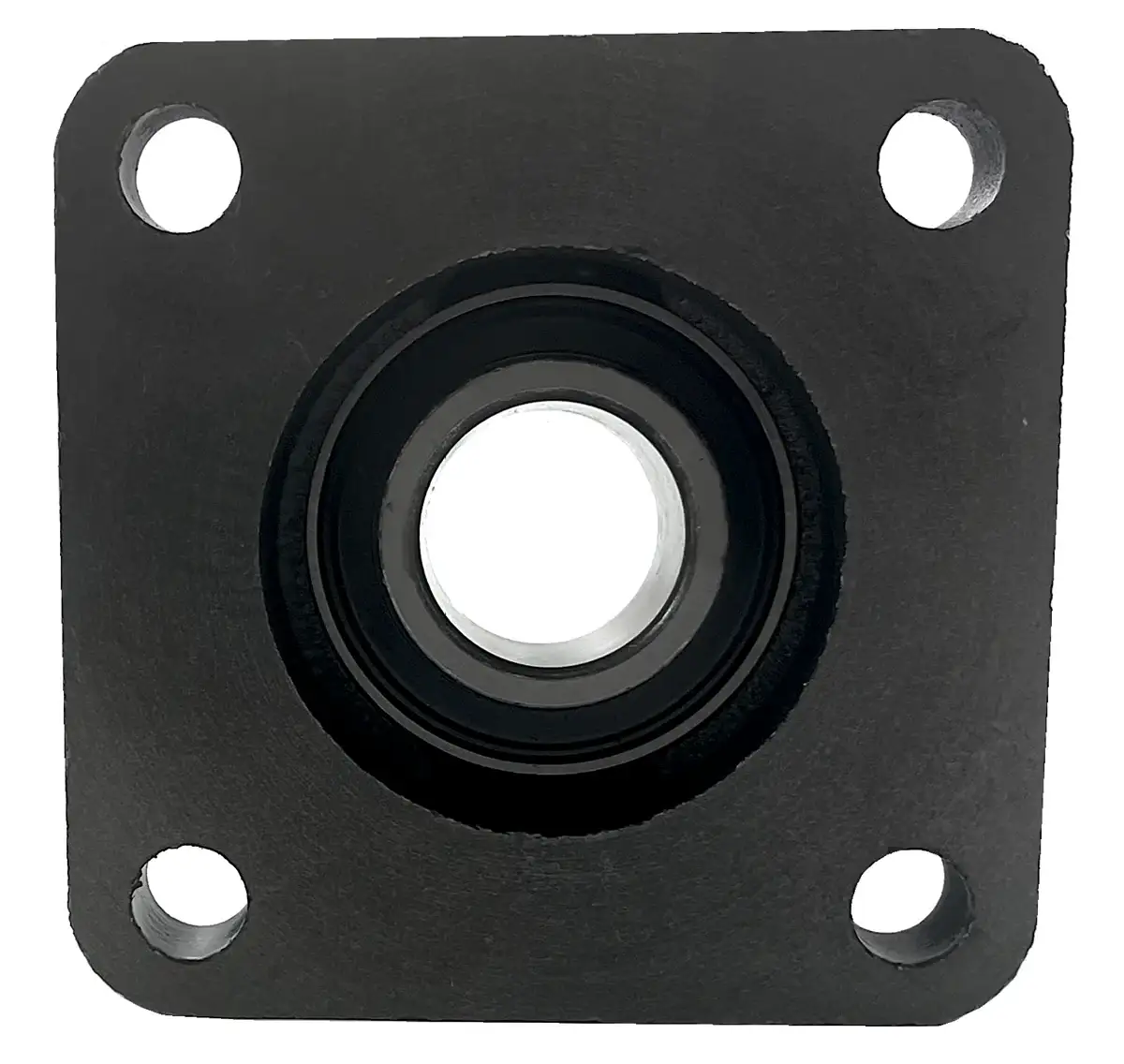

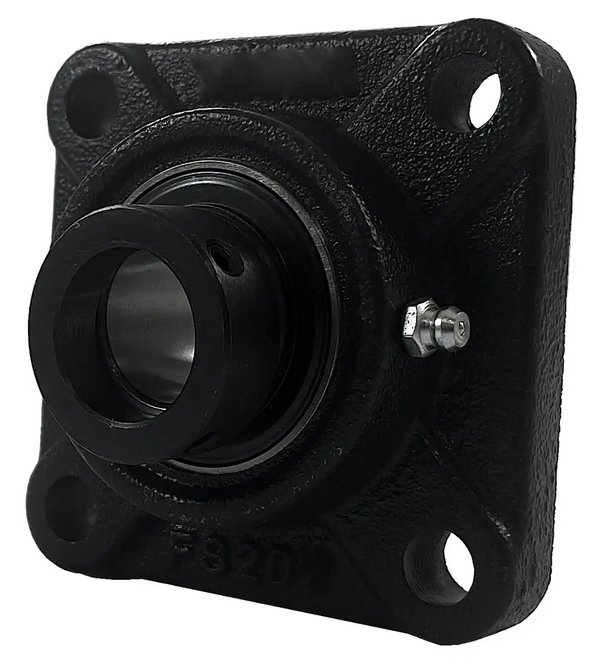

HCFS201 Bearing | 12mm 4-Bolt Eccentric Locking Bearing

HCFS201 bearing is a 12mm bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 12mm shaft. HCWF201 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCWF201 bearing with a 12mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCWF201 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCWF201 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCWF201 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCWF201 bearings, and we will be happy to assist you!

HCWF201 Bearing Dimensions

• Part #: HCFS 201
• Shaft Diameter (d): 12mm
• Dimension (A): 76.0mm
• Dimension (E): 54.0mm
• Dimension (I): 15.0mm
• Dimension (G): 11.0mm
• Dimension (L): 25.5mm
• Dimension (S): 11.0mm
• Dimension (Z): 38.4mm
• Dimension (Bi): 37.3mm
• Dimension (N): 13.9mm
• Dimension (M): 13.9mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 9.55
• Static Load Rating (kN): 4.78
• Bearing Insert: HCW 201
• Housing Number: WF 203
• Weight (kN): 0.6
