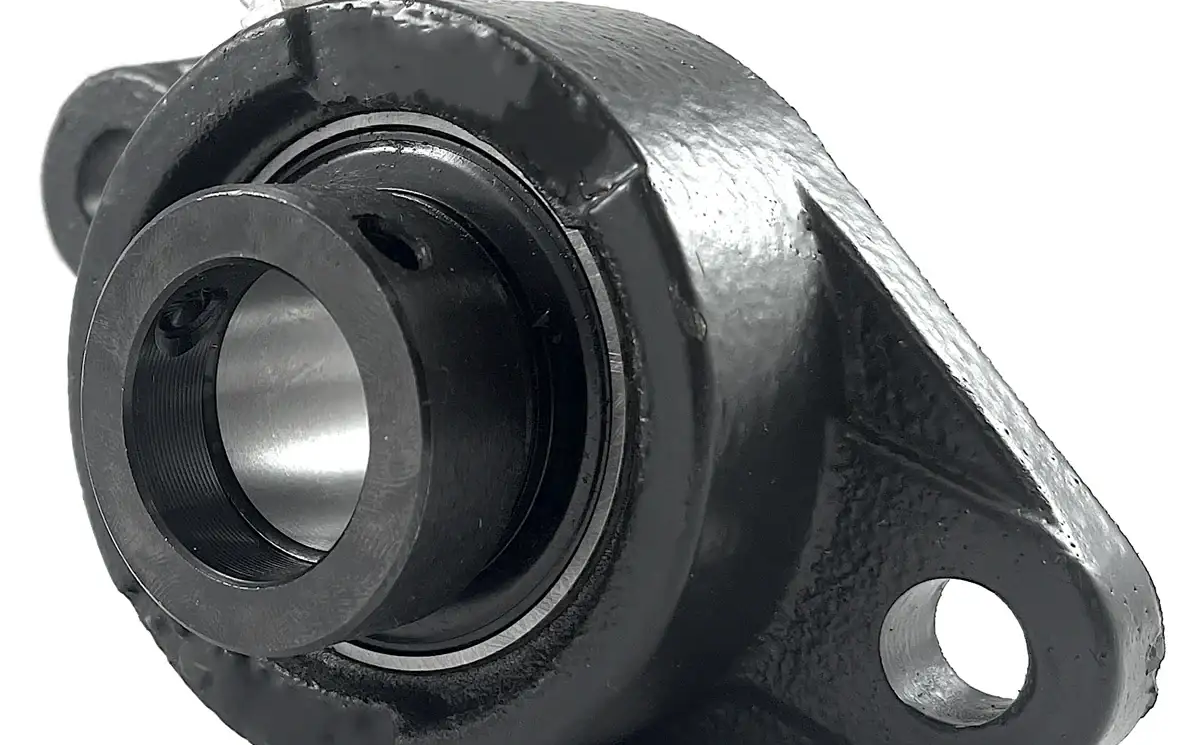

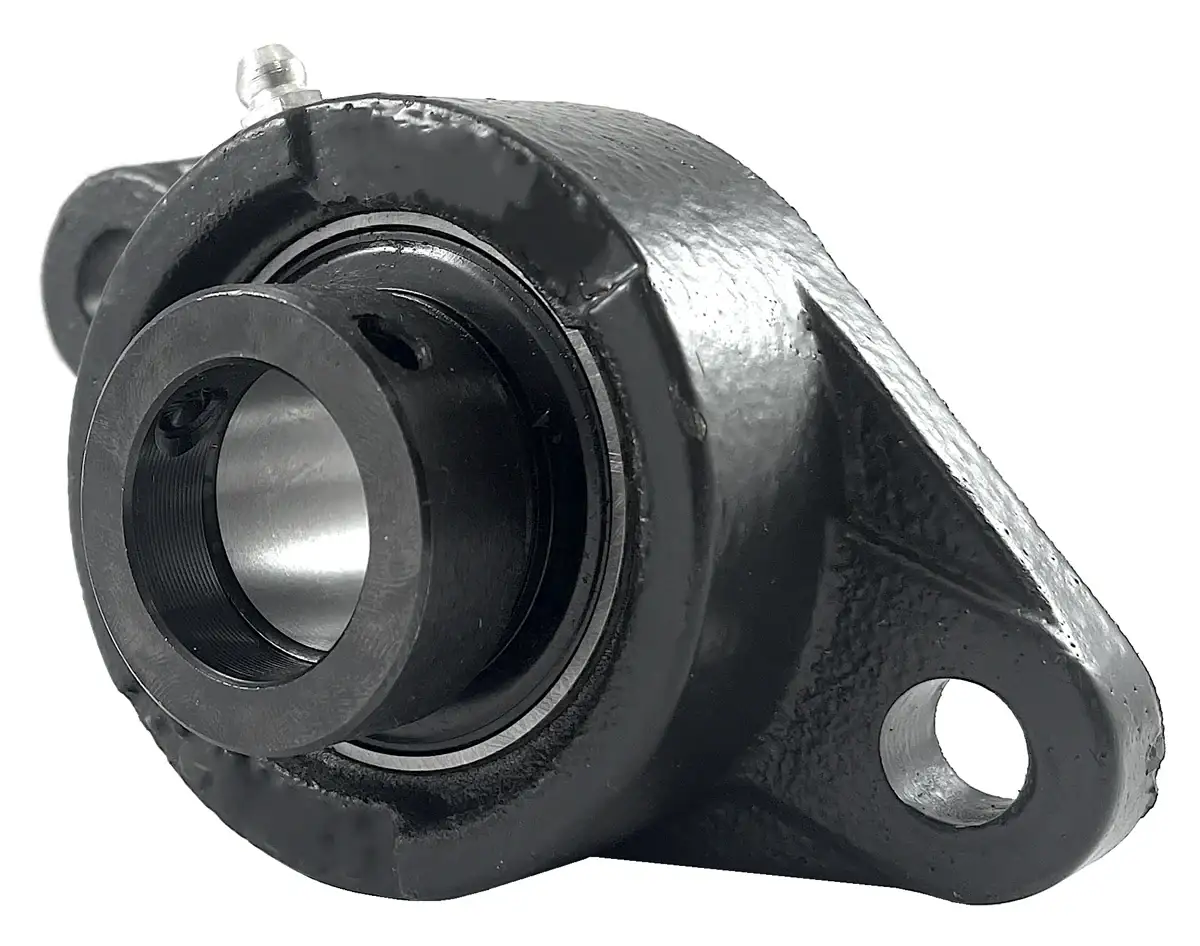

HCFJT208-25 Bearing | 1-9/16" 2-Bolt Eccentric Locking Bearing

HCFJT208-25 bearing is a 1-9/16" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 1-9/16" shaft. HCFJT208-25 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT208-25 bearing with a 1-9/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT208-25 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT208-25 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT208-25 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT208-25 bearings, and we will be happy to assist you!

HCFJT208-25 Bearing Dimensions

• Part #: HCFJT 208-25
• Shaft Diameter (d): 1-9/16"
• Dimension (A): 6.78"
• Dimension (E): 5.656"
• Dimension (I): 0.94"
• Dimension (G): 0.59"
• Dimension (L): 1.69"
• Dimension (S): 0.51"
• Dimension (B): 4.13"
• Dimension (Z): 2.31"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079

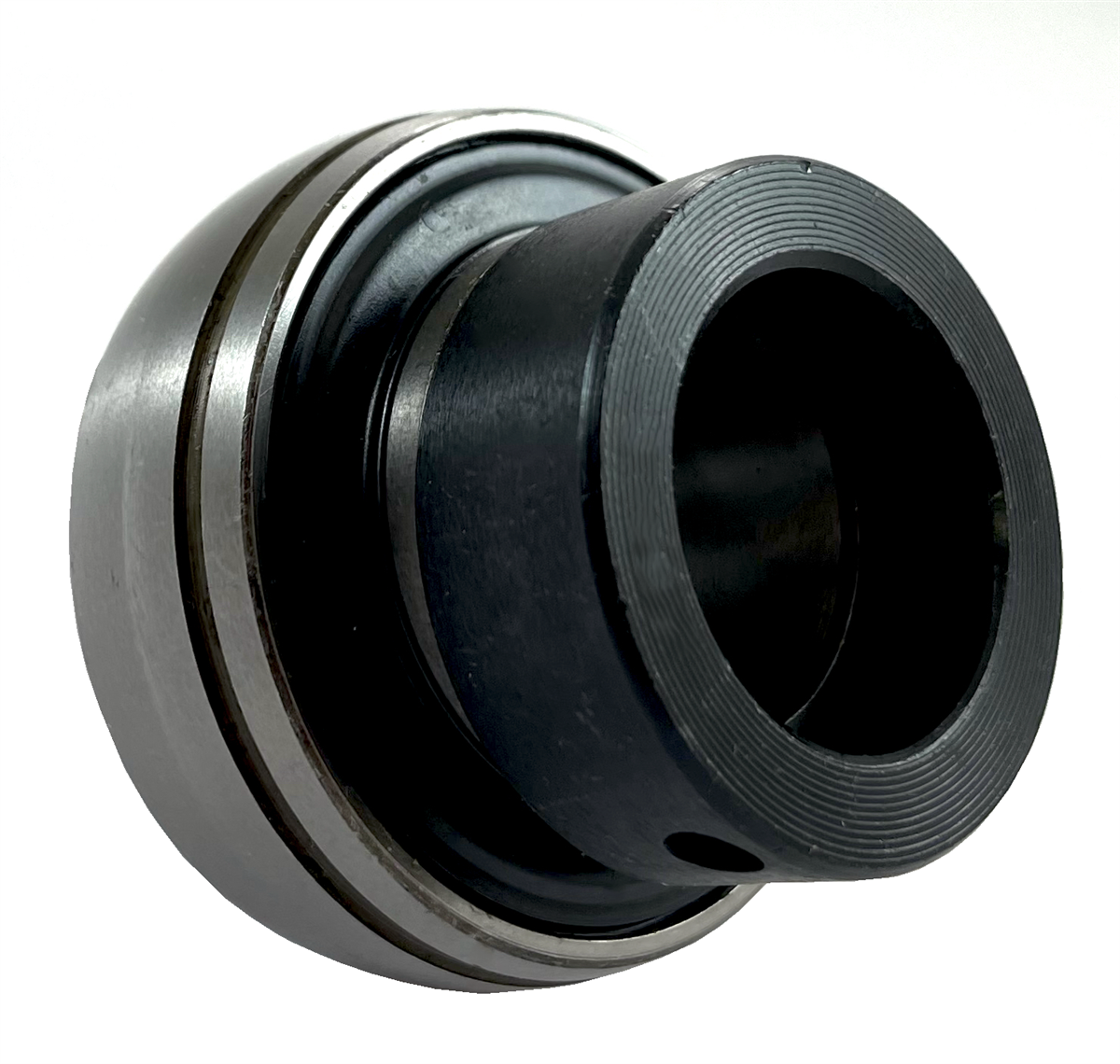

• Bearing Insert: HC 208-25
• Housing Number: FJT 208
• Weight (LBS): 4.6
