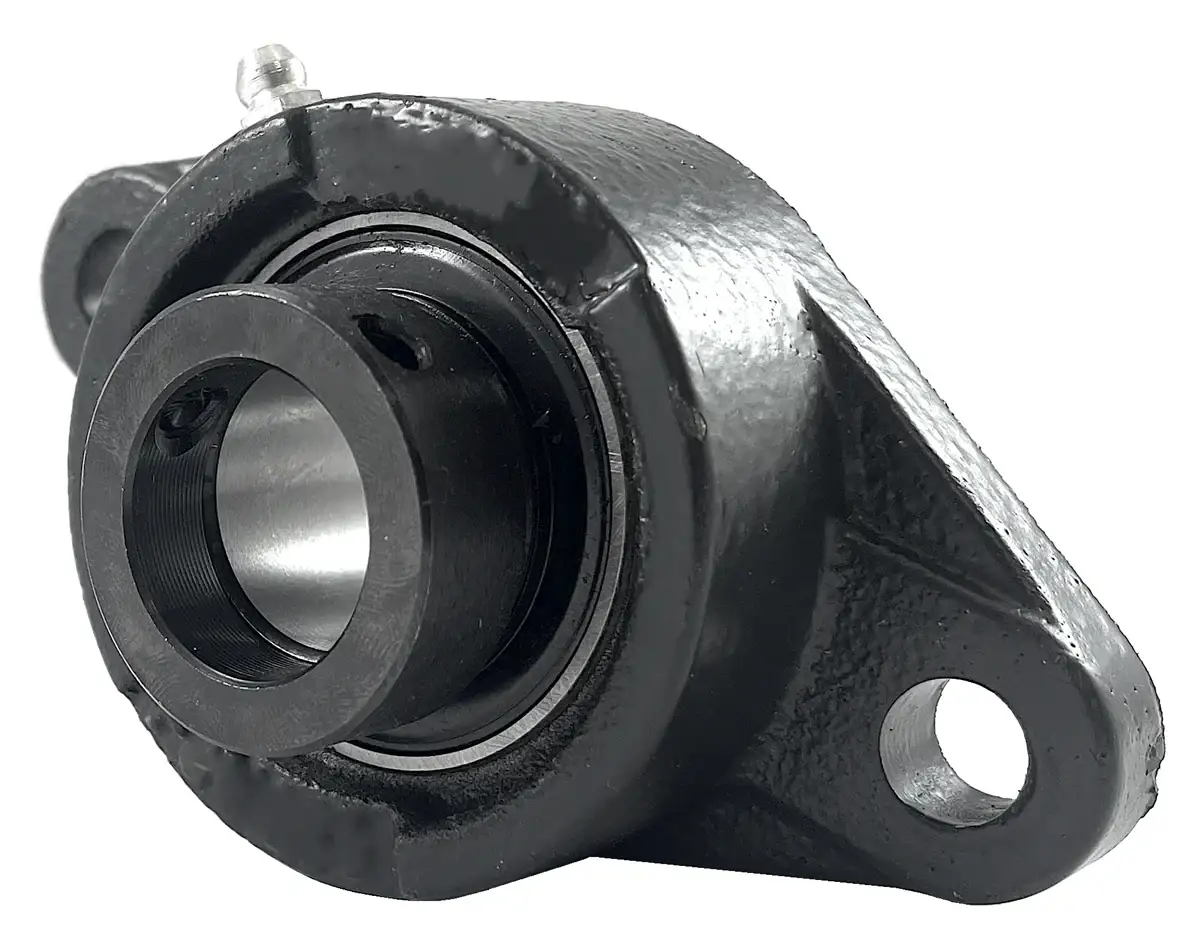

HCFJT204-12 Bearing | 3/4" 2-Bolt Eccentric Locking Bearing

HCFJT204-12 bearing is a 3/4" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 3/4" shaft. HCFJT204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT204-12 bearings, and we will be happy to assist you!

HCFJT204-12 Bearing Dimensions

• Part #: HCFJT 204-12
• Shaft Diameter (d): 3/4"
• Dimension (A): 4.4"
• Dimension (E): 3.531"
• Dimension (I): 0.75"
• Dimension (G): 0.44"
• Dimension (L): 1.25"
• Dimension (S): 0.41"
• Dimension (B): 2.38"
• Dimension (Z): 1.79"
• Dimension (Bi): 1.7205"
• Dimension (N): 0.6732"
• Dimension (M): 0.6732"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: HC 204-12
• Housing Number: FJT 204
• Weight (LBS): 1.3
