Power Transmission > Bearings > Mounted Bearings > Insert Bearings

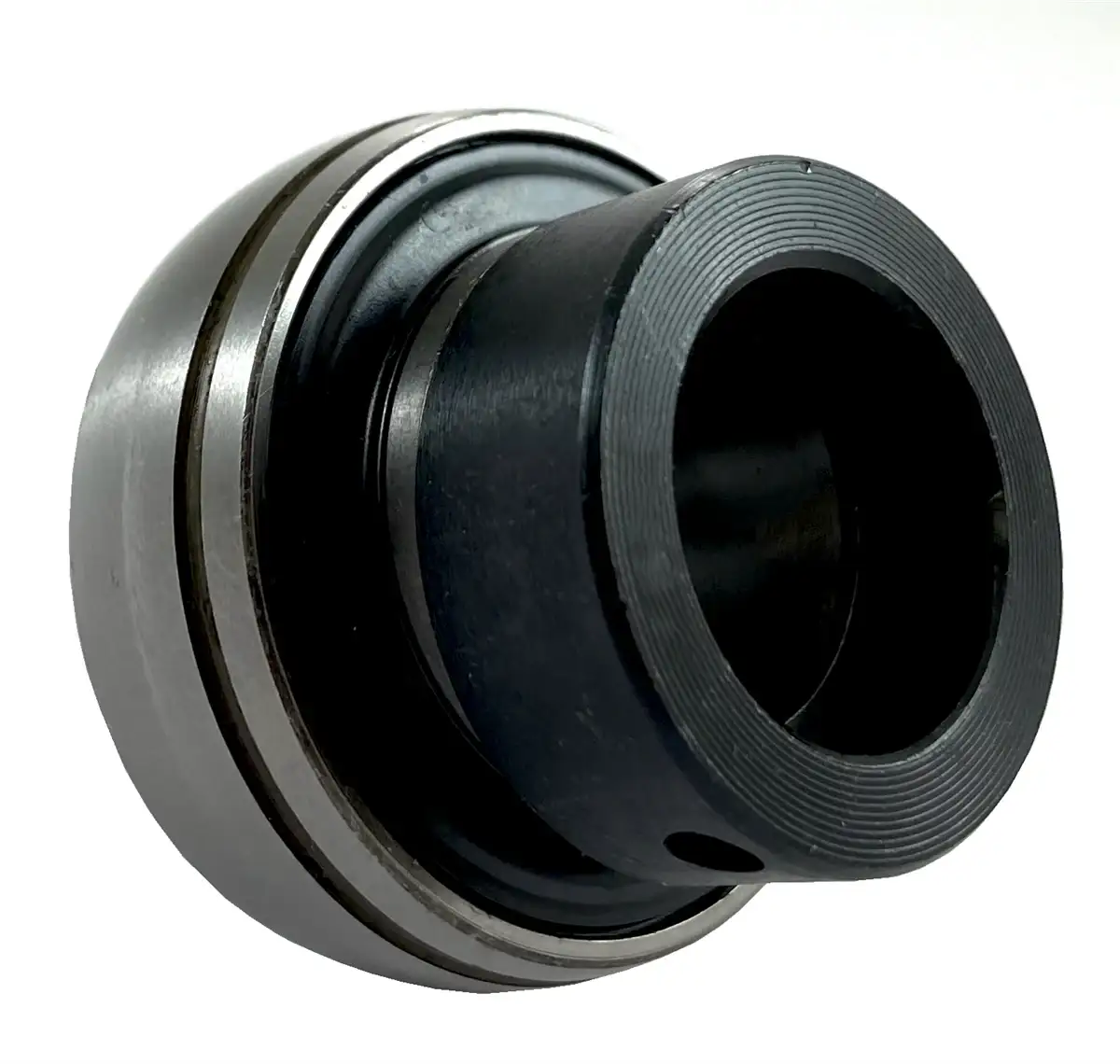

HC211-32 Bearing | 2" Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$71.99
SKU: 2278-HC-211-32-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC211-32 Bearing | 2" Eccentric Locking Bearing Features
HC211-32 Bearing | 2" Eccentric Locking Bearing Specifications
HC211-32 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 2" shaft. Our HC211-32 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC211-32 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC211-32 bearings, contact our customer service and, we will be happy to assist you!
HC211-32 Bearing Dimensions
- Part #: HC 211-32
- Shaft Diameter (d): 2"
- Setscrew Used: 3/8-24
- Dimension (D): 3.9370"
- Dimension (Bi): 2.8110"
- Dimension (Be): 0.9843"
- Dimension (N): 1.0943"
- Dimension (M): 1.0906"
- Dimension (T): 0.2756"
- Dimension (W): 3.000"
- Dimension (K): 0.815"
- Dimension (G): 0.3153"
- Dynamic Load Rating (LBS): 9,743
- Static Load Rating (LBS): 6,608
- Weight (LBS): 3.0
- Part #: HC 211-32
- Shaft Diameter (d): 2"
- Setscrew Used: 3/8-24
- Dimension (D): 3.9370"
- Dimension (Bi): 2.8110"
- Dimension (Be): 0.9843"
- Dimension (N): 1.0943"
- Dimension (M): 1.0906"
- Dimension (T): 0.2756"
- Dimension (W): 3.000"
- Dimension (K): 0.815"
- Dimension (G): 0.3153"
- Dynamic Load Rating (LBS): 9,743
- Static Load Rating (LBS): 6,608
- Weight (LBS): 3.0
