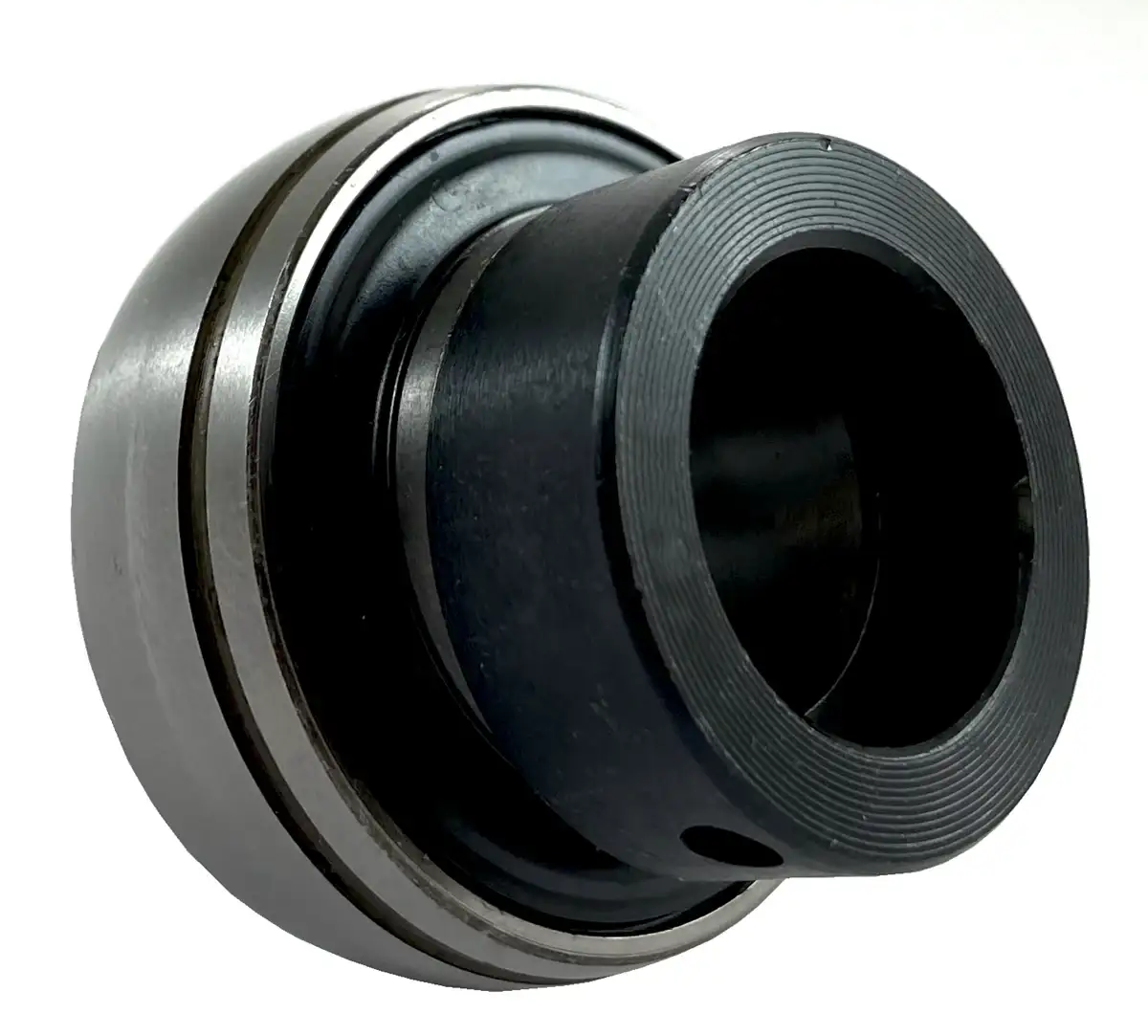

HC206 Bearing | 30mm Eccentric Locking Bearing
Note:
Custom Cut to Length Chain Also Available
$37.99
SKU: 2278-HC-206-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
HC206 Bearing | 30mm Eccentric Locking Bearing Features
HC206 Bearing | 30mm Eccentric Locking Bearing Specifications
HC206 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar for securing a 30mm shaft. Our HC206 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our HC206 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our HC206 bearings, contact our customer service and, we will be happy to assist you!
HC206 Bearing Dimensions
- Part #: HC 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M6 x 1
- Dimension (D): 62.0mm
- Dimension (Bi): 48.4mm
- Dimension (Be): 19.0mm
- Dimension (N): 18.3mm
- Dimension (M): 18.2mm
- Dimension (T): 5.0mm
- Dimension (W): 44.5mm
- Dimension (K): 15.9mm
- Dimension (G): 6.0mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kg): 0.4
- Part #: HC 206
- Shaft Diameter (d): 30mm
- Setscrew Used: M6 x 1
- Dimension (D): 62.0mm
- Dimension (Bi): 48.4mm
- Dimension (Be): 19.0mm
- Dimension (N): 18.3mm
- Dimension (M): 18.2mm
- Dimension (T): 5.0mm
- Dimension (W): 44.5mm
- Dimension (K): 15.9mm
- Dimension (G): 6.0mm
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Weight (kg): 0.4
