CSB202 Bearing | 15mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-CSB-202-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSB202 Bearing | 15mm Insert Bearing Features
CSB202 Bearing | 15mm Insert Bearing Specifications

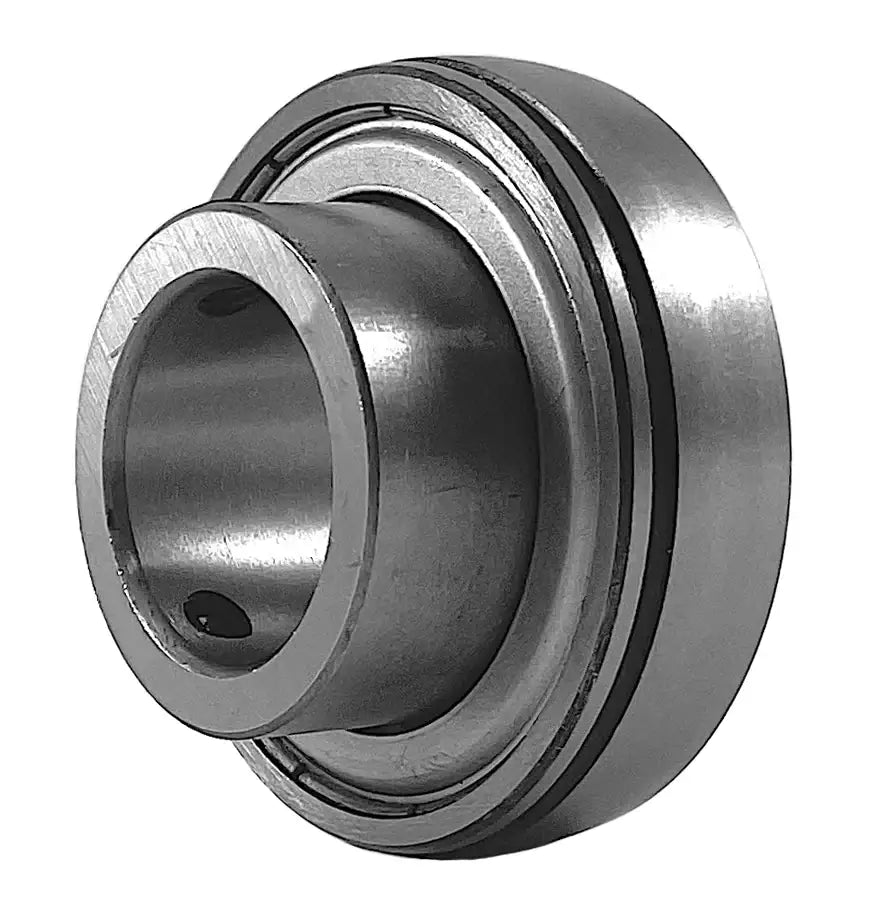

CSB202 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes set-screws to secure to a 15mm shaft. Our CSB202 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSB202 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSB202 bearings, contact our customer service and, we will be happy to assist you!
CSB202 Bearing Dimensions
- Part #: CSB202
- Shaft Diameter (d): 15mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 40.0mm
- Dimension (Bi): 22.0mm
- Dimension (Be): 12.0mm
- Dimension (N): 6.0mm
- Dimension (M): 16.0mm
- Dimension (G): 4.9mm
- Dimension (T): 3.5mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
- Part #: CSB202
- Shaft Diameter (d): 15mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 40.0mm
- Dimension (Bi): 22.0mm
- Dimension (Be): 12.0mm
- Dimension (N): 6.0mm
- Dimension (M): 16.0mm
- Dimension (G): 4.9mm
- Dimension (T): 3.5mm
- Dynamic Load Rating (kN): 9.55
- Static Load Rating (kN): 4.78
- Weight (kg): 0.1
