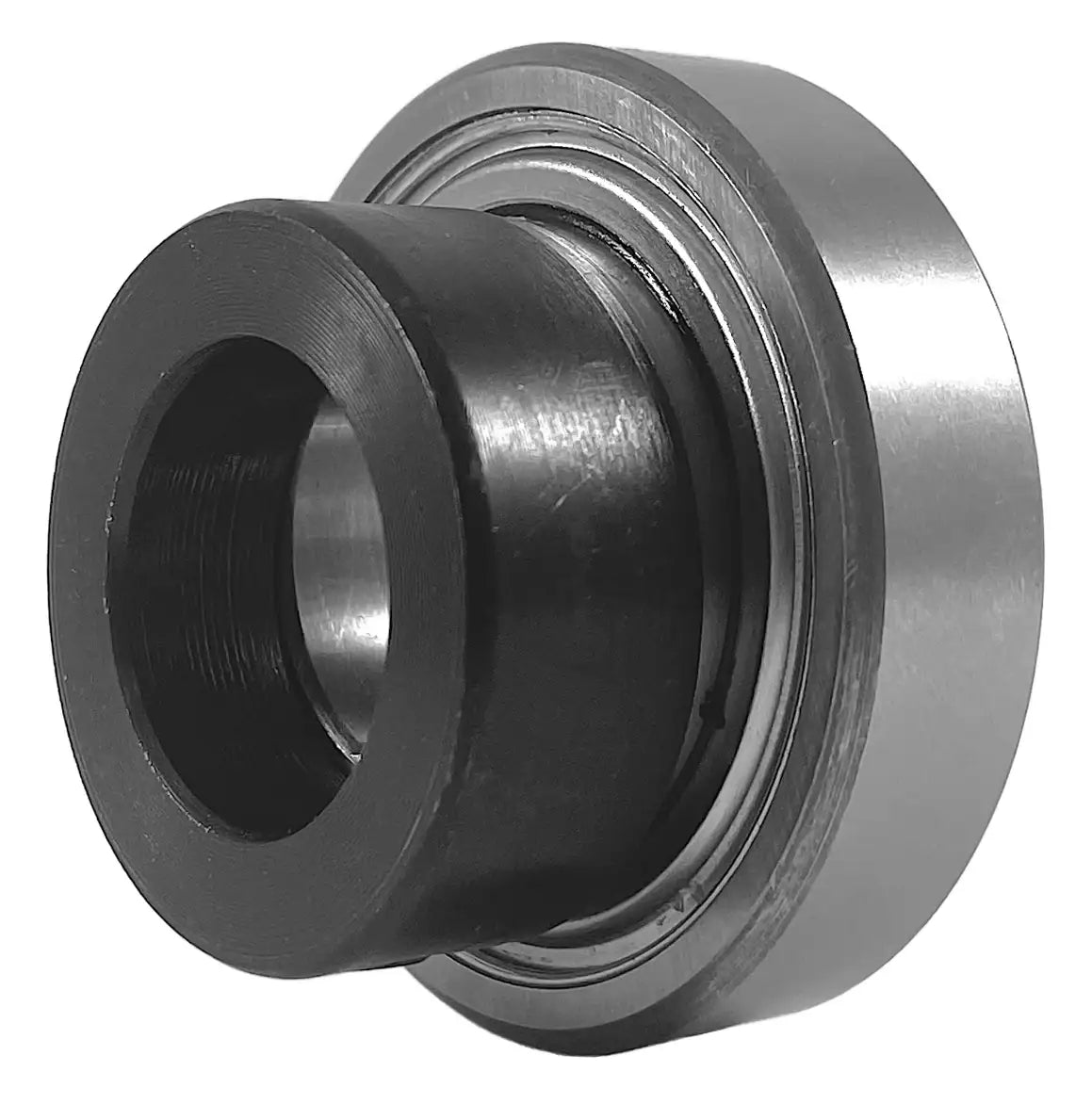

CSA211-32 Insert Bearing | 2" Insert Bearing
SKU: 2278-CSA-211-32-BEARING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
CSA211-32 Insert Bearing | 2" Insert Bearing Description/Features
CSA211-32 Insert Bearing | 2" Insert Bearing Specifications
CSA211-32 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 2" shaft. Our CSA211-32 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA211-32 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA211-32 bearings, contact our customer service and, we will be happy to assist you!
CSA211-32 Bearing Dimensions
- Part #: CSA 211-32
- Shaft Diameter (d): 2"
- Setscrew Used: 3/8-24"
- Dimension (D): 3.9370"
- Dimension (Bi): 1.9055"
- Dimension (Be): 0.8268"
- Dimension (N): 0.4134"
- Dimension (M): 0.8661"
- Dimension (W): 3.000"
- Dimension (K): 0.815"
- Dimension (G): 0.3150"
- Dimension (T): 0.2835"
- Dynamic Load Rating (LBS): 9,743
- Static Load Rating (LBS): 6,608
- Weight (LBS): 3.0
- Part #: CSA 211-32
- Shaft Diameter (d): 2"
- Setscrew Used: 3/8-24"
- Dimension (D): 3.9370"
- Dimension (Bi): 1.9055"
- Dimension (Be): 0.8268"
- Dimension (N): 0.4134"
- Dimension (M): 0.8661"
- Dimension (W): 3.000"
- Dimension (K): 0.815"
- Dimension (G): 0.3150"
- Dimension (T): 0.2835"
- Dynamic Load Rating (LBS): 9,743
- Static Load Rating (LBS): 6,608
- Weight (LBS): 3.0
