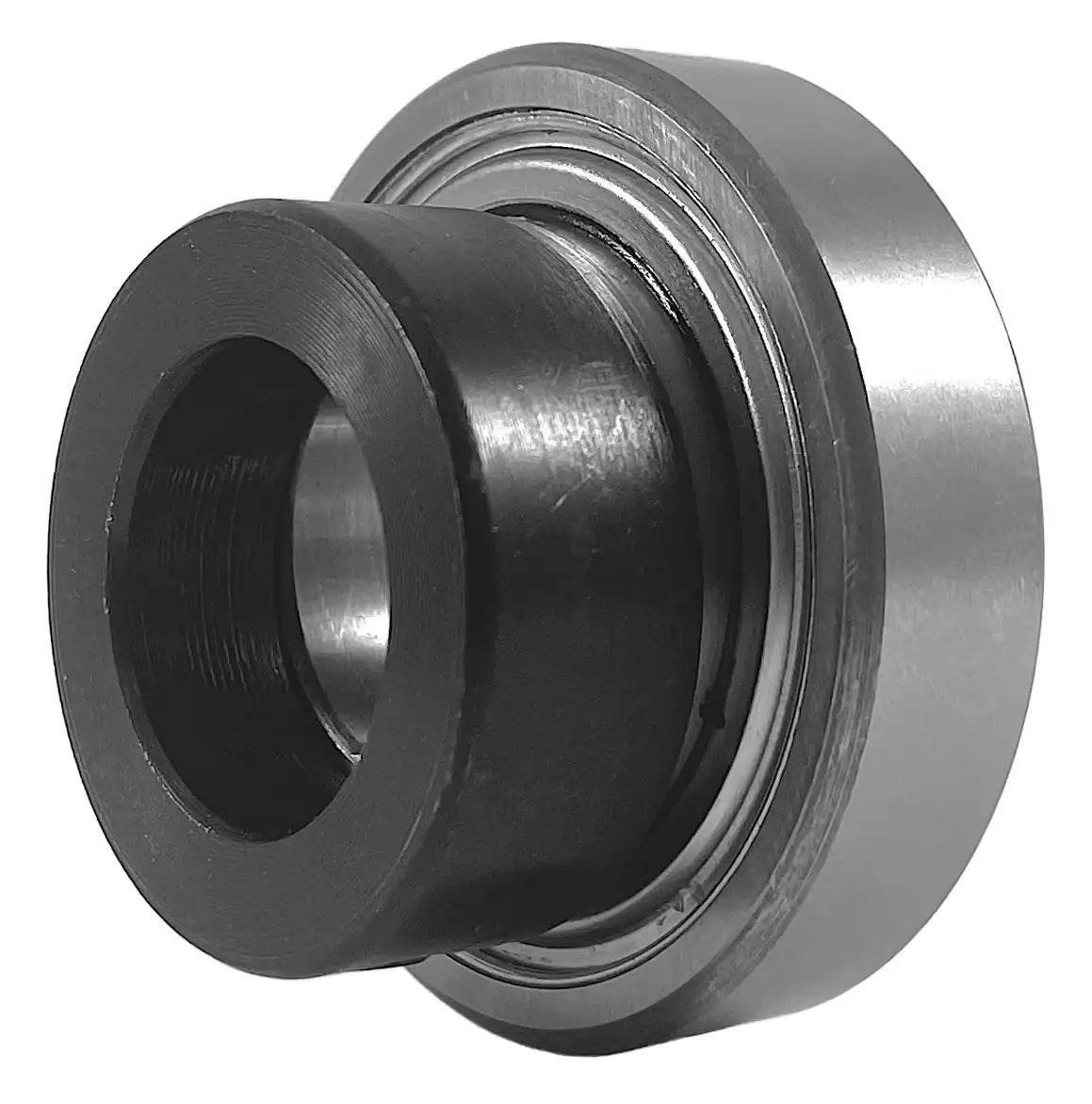

CSA210-32 Insert Bearing | 2" Insert Bearing
Note:
Custom Cut to Length Chain Also Available
$50.99
SKU: 2278-CSA-210-32-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CSA210-32 Insert Bearing | 2" Insert Bearing Features
CSA210-32 Insert Bearing | 2" Insert Bearing Specifications
CSA210-32 bearing is a light-duty ball bearing insert made to C3 precision standards and utilizes an eccentric locking collar to secure to a 2" shaft. Our CSA210-32 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our CSA210-32 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our CSA210-32 bearings, contact our customer service and, we will be happy to assist you!
CSA210-32 Bearing Dimensions
- Part #: CSA 210-32
- Shaft Diameter (d): 2"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.5433"
- Dimension (Bi): 1.7205"
- Dimension (Be): 0.7874"
- Dimension (N): 0.3937"
- Dimension (M): 0.7953"
- Dimension (W): 2.752"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dimension (T): 0.2598"
- Dynamic Load Rating (LBS): 7,867
- Static Load Rating (LBS): 5,330
- Weight (LBS): 2.2
- Part #: CSA 210-32
- Shaft Diameter (d): 2"
- Setscrew Used: 5/16-24"
- Dimension (D): 3.5433"
- Dimension (Bi): 1.7205"
- Dimension (Be): 0.7874"
- Dimension (N): 0.3937"
- Dimension (M): 0.7953"
- Dimension (W): 2.752"
- Dimension (K): 0.721"
- Dimension (G): 0.2559"
- Dimension (T): 0.2598"
- Dynamic Load Rating (LBS): 7,867
- Static Load Rating (LBS): 5,330
- Weight (LBS): 2.2
