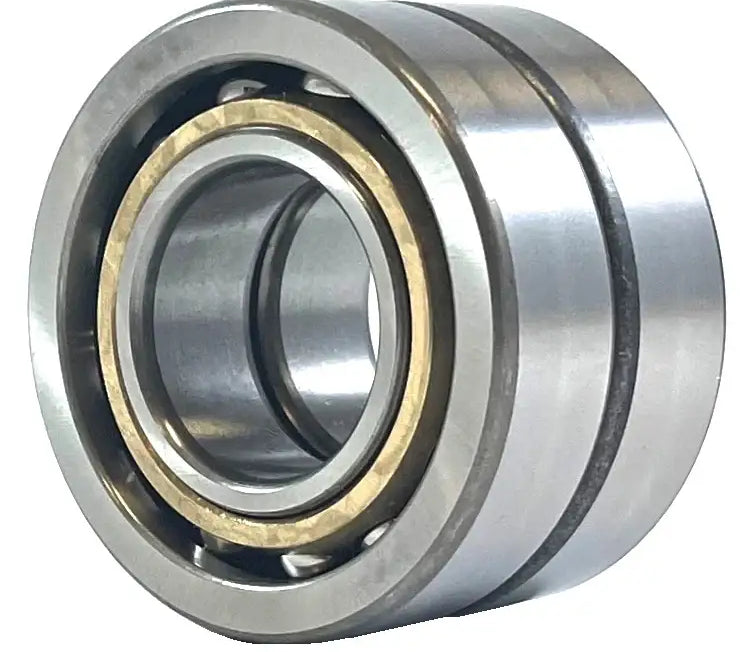

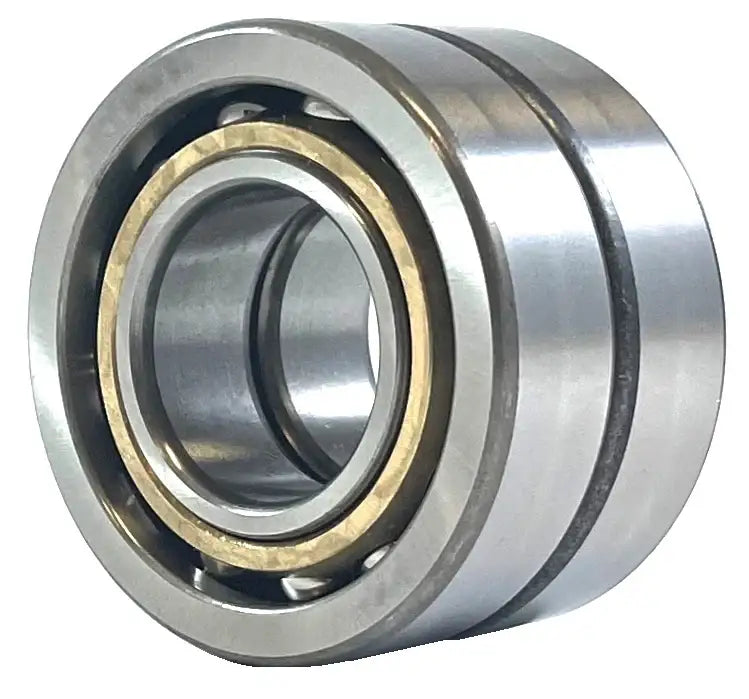

7308B Bearing | 7308-BUA Duplex Bearing - 40x90x46

This 7308-BUA Duplex bearing is a high-precision 45-degree 40x90x46 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7308-BUA Duplex bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7308-BUA Duplex bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7308-BUA Duplex Bearing Dimensions

• Bearing Size:7308-BUA
• Dimension (d): 40mm
• Dimension (D): 90mm
• Dimension (B): 46mm
• Dynamic Load Rating: 14510 LBS
• Static Load Rating: 11360 LBS
• Limiting Speed (Grease): 5500 RPM
• Limiting Speed (OIL): 7400 RPM
