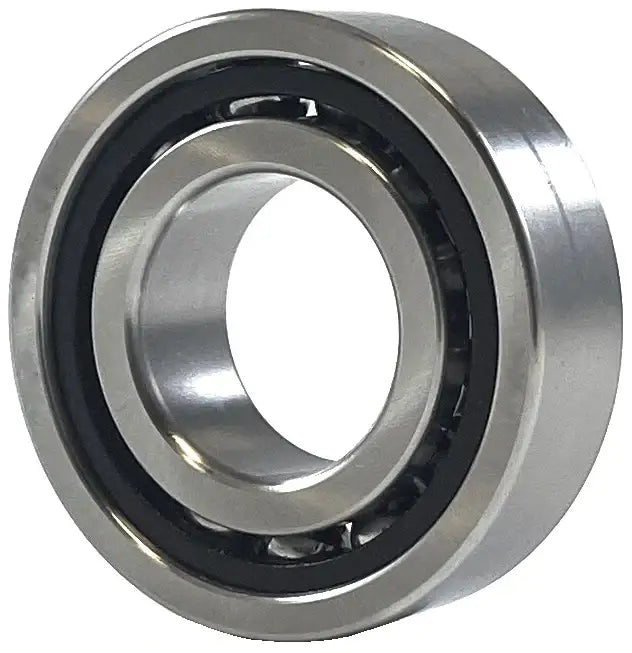

7022 CT.P4.UL Spindle Bearing - 110x170x28 Spindle Bearing

7022 CT.P4.UL spindle bearing is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 110x170x28 7022 CT.P4.UL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include duplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7022 CT.P4.UL spindle bearing executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7022 CT.P4.UL Spindle Bearing Dimensions

• Bearing Size: 7022 CT.P4.UL
• Dimension (d): 110mm
• Dimension (D): 170mm
• Dimension (B): 28mm
• Dynamic Load Rating: 21491 LBS
• Static Load Rating: 22098 LBS
• Limiting Speed (Grease): 7500 RPM
• Limiting Speed (OIL): 12000 RPM
• Weight: 4.585 LBS
