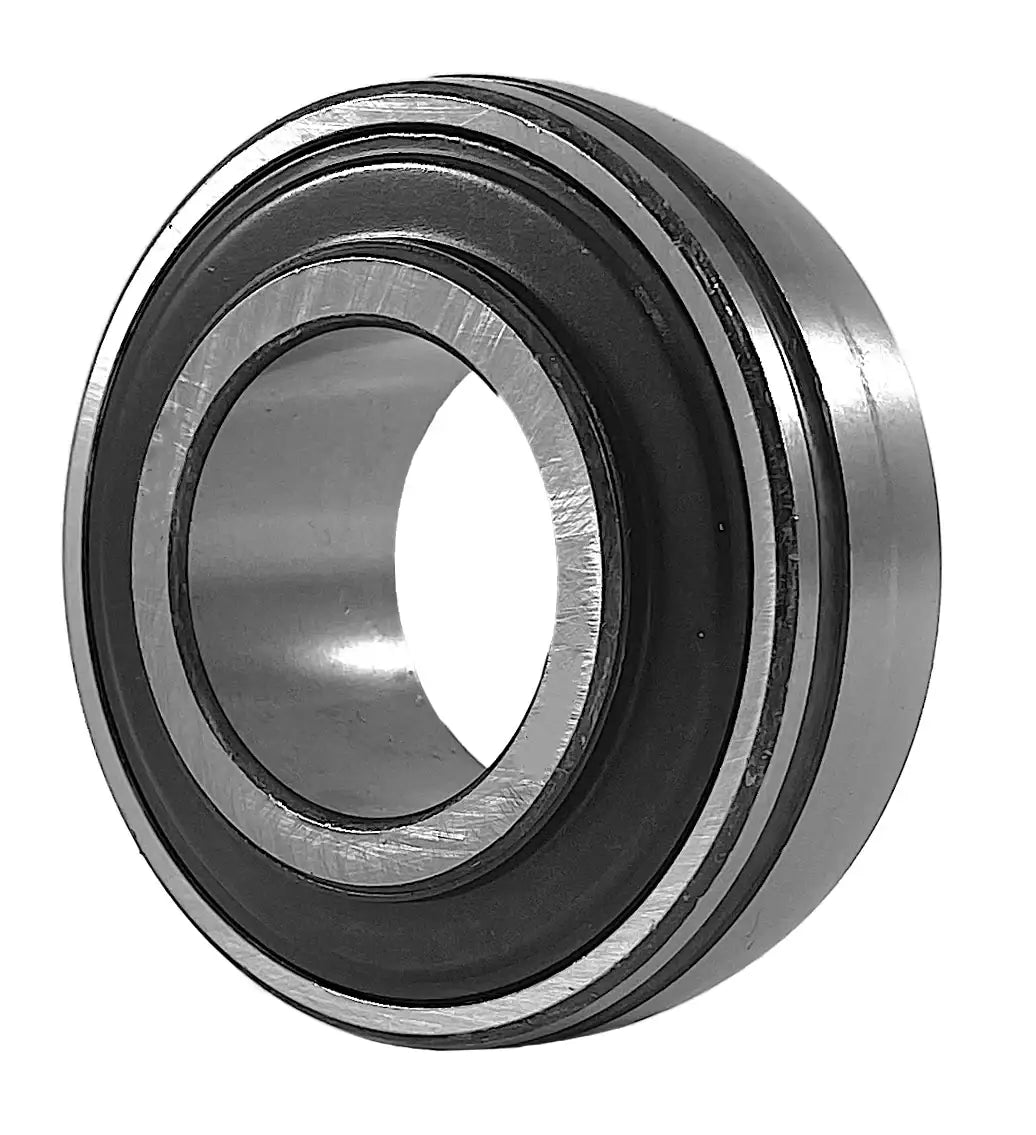

UK216-70 Insert Bearing | 70mm Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-216-70-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK216-70 Insert Bearing | 70mm Tapered Adapter Insert Bearing Features
UK216-70 Insert Bearing | 70mm Tapered Adapter Insert Bearing Specifications
UK216-70 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 70mm bore. Our UK216-70 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK216-70 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK216-70 bearings, contact our customer service and, we will be happy to assist you!
UK216-70 Bearing Dimensions
- Part #: UK 216
- Shaft Diameter (d): 70mm
- Dimension (d): 80.0mm
- Dimension (D): 140.0mm
- Dimension (Bi): 45.0mm
- Dimension (Be): 33.0mm
- Dimension (T): 9.5mm
- Dynamic Load Rating (kN): 72.62
- Static Load Rating (kN): 53.35
- Fits Housing Size: 217 / X16
- Weight (kg): 2.8
- Part #: UK 216
- Shaft Diameter (d): 70mm
- Dimension (d): 80.0mm
- Dimension (D): 140.0mm
- Dimension (Bi): 45.0mm
- Dimension (Be): 33.0mm
- Dimension (T): 9.5mm
- Dynamic Load Rating (kN): 72.62
- Static Load Rating (kN): 53.35
- Fits Housing Size: 217 / X16
- Weight (kg): 2.8
