Power Transmission > Bearings > Mounted Bearings > Insert Bearings

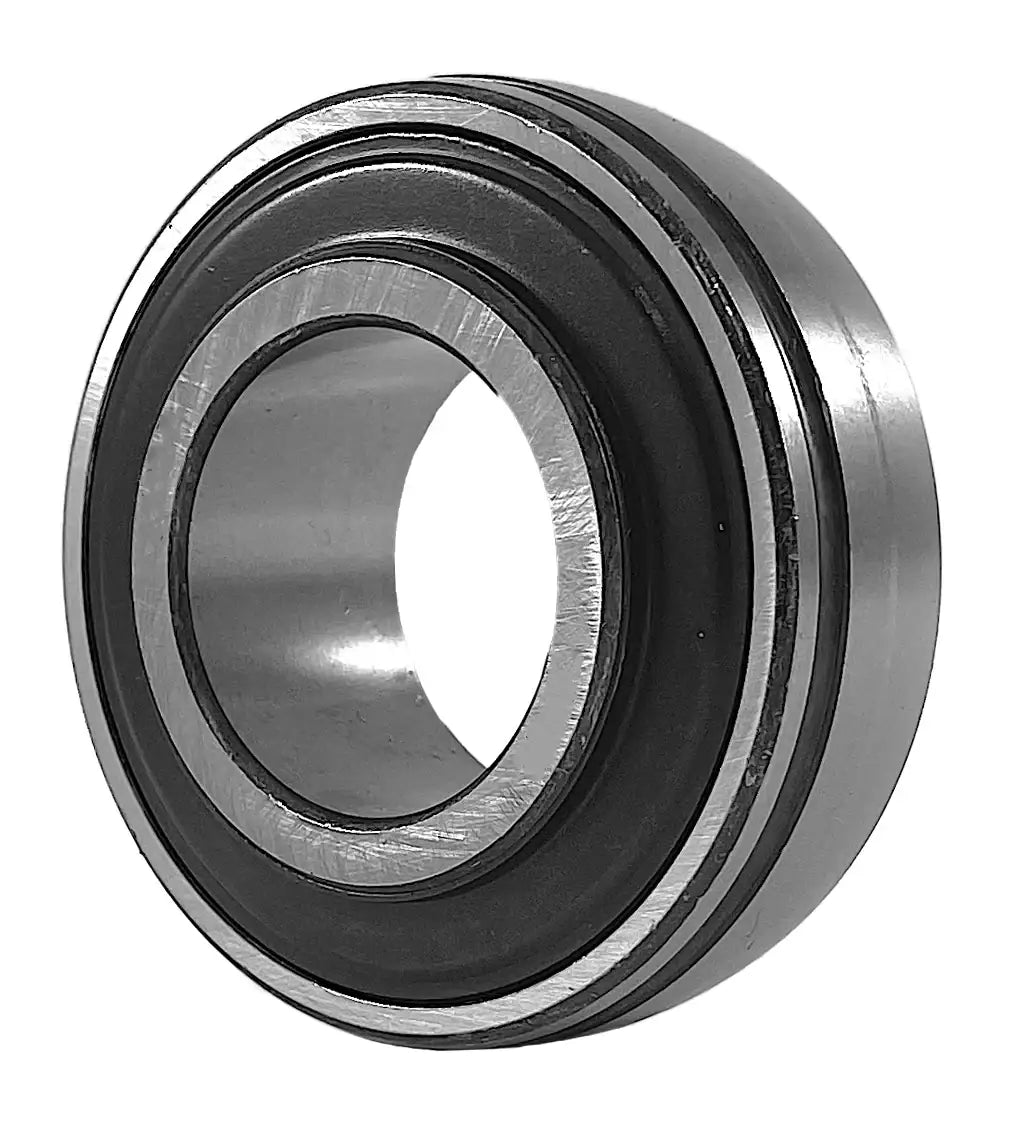

UK215-2716 Insert Bearing | 2-7/16" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-215-2716-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK215-2716 Insert Bearing | 2-7/16" Tapered Adapter Insert Bearing Features
UK215-2716 Insert Bearing | 2-7/16" Tapered Adapter Insert Bearing Specifications
UK215-2716 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 2-7/16" bore. Our UK215-2716 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK215-2716 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK215-2716 bearings, contact our customer service and, we will be happy to assist you!
UK215-2716 Bearing Dimensions
- Part #: UK 215
- Shaft Diameter (d): 2-7/16"
- Dimension (d): 2.9528"
- Dimension (D): 5.1181"
- Dimension (Bi): 1.6929"
- Dimension (Be): 1.1811"
- Dimension (T): 0.3622"
- Dynamic Load Rating (LBS): 14,974
- Static Load Rating (LBS): 10,757
- Fits Housing Size: 216 / X15
- Weight (LBS): 4.9
- Part #: UK 215
- Shaft Diameter (d): 2-7/16"
- Dimension (d): 2.9528"
- Dimension (D): 5.1181"
- Dimension (Bi): 1.6929"
- Dimension (Be): 1.1811"
- Dimension (T): 0.3622"
- Dynamic Load Rating (LBS): 14,974
- Static Load Rating (LBS): 10,757
- Fits Housing Size: 216 / X15
- Weight (LBS): 4.9
