UK212-55 Insert Bearing | 55mm Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-212-55-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK212-55 Insert Bearing | 55mm Tapered Adapter Insert Bearing Features
UK212-55 Insert Bearing | 55mm Tapered Adapter Insert Bearing Specifications

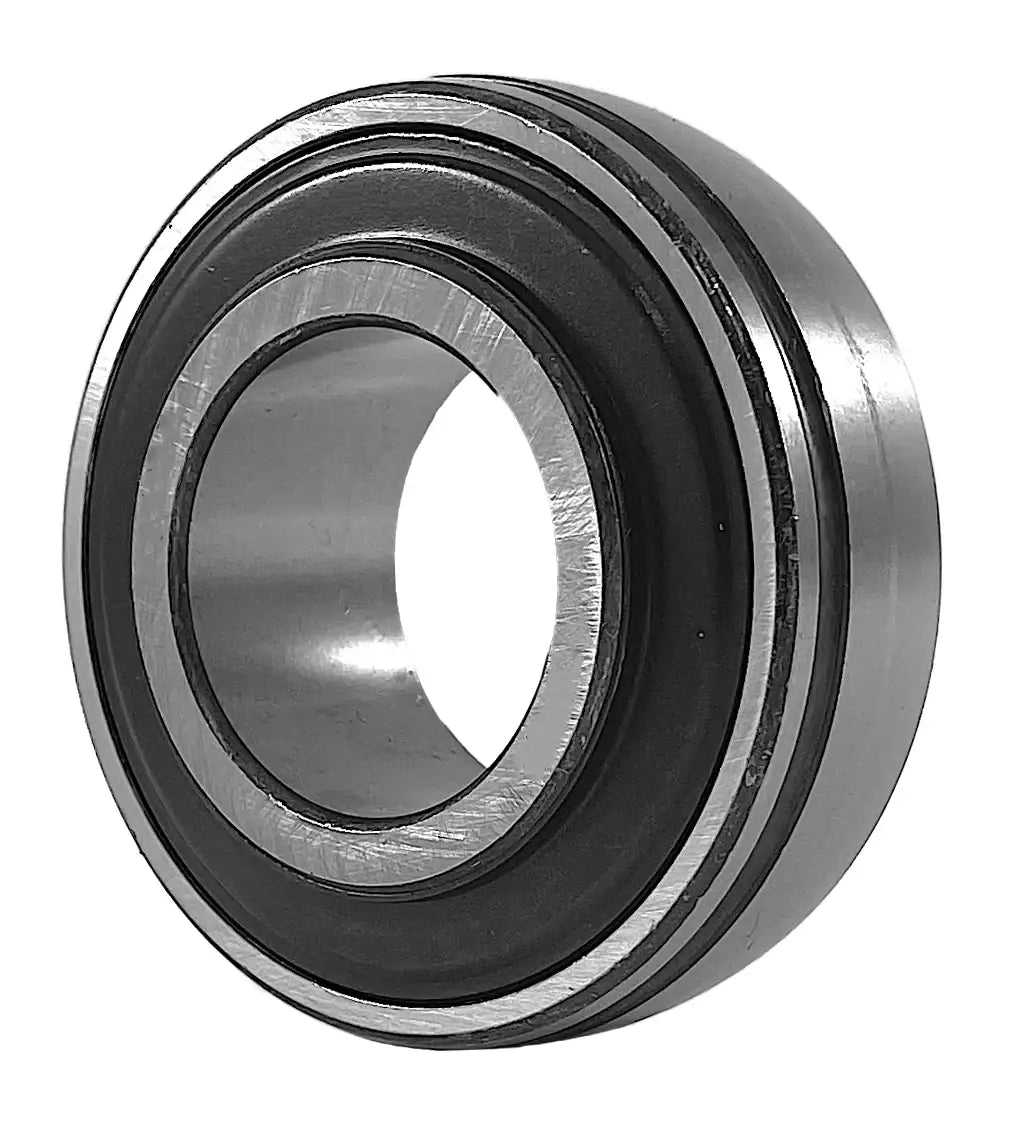

UK212-55 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 55mm bore. Our UK212-55 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK212-55 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK212-55 bearings, contact our customer service and, we will be happy to assist you!
UK212-55 Bearing Dimensions
- Part #: UK 212
- Shaft Diameter (d): 55mm
- Dimension (d): 60.0mm
- Dimension (D): 110.0mm
- Dimension (Bi): 38.0mm
- Dimension (Be): 27.0mm
- Dimension (T): 7.6mm
- Dynamic Load Rating (kN): 47.69
- Static Load Rating (kN): 33.43
- Fits Housing Size: 213 / X12
- Weight (kg): 1.5
- Part #: UK 212
- Shaft Diameter (d): 55mm
- Dimension (d): 60.0mm
- Dimension (D): 110.0mm
- Dimension (Bi): 38.0mm
- Dimension (Be): 27.0mm
- Dimension (T): 7.6mm
- Dynamic Load Rating (kN): 47.69
- Static Load Rating (kN): 33.43
- Fits Housing Size: 213 / X12
- Weight (kg): 1.5
