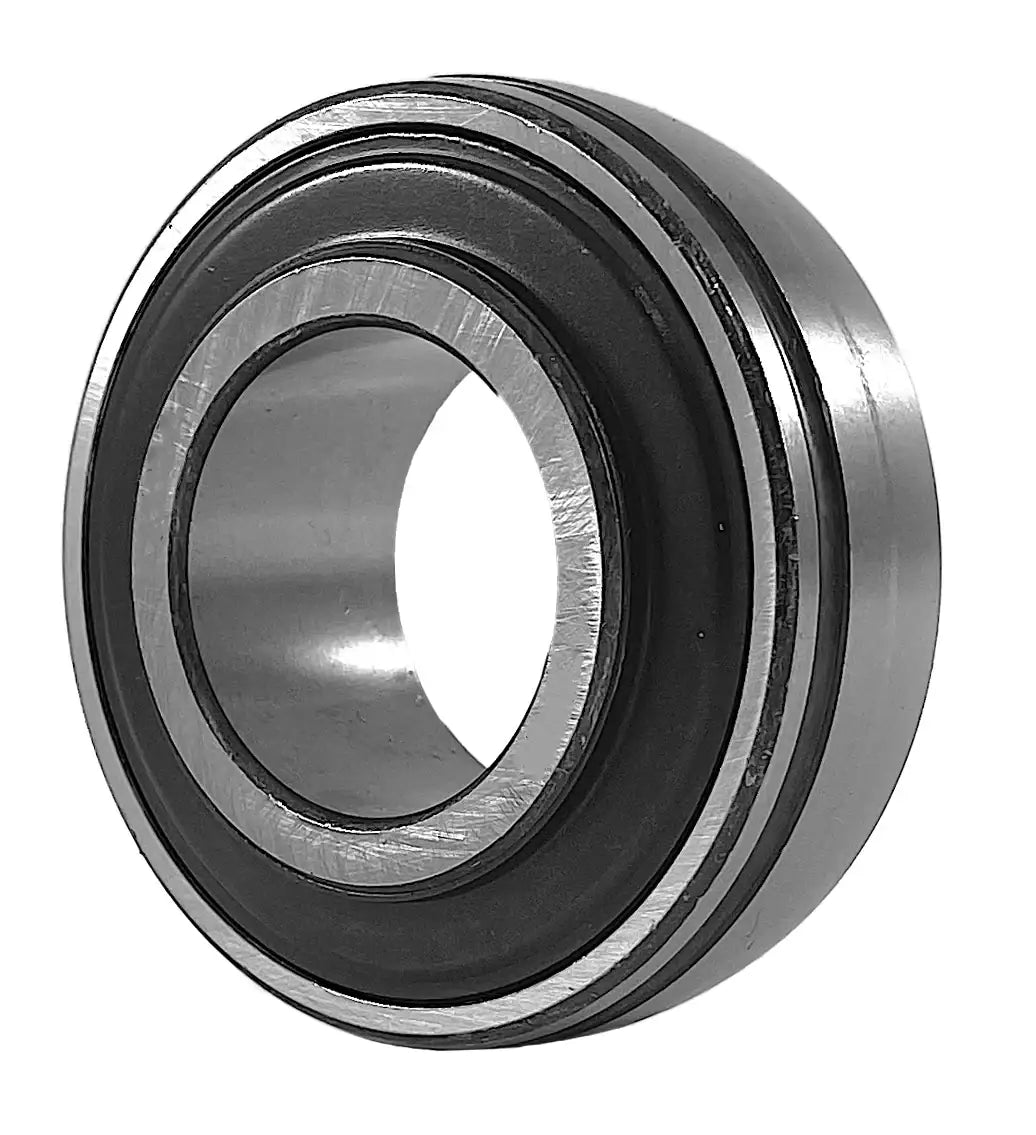

UK212-218 Insert Bearing | 2-1/8" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-212-218-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK212-218 Insert Bearing | 2-1/8" Tapered Adapter Insert Bearing Features
UK212-218 Insert Bearing | 2-1/8" Tapered Adapter Insert Bearing Specifications
UK212-218 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 2-1/8" bore. Our UK212-218 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK212-218 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK212-218 bearings, contact our customer service and, we will be happy to assist you!
UK212-218 Bearing Dimensions
- Part #: UK 212
- Shaft Diameter (d): 2-1/8"
- Dimension (d): 2.3622"
- Dimension (D): 4.3307"
- Dimension (Bi): 1.4961"
- Dimension (Be): 1.0630"
- Dimension (T): 0.2992"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Fits Housing Size: 213 / X12
- Weight (LBS): 3.3
- Part #: UK 212
- Shaft Diameter (d): 2-1/8"
- Dimension (d): 2.3622"
- Dimension (D): 4.3307"
- Dimension (Bi): 1.4961"
- Dimension (Be): 1.0630"
- Dimension (T): 0.2992"
- Dynamic Load Rating (LBS): 10,720
- Static Load Rating (LBS): 7,516
- Fits Housing Size: 213 / X12
- Weight (LBS): 3.3
