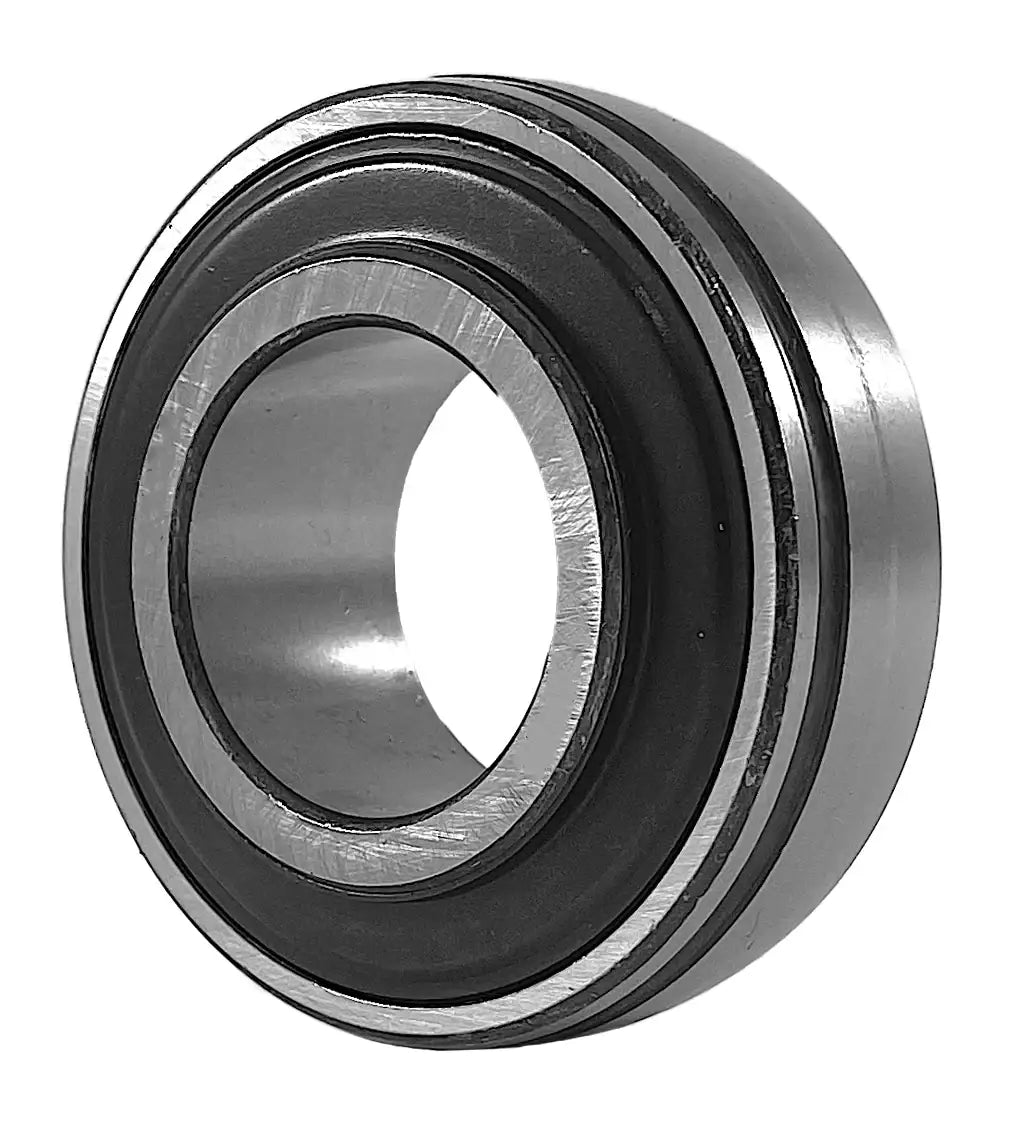

UK208-35 Insert Bearing | 35mm Tapered Adapter Insert Bearing

UK208-35 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 35mm bore. Our UK208-35 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK208-35 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK208-35 bearings, contact our customer service and, we will be happy to assist you!

UK208-35 Bearing Dimensions

• Part #: UK 208
• Shaft Diameter (d): 35mm
• Dimension (d): 40.0mm
• Dimension (D): 80.0mm
• Dimension (Bi): 29.0mm
• Dimension (Be): 21.0mm
• Dimension (T): 6.2mm
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Fits Housing Size: 209 / X08
• Weight (kg): 0.6
