UK206-1 Insert Bearing | 1" Tapered Adapter Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UK-206-1-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UK206-1 Insert Bearing | 1" Tapered Adapter Insert Bearing Features
UK206-1 Insert Bearing | 1" Tapered Adapter Insert Bearing Specifications

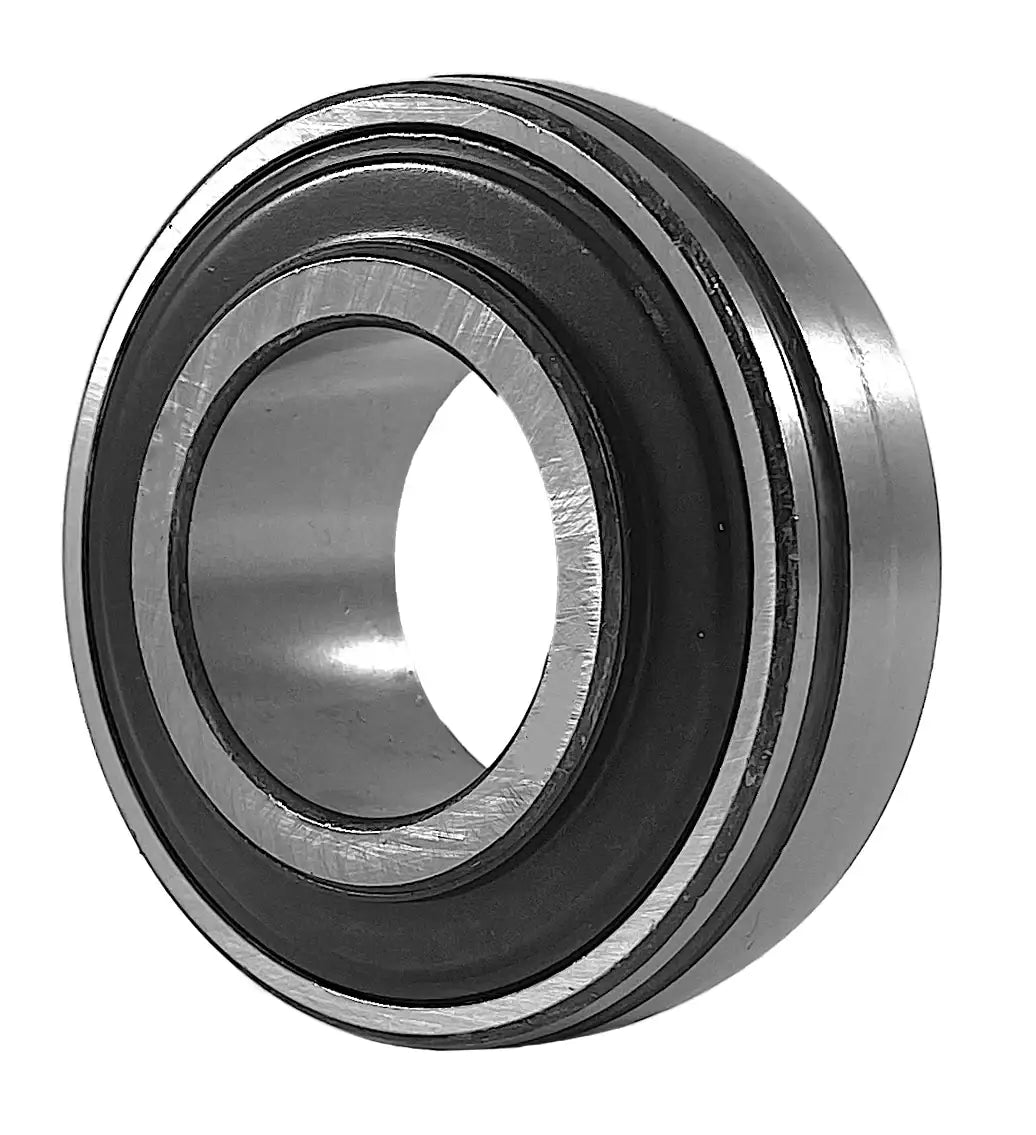

UK206-1 bearing is a normal-duty ball bearing insert with a tapered adapter sleeve made to C3 precision standards with a 1" bore. Our UK206-1 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UK206-1 bearing with tapered adapter sleeve is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UK206-1 bearings, contact our customer service and, we will be happy to assist you!
UK206-1 Bearing Dimensions
- Part #: UK 206
- Shaft Diameter (d): 1"
- Dimension (d): 1.1811"
- Dimension (D): 2.4409"
- Dimension (Bi): 1.0236"
- Dimension (Be): 0.7480"
- Dimension (T): 0.2087"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Fits Housing Size: 207 / X06
- Weight (LBS): 0.7
- Part #: UK 206
- Shaft Diameter (d): 1"
- Dimension (d): 1.1811"
- Dimension (D): 2.4409"
- Dimension (Bi): 1.0236"
- Dimension (Be): 0.7480"
- Dimension (T): 0.2087"
- Dynamic Load Rating (LBS): 4,377
- Static Load Rating (LBS): 2,569
- Fits Housing Size: 207 / X06
- Weight (LBS): 0.7
