UEST212 Bearing | 60mm Take-Up Bearing

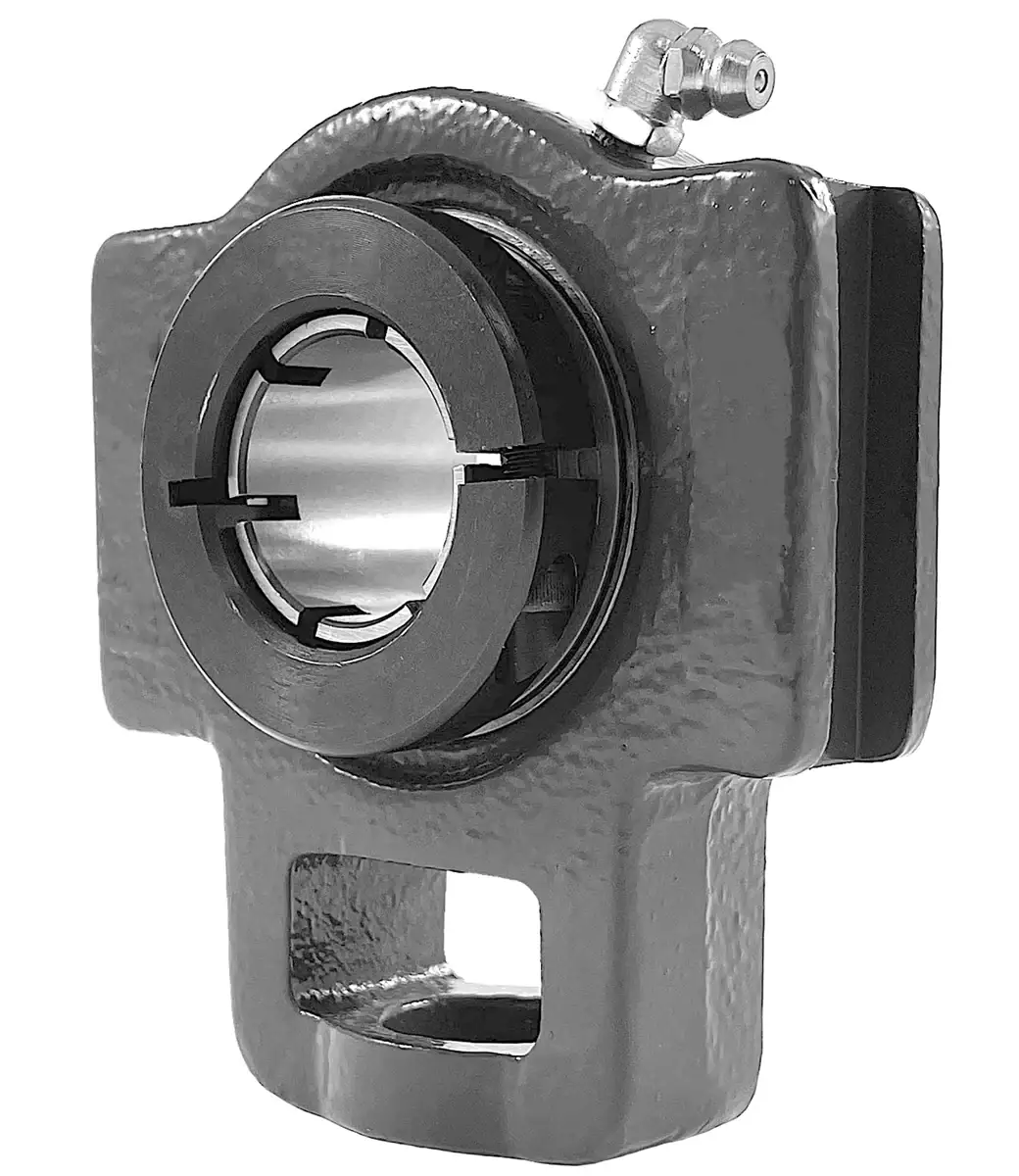

UEST212 bearing is a 60mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 60mm shaft. UEST212 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST212 bearings, and we will be happy to assist you!

UEST212 Take-Up Bearing Dimensions

• Part #: UEST 212
• Shaft Diameter (d): 60mm
• Dimension (O): 32.0mm
• Dimension (G): 19.0mm
• Dimension (P): 102.0mm
• Dimension (Q): 64.0mm
• Dimension (S): 35.0mm
• Dimension (B): 102.0mm
• Dimension (K): 27.0mm
• Dimension (E): 130.0mm
• Dimension (A): 146.0mm
• Dimension (W): 194.0mm
• Dimension (J): 64.0mm
• Dimension (L): 42.0mm
• Dimension (H): 119.0mm
• Dimension (Bi): 66.6mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UE 212
• Housing Number: ST 212
• Weight (kg): 5.1
