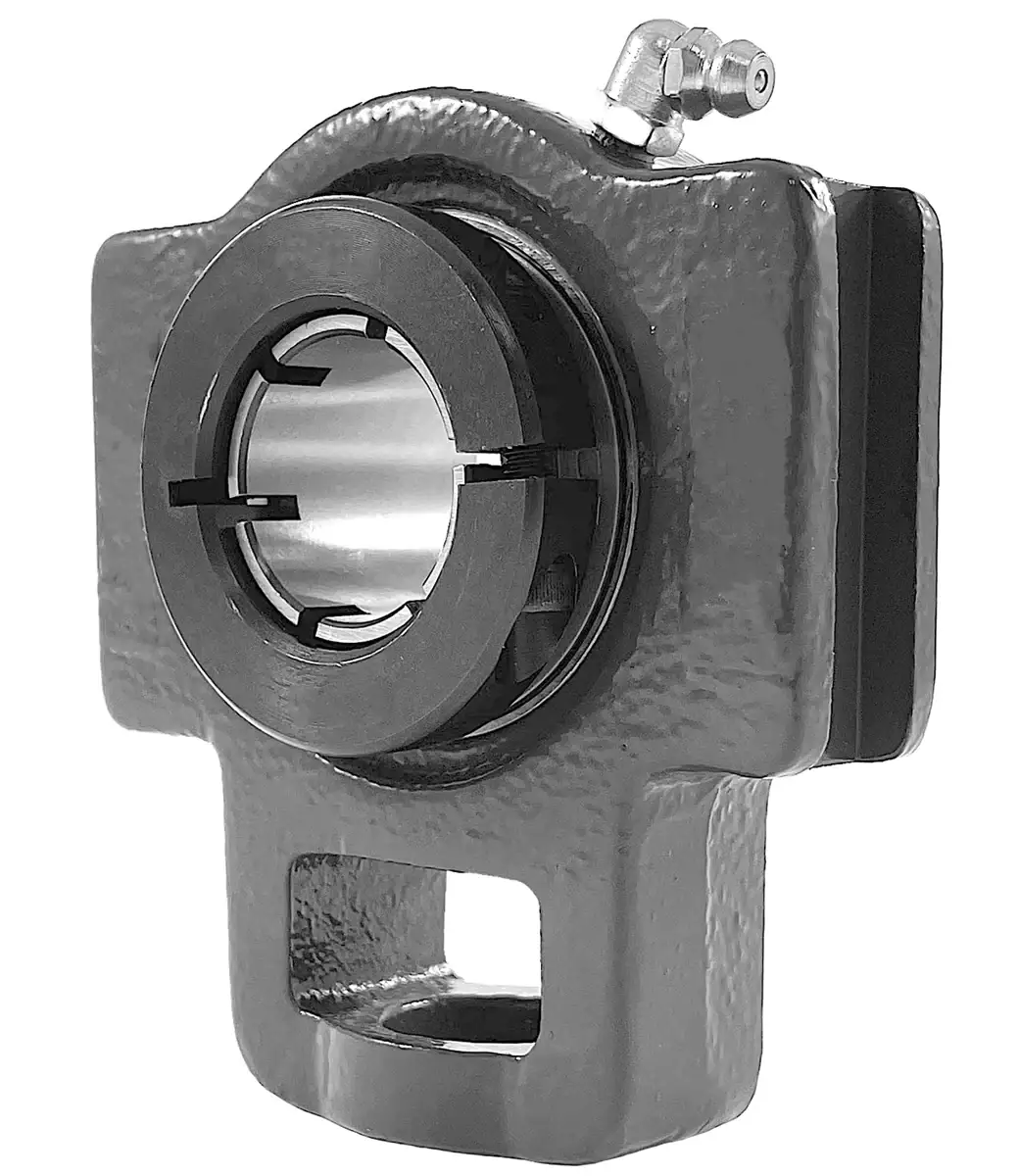

UEST210 Bearing | 50mm Take-Up Bearing

UEST210 bearing is a 50mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 50mm shaft. UEST210 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST210 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST210 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST210 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST210 bearings, and we will be happy to assist you!

UEST210 Take-Up Bearing Dimensions

• Part #: UEST 210
• Shaft Diameter (d): 50mm
• Dimension (O): 19.0mm
• Dimension (G): 16.0mm
• Dimension (P): 83.0mm
• Dimension (Q): 49.0mm
• Dimension (S): 29.0mm
• Dimension (B): 86.0mm
• Dimension (K): 17.5mm
• Dimension (E): 101.6mm
• Dimension (A): 117.0mm
• Dimension (W): 149.0mm
• Dimension (J): 49.0mm
• Dimension (L): 37.0mm
• Dimension (H): 90.0mm
• Dimension (Bi): 52.6mm
• Dimension (N): 19.0mm
• Dimension (M): 32.6mm
• Dynamic Load Rating (kN): 35.00
• Static Load Rating (kN): 23.71
• Bearing Insert: UE 210
• Housing Number: ST 210
• Weight (kg): 2.6
