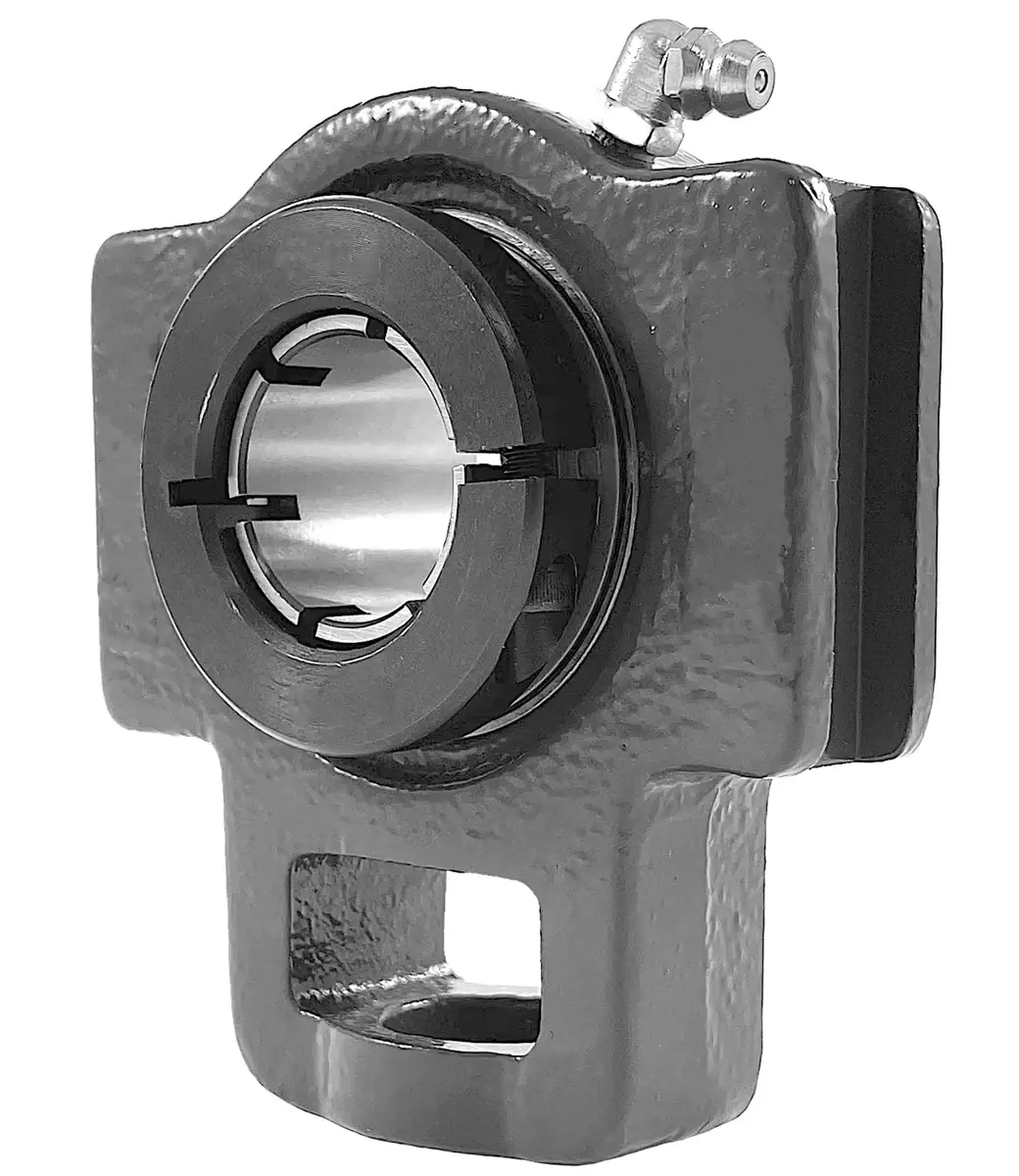

UEST210-30 Bearing | 1-7/8" Take-Up Bearing

UEST210-30 bearing is a 1-7/8" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 1-7/8" shaft. UEST210-30 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST210-30 bearing with a 1-7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST210-30 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST210-30 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST210-30 bearings, and we will be happy to assist you!

UEST210-30 Take-Up Bearing Dimensions

• Part #: UEST 210-30
• Shaft Diameter (d): 1-7/8"
• Dimension (O): 0.75"
• Dimension (G): 0.63"
• Dimension (P): 3.25"
• Dimension (Q): 1.94"
• Dimension (S): 1.13"
• Dimension (B): 3.38"
• Dimension (K): 0.69"
• Dimension (E): 4.00"
• Dimension (A): 4.63"
• Dimension (W): 5.88"
• Dimension (J): 1.94"
• Dimension (L): 1.47"
• Dimension (H): 3.56"
• Dimension (Bi): 2.0709"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UE 210-30
• Housing Number: ST 210
• Weight (LBS): 5.7
