UEST209 Bearing | 45mm Take-Up Bearing

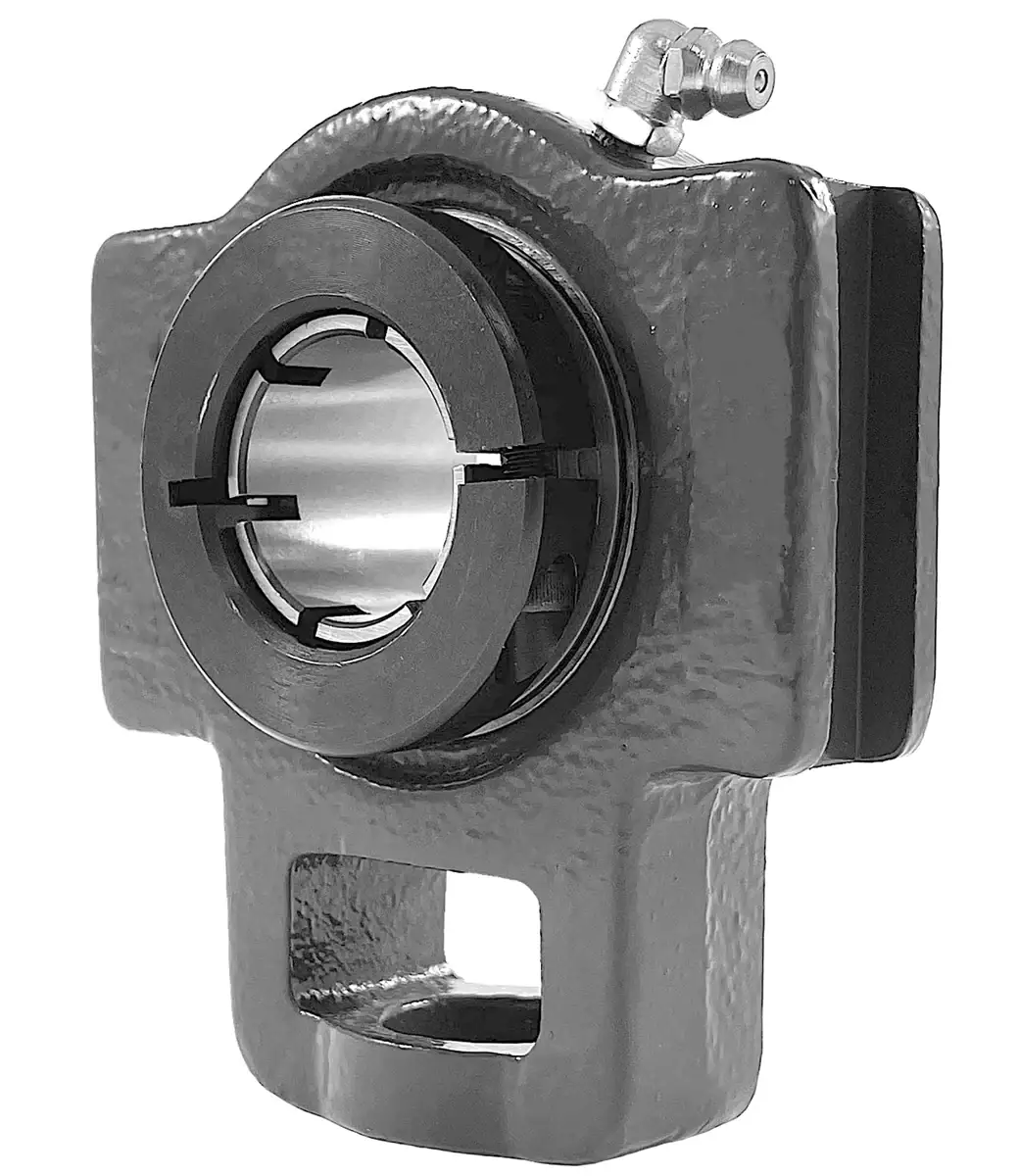

UEST209 bearing is a 45mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 45mm shaft. UEST209 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST209 bearings, and we will be happy to assist you!

UEST209 Take-Up Bearing Dimensions

• Part #: UEST 209
• Shaft Diameter (d): 45mm
• Dimension (O): 19.0mm
• Dimension (G): 16.0mm
• Dimension (P): 83.0mm
• Dimension (Q): 49.0mm
• Dimension (S): 29.0mm
• Dimension (B): 83.0mm
• Dimension (K): 17.5mm
• Dimension (E): 101.6mm
• Dimension (A): 117.0mm
• Dimension (W): 144.0mm
• Dimension (J): 49.0mm
• Dimension (L): 35.0mm
• Dimension (H): 87.0mm
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: UE 209
• Housing Number: ST 209
• Weight (kg): 2.5
