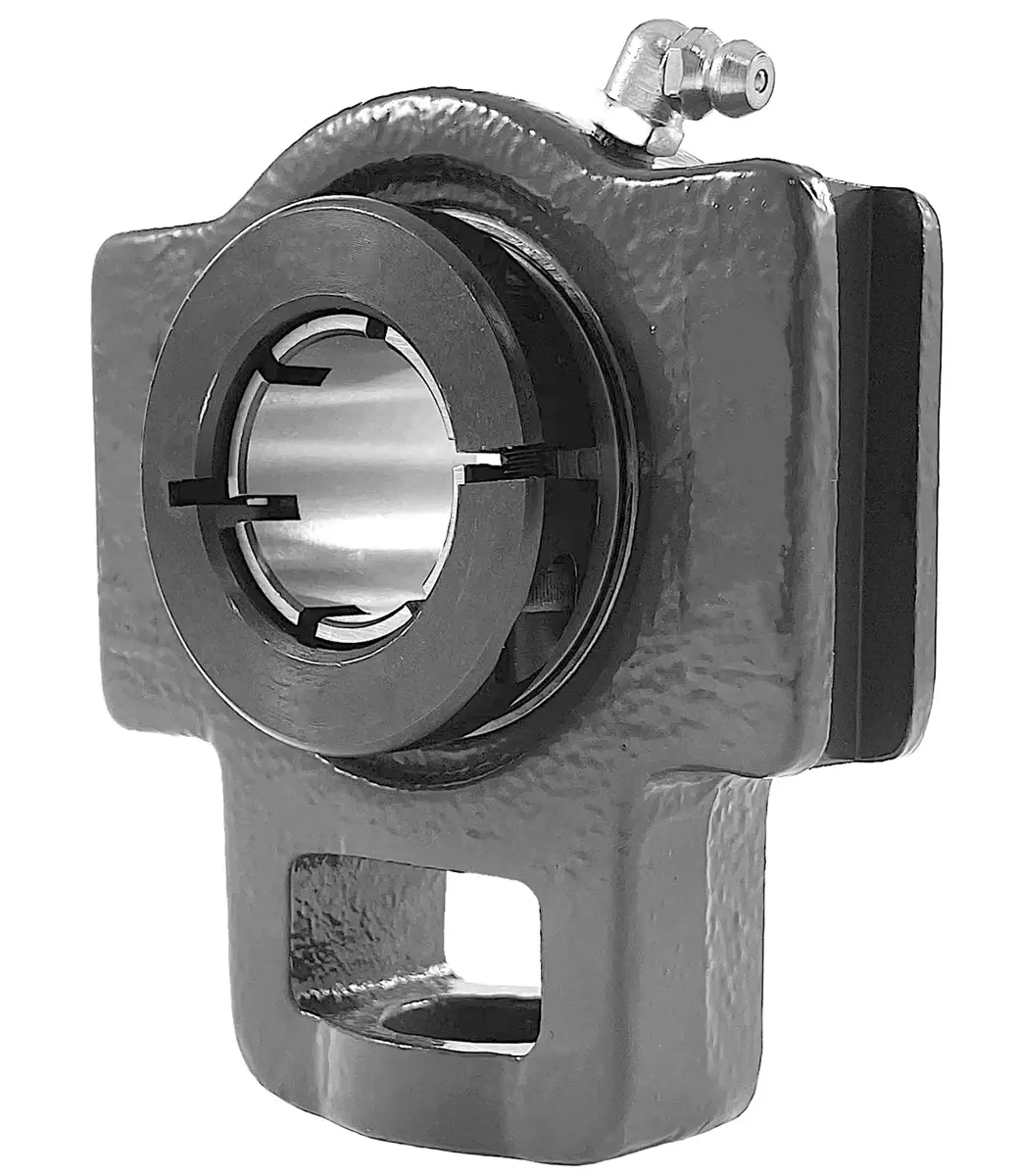

UEST208 Bearing | 40mm Take-Up Bearing

UEST208 bearing is a 40mm bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 40mm shaft. UEST208 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST208 bearings, and we will be happy to assist you!

UEST208 Take-Up Bearing Dimensions

• Part #: UEST 208
• Shaft Diameter (d): 40mm
• Dimension (O): 19.0mm
• Dimension (G): 16.0mm
• Dimension (P): 83.0mm
• Dimension (Q): 49.0mm
• Dimension (S): 29.0mm
• Dimension (B): 83.0mm
• Dimension (K): 17.5mm
• Dimension (E): 101.6mm
• Dimension (A): 114.0mm
• Dimension (W): 144.0mm
• Dimension (J): 49.0mm
• Dimension (L): 33.0mm
• Dimension (H): 89.0mm
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UE 208
• Housing Number: ST 208
• Weight (kg): 2.5
