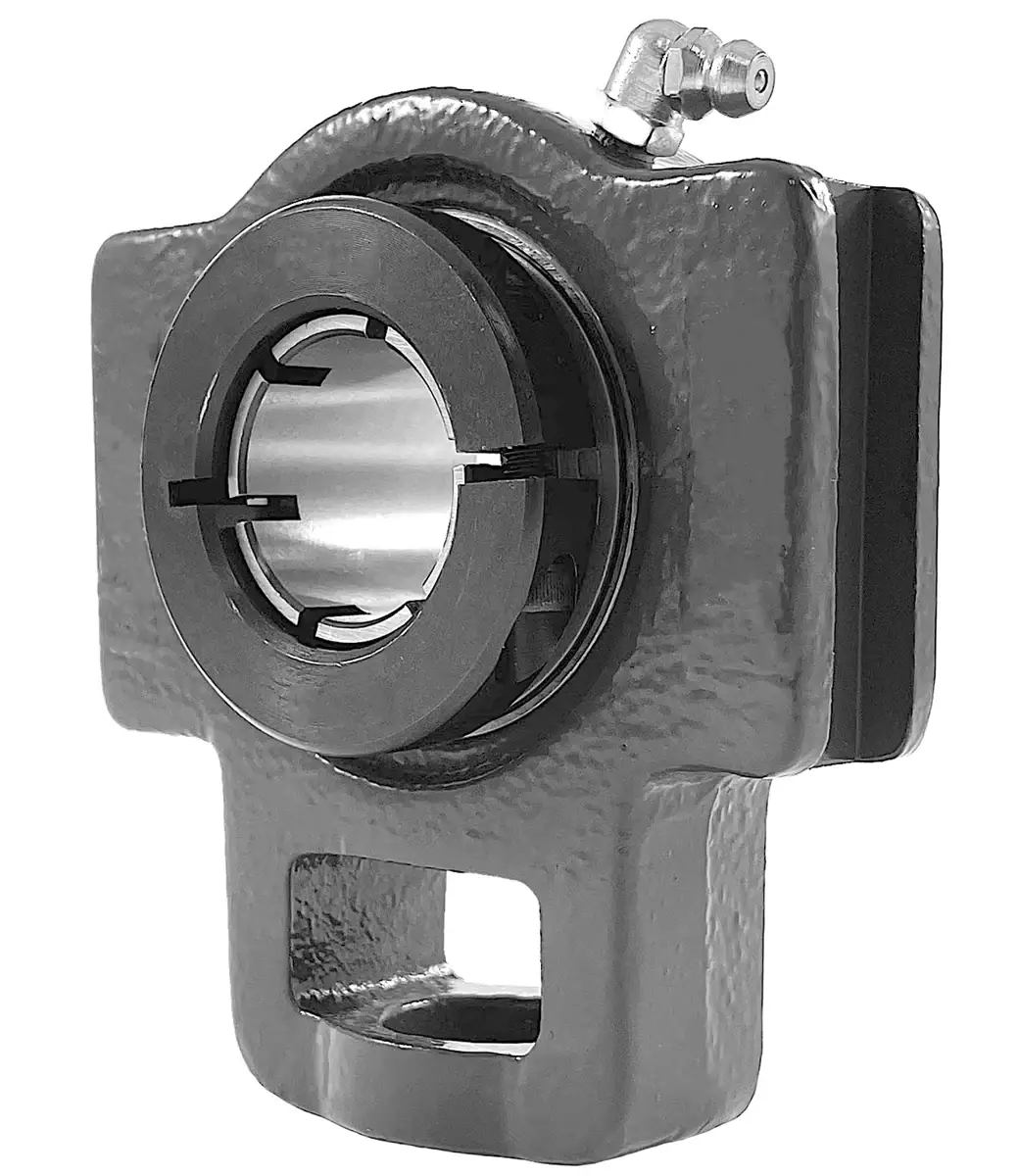

UEST206-18 Bearing | 1-1/8" Take-Up Bearing

UEST206-18 bearing is a 1-1/8" bore normal-duty take-up bearing that utilizes a Tru-Loc device to secure to a 1-1/8" shaft. UEST206-18 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UEST206-18 bearing with a 1-1/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEST206-18 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEST206-18 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEST206-18 bearings, and we will be happy to assist you!

UEST206-18 Take-Up Bearing Dimensions

• Part #: UEST 206-18
• Shaft Diameter (d): 1-1/8"
• Dimension (O): 0.63"
• Dimension (G): 0.39"
• Dimension (P): 2.19"
• Dimension (Q): 1.47"
• Dimension (S): 0.88"
• Dimension (B): 2.25"
• Dimension (K): 0.53"
• Dimension (E): 3.50"
• Dimension (A): 4.00"
• Dimension (W): 4.44"
• Dimension (J): 1.47"
• Dimension (L): 1.13"
• Dimension (H): 2.75"
• Dimension (Bi): 1.5669"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UE 206-18
• Housing Number: ST 206
• Weight (LBS): 2.9
